Specification Desc./Quantity

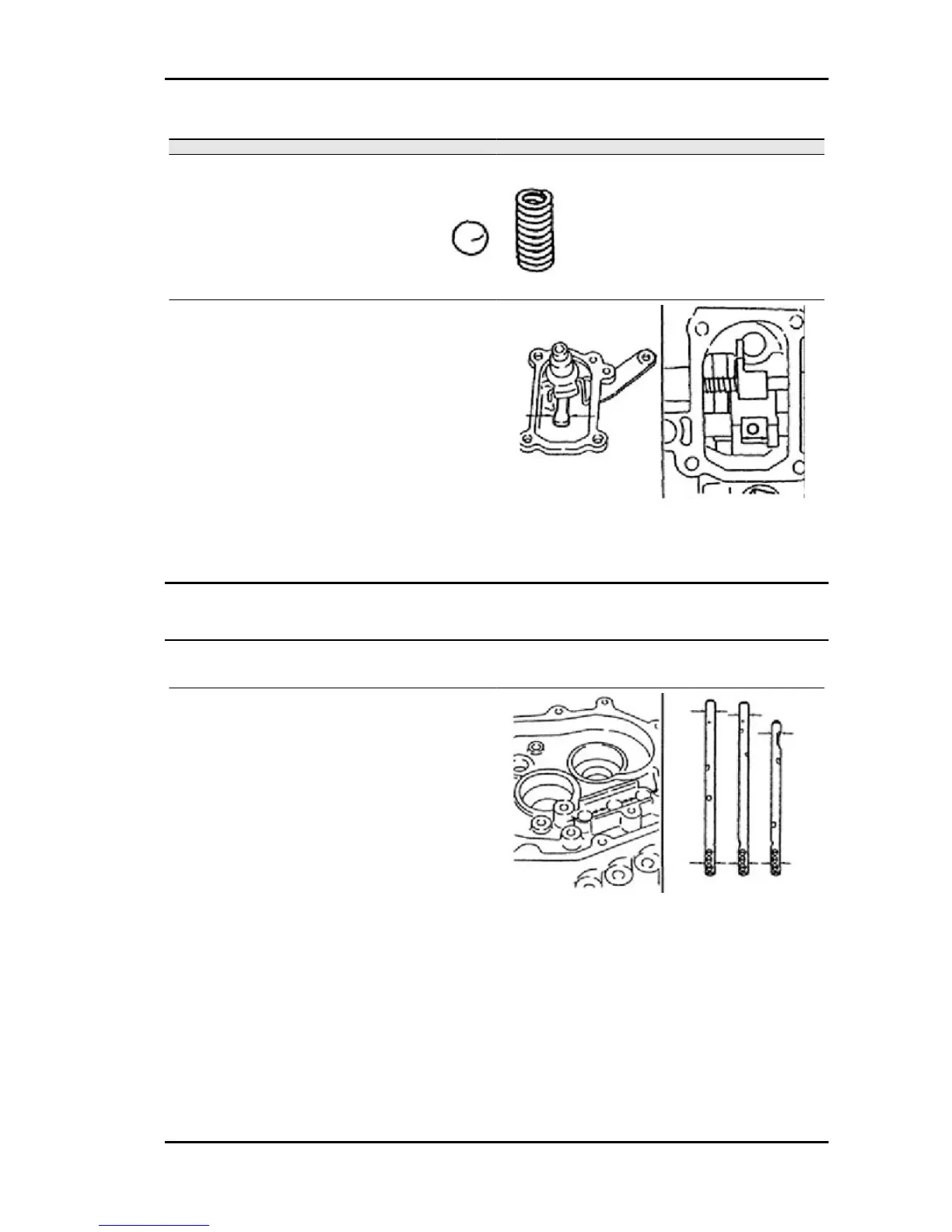

Fitting load (N) for reverse gear limit pin 28.93 N
Fitting height for reverse gear limit pin 17 mm
2. Visually inspect the balls, to detect possible de-
formations or scoring.
3. Measure the length of the contact section be-
tween the selection internal lever shaft and the
gear fork heads.
Characteristic
Selection internal lever
Specified value: 15-0.002 mm-0.12 mm
Internal lever heads
Specified value: 15-0.02 mm-0.1 mm
Gear clutch control
Removal
Forks and heads of the gear
Inspection
1. Measure the outside diameter of the gear con-
trol fork shafts and the inside diameter of the seats.
Characteristic
Seat
Specified value: 13.0 +0.043 mm +0 mm
Shafts
Specified value: 13.0 -0.06 mm -0.07 mm
PORTER 1.3 16V Gear-box
GE - 561
