Differential removal

Removal

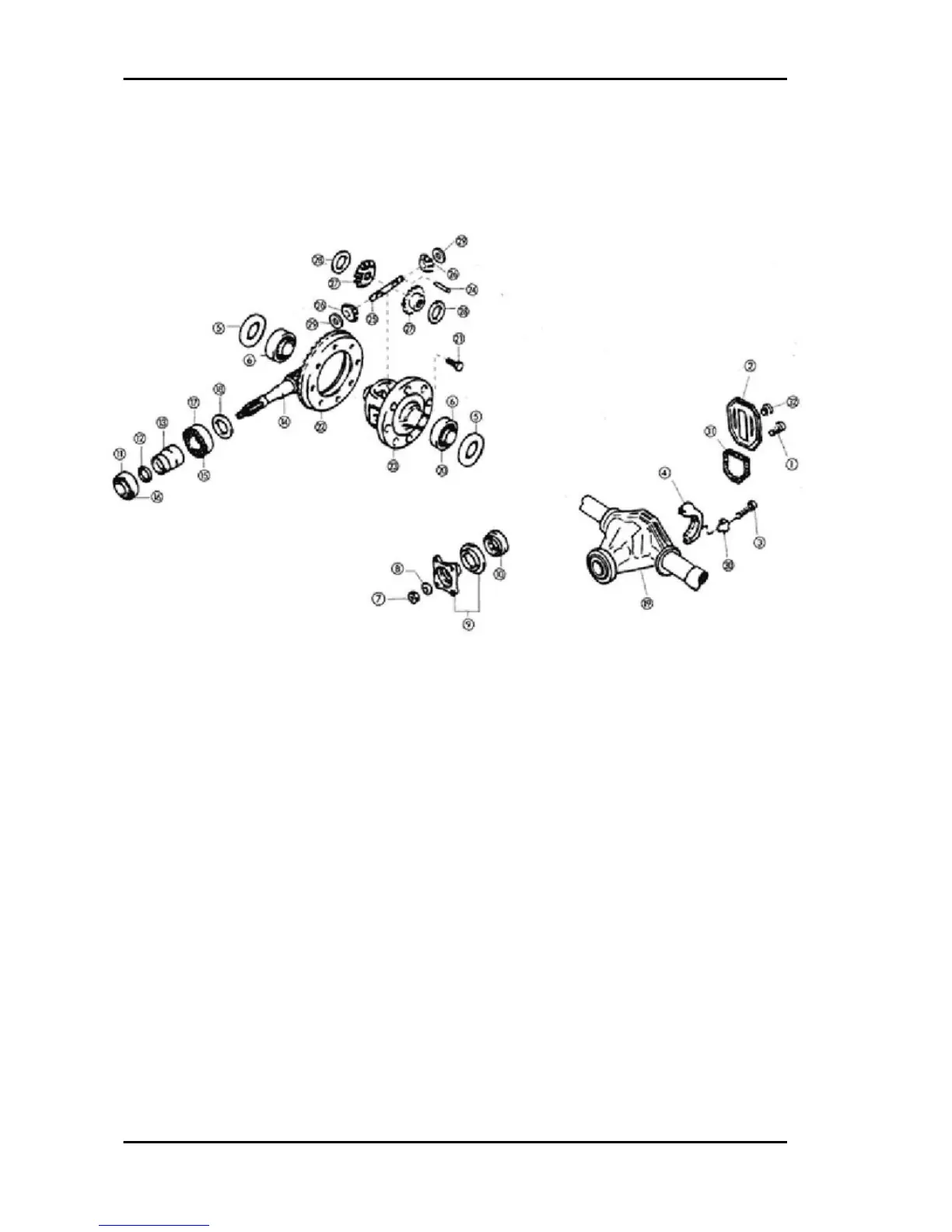

Remove the parts in numerical order, as shown in the figure.

Key

1. Screw

2. Cover

3. Screw

4. Support

5. Spacer

6.Tap roller bearing

7. Nut

8. Washer

9. Pinion connection flange

10. Oil seal

11. Tap roller bearing

12. Spacer

13. Spacer

14. Pinion

15. Tap roller bearing

16. Tap roller bearing

17. Tap roller bearing

Differential PORTER 1.3 16V
