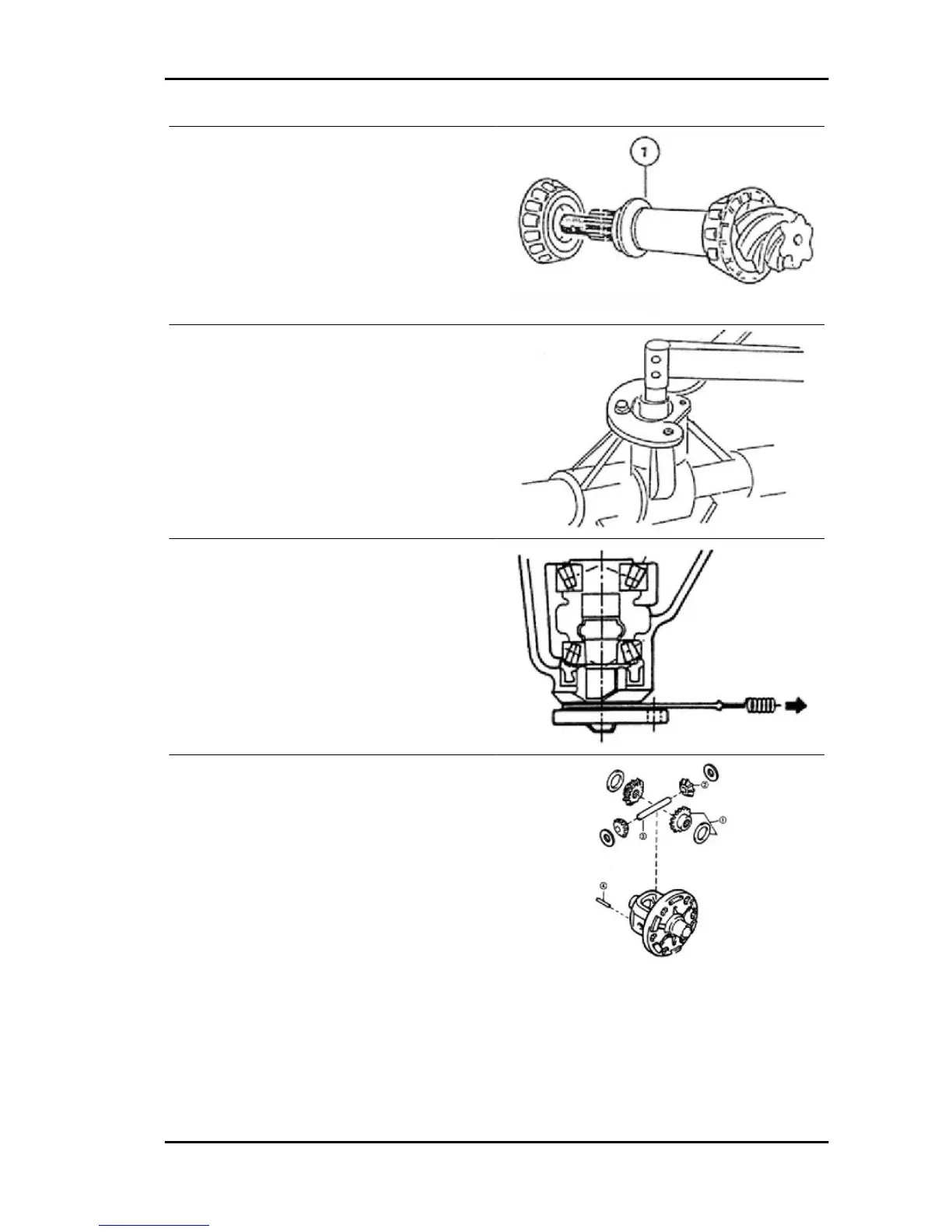

Bearing preloading measurement
1. Fit a new spacer 1 on the pinion.
2. Fit the pinion in the relevant seat on the differ-
ential support.
3. Fit the front bearing, the oil seal, the flange, the
gasket and the flat washer.
4. Tighten the nut to obtain the pre-set preloading
value.
- APPLY OIL ONTO THE NUT AND TO THE THREADED
PART OF THE CONTROL PINION.
- UPON FITTING, TURN THE PINION IN BOTH DIRECTIONS
MANY TIMES, TO FACILITATE THE BEDDING OF BEAR-
INGS.
5. Pinion preloading check
Value measured with the tool fitted on the flange
shank.
The preloading resistance measured on the bench
is: 10.3 - 14.2 N.
Characteristic
Specification preloading:
1.03 -1.42 Nm
Differential housing fitting
1. Fit the differential housing by following the pro-
cedure indicated below.
Key
1. Differential and side pinion gear
2. Differential and crown wheel
3. Crown wheel shaft
4. Pin
2. When the differential housing is completely assembled, fit the parts listed below:
PORTER 1.3 16V Differential
DI - 605
