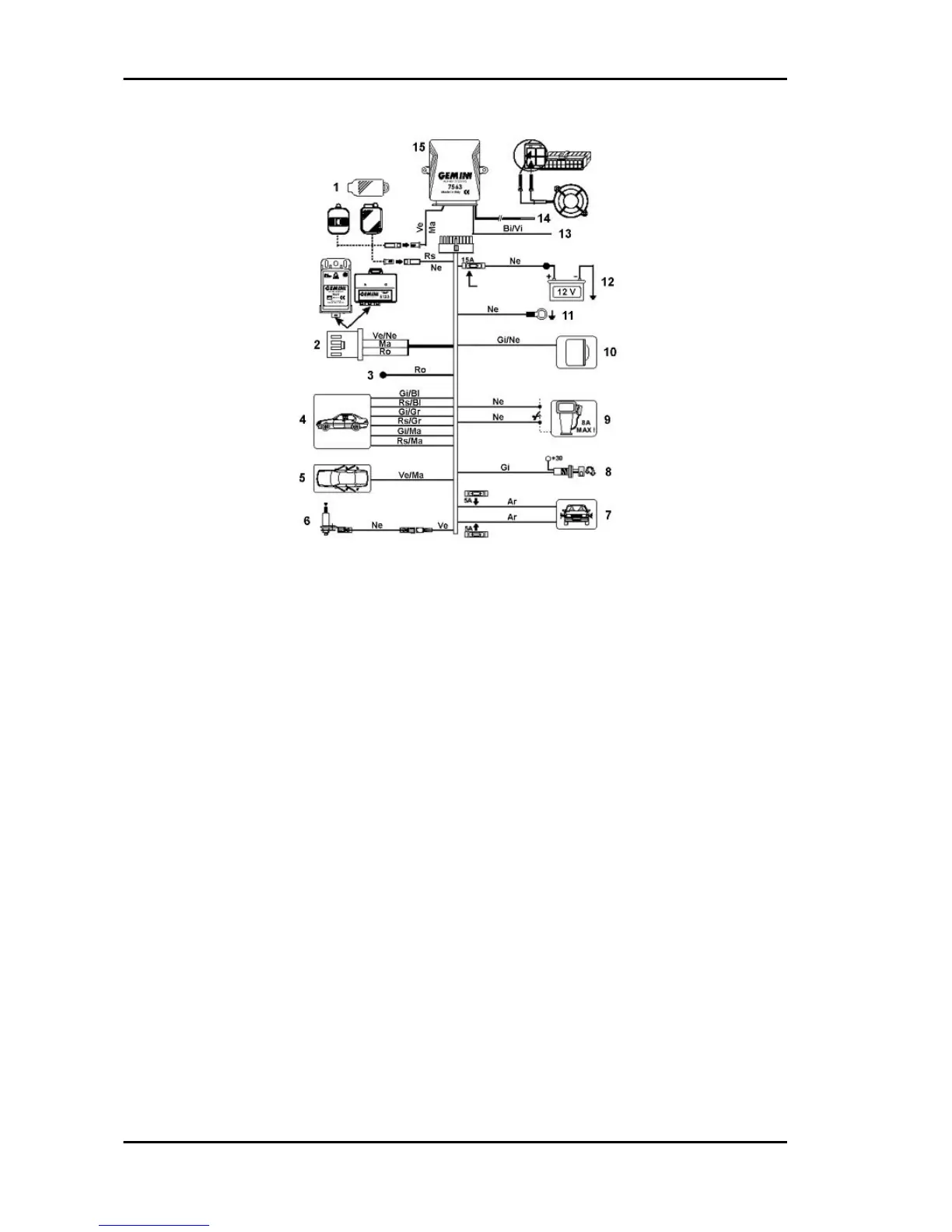

ALARM AND CENTRAL LOCKING
1. Emergency key
2. Super-high frequency module
3. Alarm positive activated
4. To the central locking
5. To the door and case switches
6. To the bonnet switch
7. To the turn indicators
8. To the switch
9. To the engine block device (Only for models 7563 and 7562)
10. Additional or self-powered siren (Only for models 7563 and 7562)
11. Ground
12. Battery (Only for models 7563 and 7562)
13. To the tone wheel
14.Aerial
15. Control unit
Electrical connections
•
In vehicles equipped with catalytic converter, carry out the engine locking on the fuel pump.
•
Connect the power supply positive of the system 7563 to vehicle battery positive pole or to
its shunt.
•
Connect the power supply negative of the system 7563 to the vehicle metal frame.
