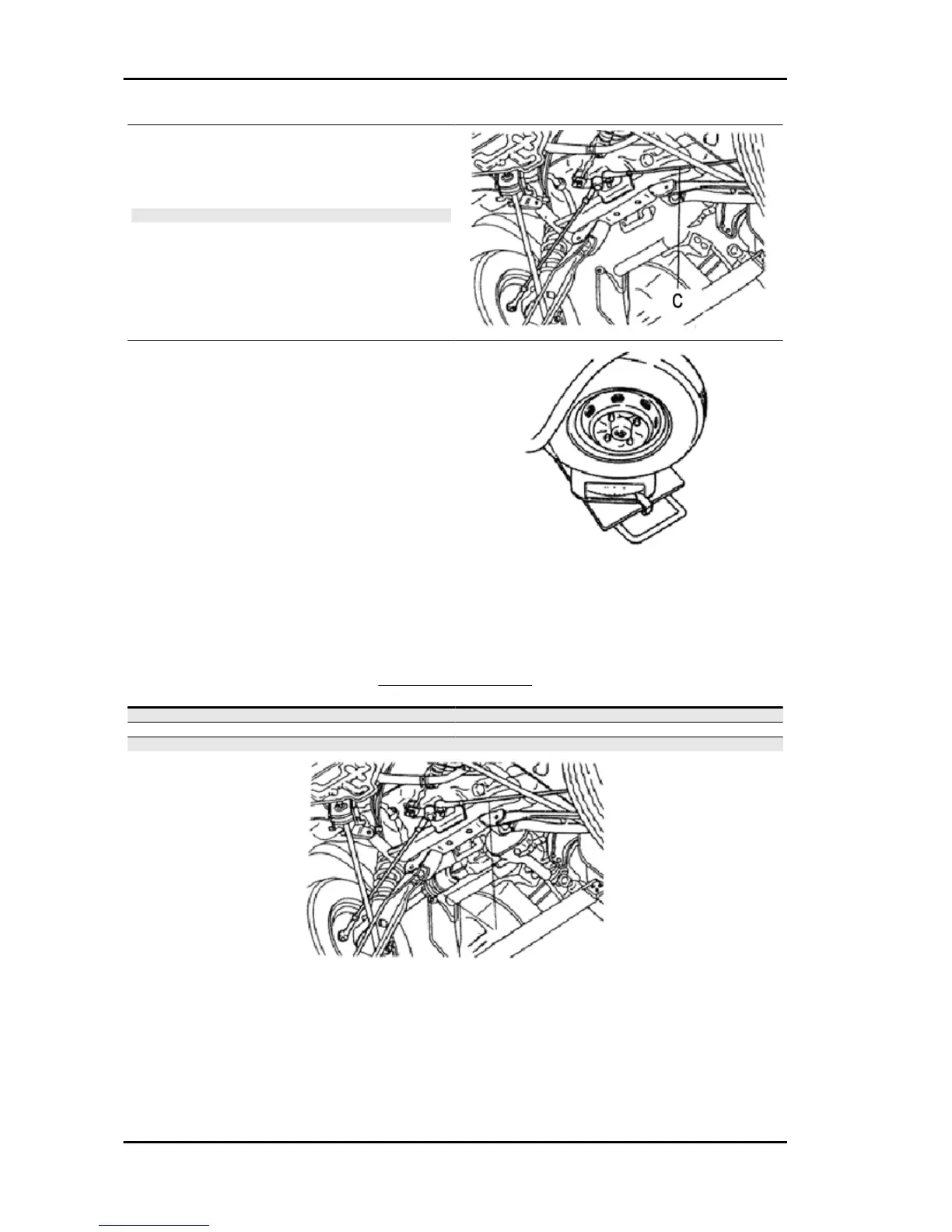

5. If the toe-in value is not within the prescribed
specifications, loosen the lock nuts of the arm
head. Perform adjustment on tie rods C.
N.B.
ADJUSTMENT SHOULD BE SO THAT THE LENGTH OF
THE RIGHT SIDE CABLE AND THE LEFT SIDE CABLE ARE
IDENTICAL.
6. Take the turning radius gauge to «0» degrees.
Straighten the wheels and check the steering an-
gle as follows:
a. Turn the steering all the way towards the right
and left respectively.
Read the turning radius gauge scale on the right
and left sides.
MAKE SURE THAT WHEELS DO NOT INTERFERE WITH
THE BODY DURING ROTATION.
b. Check the tyre steering angles when the steering wheel is turned all the way towards the right and
left respectively.
IF THE LEFT TIE ROD LENGTH IS INCREASED BY TWO TURNS, DECREASE THE RIGHT TIE
ROD LENGTH BY TWO TURNS TO MAKE SURE THAT THE TOE-IN IS THE SAME .
STEERING ANGLES
Specification
Desc./Quantity
Inside: 36°
Outside: 34.8°
Tolerance between right and left sides: 3°
Front wheel alignment check
The suspension is of reinforced type, the components have a significant rigidity and the distance be-
tween lower and upper support points is prominent.
The front wheel alignment remains unchanged, unless the vehicle suffers sudden accidents.
However, if the front wheels are misaligned due to an abnormal tyre wear, an incorrect driving or due
to other causes, restore correct alignment.
Steering column PORTER 1.3 16V
SC - 684
