Cruscotto

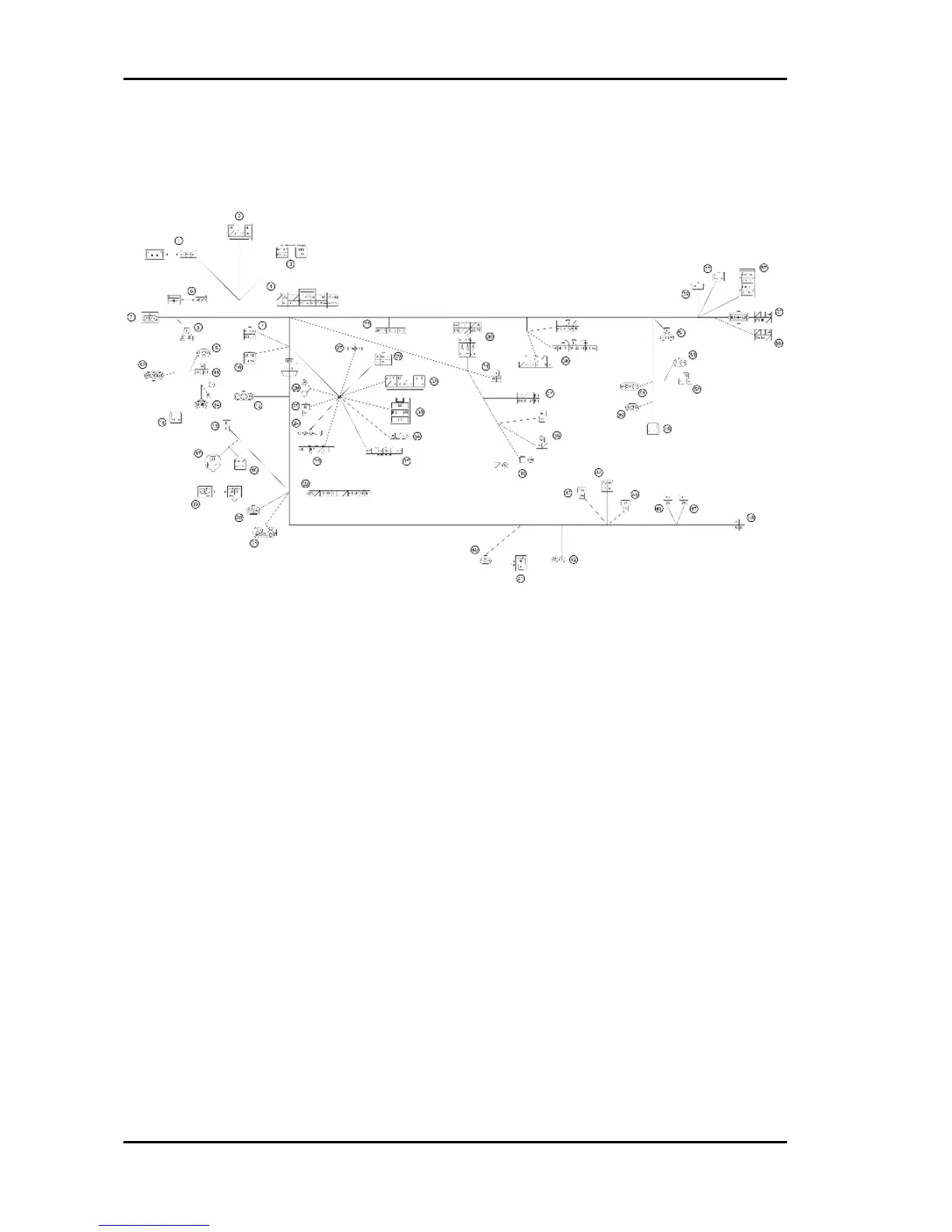

INSTRUMENT PANEL CABLES

RIGHT HAND DRIVE INSTRUMENT PANEL:

1 Diode

2 To the injection cable harness

3 EFI fuses No. 1 - No. 2

4 EFI ECU

5 Diode

6 To the courtesy light cable harness

7 Diagnostic check

8 Front left chassis ground

9 Front left position light

10 radiator cooling electric fan motor

11 Left headlight

12 Left headlight adjustment actuator

13 Horn

14 Left fog light

15 windshield washer motor

16 Front left /side turn indicator

Electrical system PORTER 1.3 16V

ES - 190
