P/N 90045-20285 (No colour) Thickness: 1.82 mm
P/N 90045-20286 (Brown) Thickness: 1.78 mm

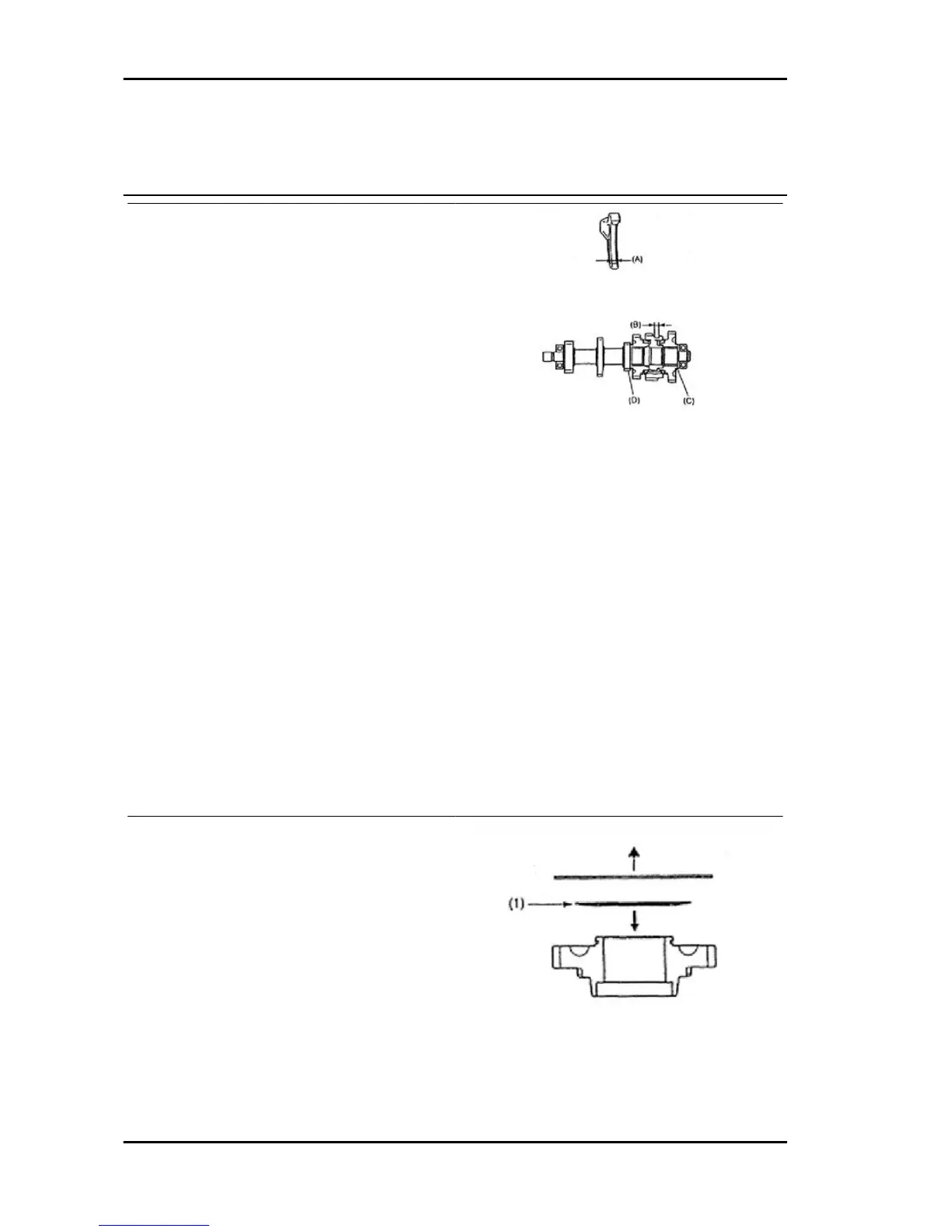

Secondary shaft - inspection before removal
1. Measure the length of the contact section of the
hub assembly of synchroniser No. 1 (B) and of the
first and second gear control fork (A)
Characteristic
(A)
Specification value: 10 -0.1 mm -0.3 mm
(A)
Admissible limit: 9.6 mm
(B)
Specification value: 10 +0.12 mm +0.05 mm
(B)
Admissible limit: 10.2 mm
2. Measure and adjust the axial clearance of the 1st gear (C) and of the 2nd gear (D), as shown in the
figure.
- BEFORE STARTING REMOVAL, MAKE SURE OF MEASURING THE AXIAL CLEARANCE AT
DIFFERENT POINTS.
- IF THE AXIAL CLEARANCE MEASURED EXCEEDS THE SPECIFIED VALUE IN THE TABLE
BELOW, REMOVE THE SECONDARY SHAFT.
Characteristic
1st gear (C)
Specified value: 0.10 - 0.52 mm
2nd gear (D)
Specified value: 0.10 ± 0.40 mm
Inspection - 2
1. Measure the height of the conical spring washer.
2. Place the new conical spring washer 1, the sub-
gear on the 1st gear.
3. Make sure that the convex side of the conical
spring washer is facing towards the sub-gear, as
shown in the figure.
Characteristic
Specification value:
2.01 mm
Admissible limit:
Gear-box PORTER 1.3 16V
GE - 586
