Descrizione del sistema

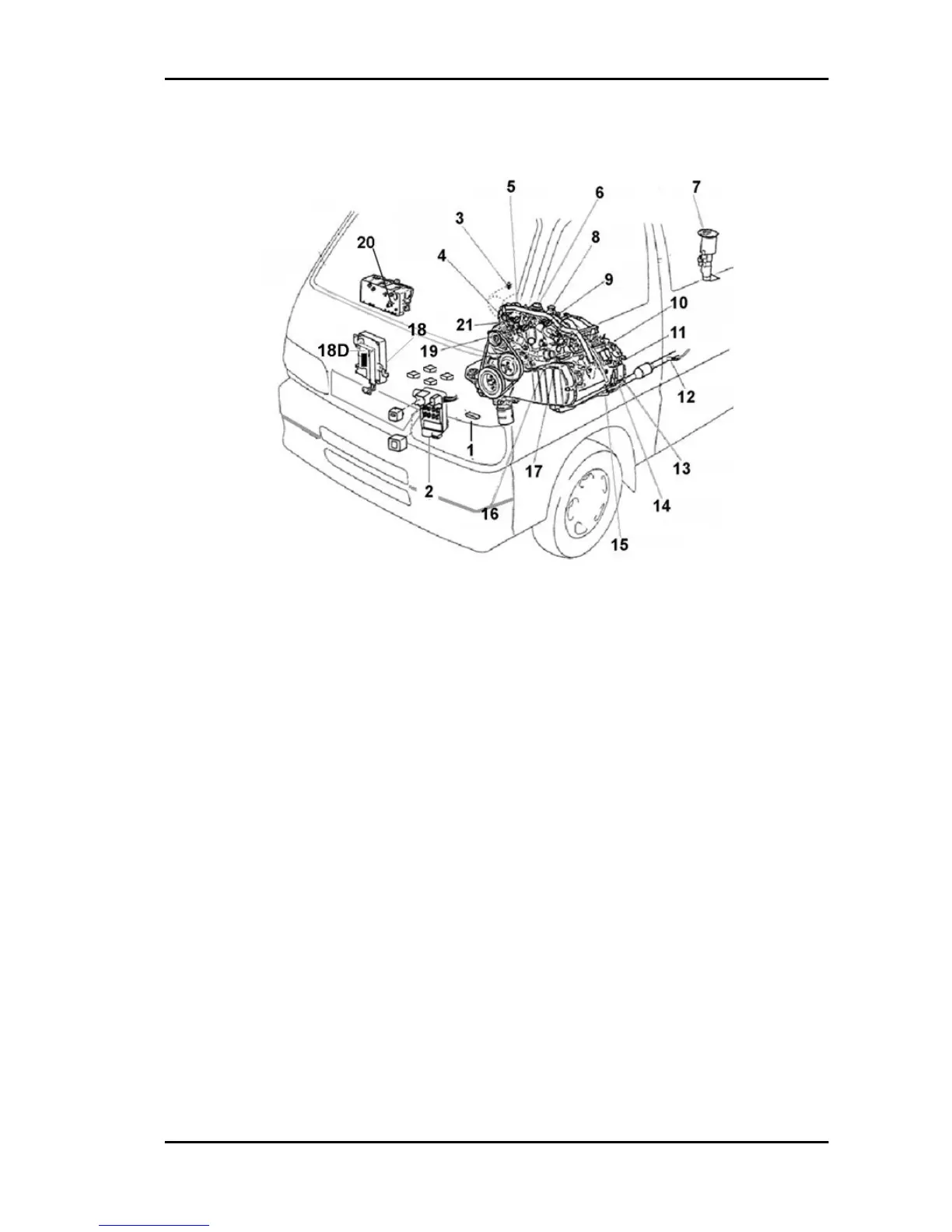

COMPONENT LOCATION (EU SPECIFICATIONS)
1. Data link connector between the ECU and the Diagnostic tester (DLC ). 2. Remote control unit (fuel
pump, main ECU, etc...) 3. Intake air temperature sensor(IAT) 4. Throttle valve position sensor (TPS)
5. Manifold absolute pressure sensor (MAP) 6. EGR valve 7. Fuel pump 8. EGR vacuum modulator
9. Vacuum switching valve for EGR valve(VSV 1) 10. Engine coolant temperature sensor (ECT) 11.
Engine revolution sensor (RPM) 12. Rear oxygen sensor (OX2 lambda probe) 13. Ignition unit 14.
Ignition coil 15. Front oxygen sensor (OX1 lambda probe) 16. Fuel pressure regulator 17. Injector
18. Electronic injection control unit (ECU EFI - DENSO) 18 D. Emission control unit (ECU - DRACO)
19. Vacuum switching valve to increase idle speed(VSV 2) 20. vehicle speed sensor in the instrument
panel 21. Vacuum switching valve for recovery of fuel vapours (VSV )
PORTER 1.3 16V Iniection System
IS - 385
