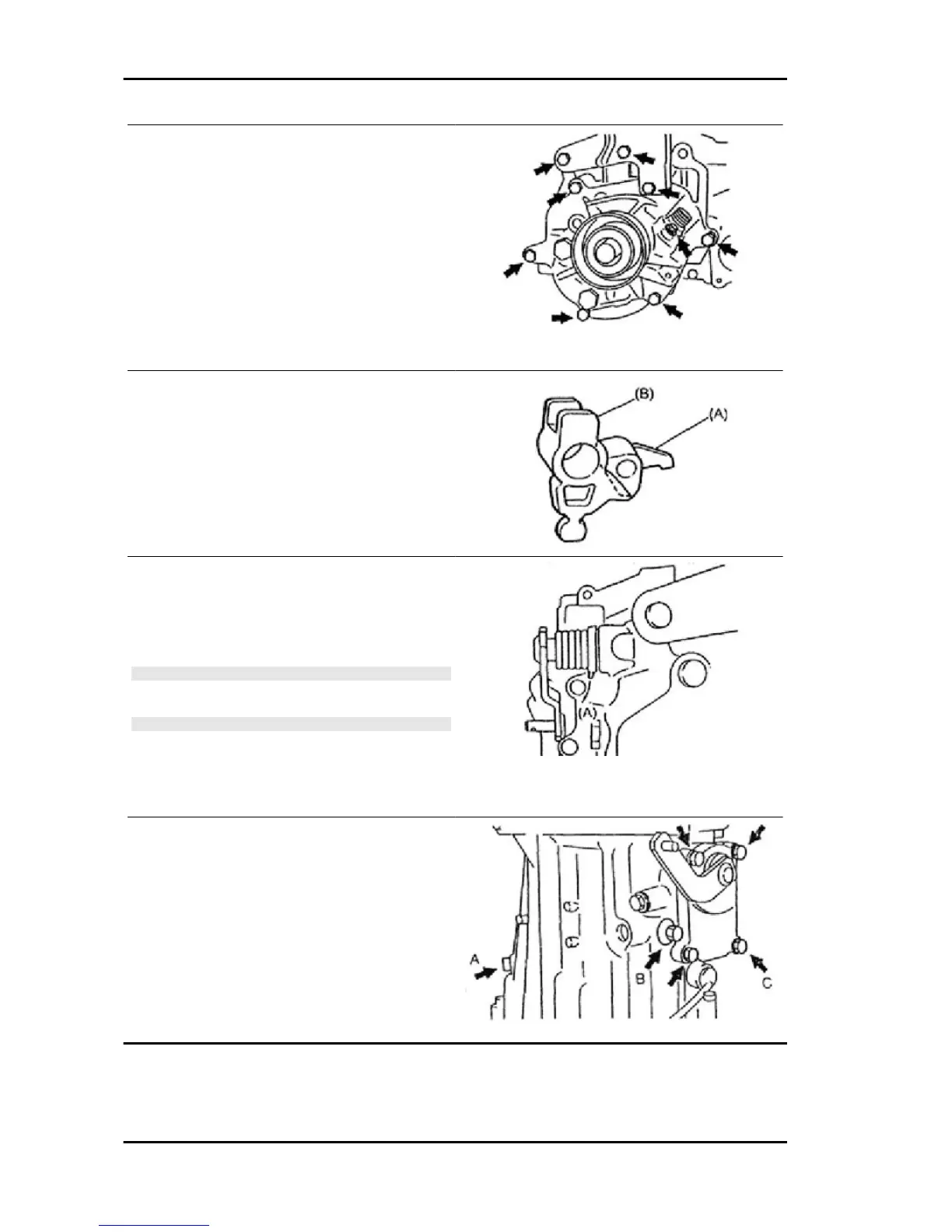

11. Fit the gear cover with the engine rear fitting
bracket quickly. Then, lock it with the eight bolts.
12. Fit the rpm indicator gear assembly.
13. Tighten the plate locking the rpm indicator gear
with the bolt.
14. Fit the clutch components.
Locking torques (N*m)
Engine fitting rear bracket for gearbox cover 29
÷ 44 Nm Rpm indicator locking plate - Gearbox
cover 7 ÷ 10
15. Fit the reverse gear limit cam (A) and the gear-
shift lever (B) as shown in the figure.
- MAKE SURE THAT THE LIMIT CAM OF THE REVERSE
GEAR IS FITTED PROPERLY. FAILURE TO OBSERVE THIS
WARNING CAN CAUSE THE REVERSE GEAR DISEN-
GAGEMENT.
16. Fit the gear lever sleeve and the gearshift lever
shaft properly, as shown in the figure.
17. Tighten the subassembly of the selection lever
shaft with the four bolts, after fitting a new gasket.
N.B.
- MAKE SURE THAT THE AIR BLEEDING SECTION A OF
THE SLEEVE, IS FACING DOWNWARDS.
N.B.
- MAKE SURE THAT THE GUIDE BOLT «C» IS PLACED AS
SHOWN IN THE FIGURE.
Locking torques (N*m)
gear selection lever 15 - 22 Nm
18. Fit the ball and the compression spring, and
tighten the reverse gear limit pin locking «B» with
a new gasket by interposing it.
19. Make sure that the selection lever and the
gears move without jamming.
Locking torques (N*m)
Reverse limiting pin lock - Gearbox 29 ÷ 49
Fitting the gear assembly on the vehicle
1. While holding the gearbox assembly with a suitable jack, or anything equivalent, fit it to the vehicle
and tighten the connection bolts.
Gear-box PORTER 1.3 16V
GE - 592
