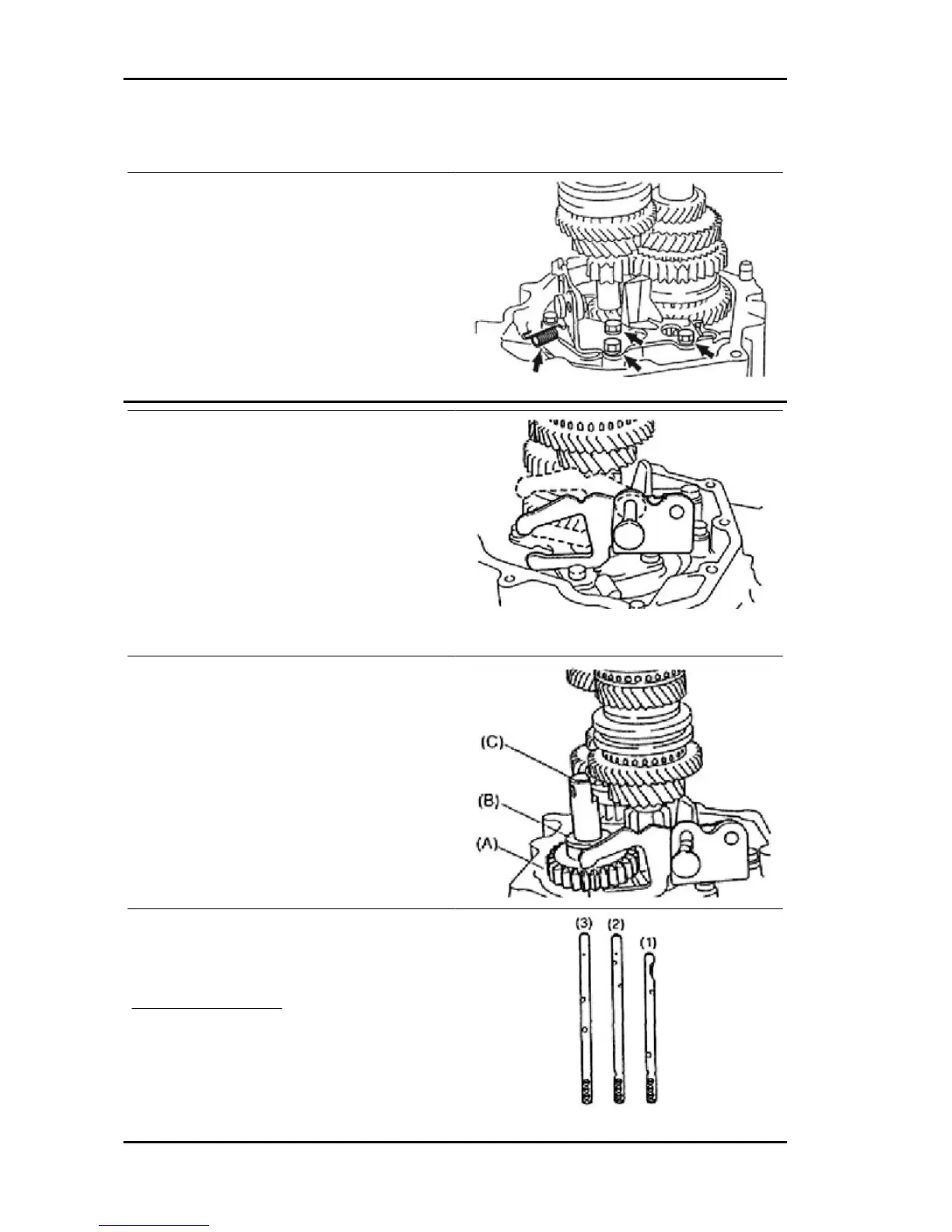

Locking torques (N*m)
Rear bearing lock - Gearbox 15÷22
5. Attach the tension spring to the plate locking the
input shaft bearing.
6. Tighten the reverse gear control lever with three
bolts.
Locking torques (N*m)
Reverse lever - Gearbox 15÷22
Checking that the reverse gear control lever
moves freely
1.Checking that the reverse gear control lever
moves freely
•
Lift the reverse gear control lever pin
with the fingers.
•
Make sure that the reverse gear control
lever pin falls freely due to its weight,
when released.
2. Fit the reverse transmission gear A , shaft C and
the thrust washer B as shown in the figure.
- DURING THE FITTING PHASE, INSTALL THE LOCKING
PIN, WHICH PREVENTS THE TRANSMISSION GEAR
SHAFT ROTATION FROM THE CLUTCH HOUSING SEC-
TION TO THE GROOVED SECTION.
- MAKE SURE THAT THE CHAMFERED SIDE OF THE
GEAR AND THE THRUST WASHER (NYLON) IS FACING
UPWARDS (OR THE REAR SIDE).
3. The following three shafts of the gear control
fork, are different from each other by length, as
shown in the figure on the right. +
GEAR FORK SHAFTS
Shaft No.. 1: 1st and 2nd - total length: 224.00 mm
Shaft No.. 2: 3rd and 4th - total length: 259.00 mm
Shaft No.. 3: 5th and reverse gear - total length:
265.00 mm
Gear-box PORTER 1.3 16V
GE - 588
