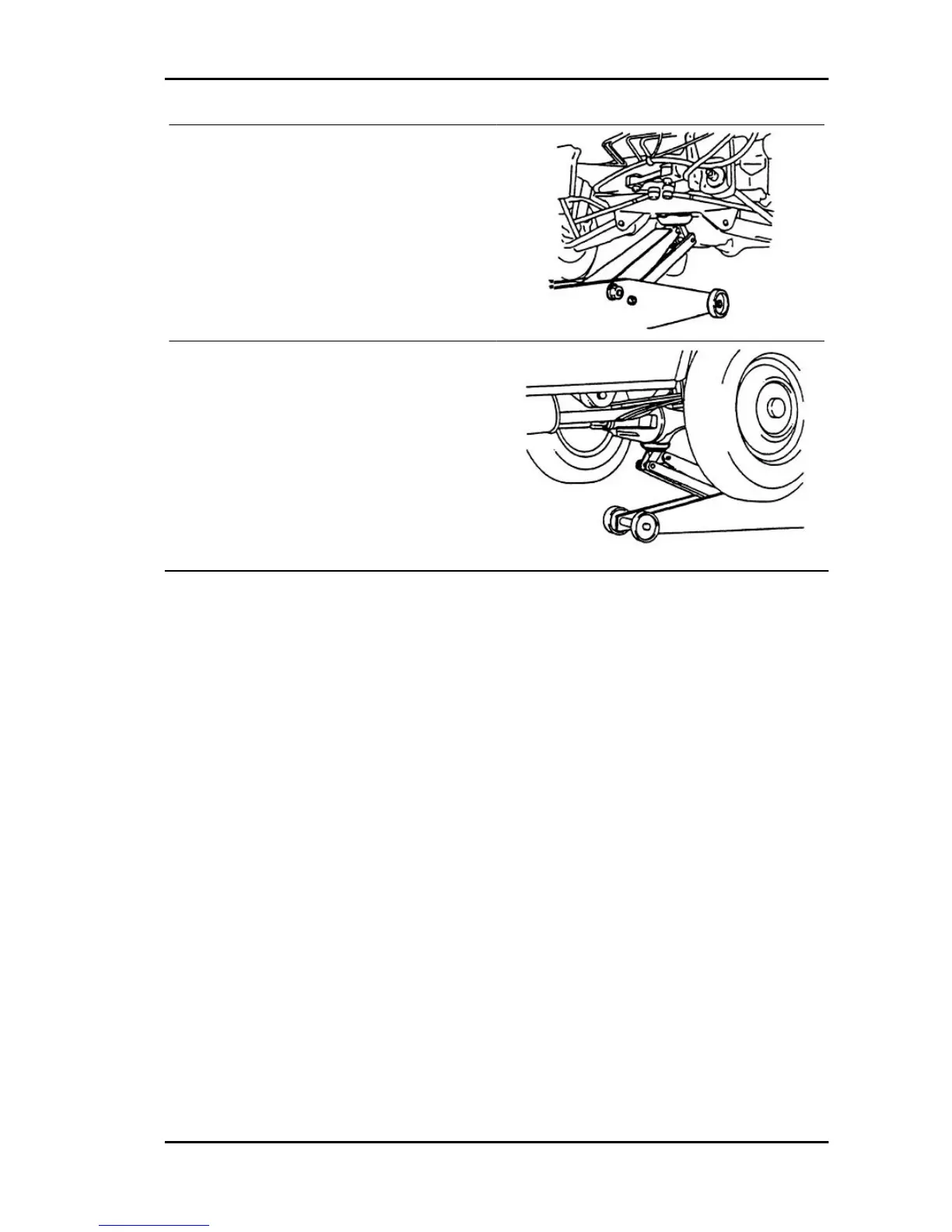

Support points for jack
Front part
Place the jack on the cross-member of the front
suspension.
Rear part
Place the jack under the differential.
Maintenance guidelines
5. LOCKING TORQUE
For operations which require locking torque check, the relevant value is indicated in bold type. Make
sure to check the relevant locking torque.
3. SPECIAL TOOLS
The code of special tools necessary for individual operations is indicated in bold type.
4. MAINTENANCE PROCEDURE
The maintenance specifications are indicated in bold type or underlined. Make sure to check the relevant
specifications.
DESCRIPTION OF MANUAL USE
1. COMPONENT SKETCH
•
The component sketch shown at the beginning of each section describes the nomenclature
and the fitting conditions of each individual component.
•
Those parts marked with ( * ) can not be reused. Be careful to replace these parts with new
components during the assembly.
•
During the assembly, lubricate the parts marked in the figure.
(Example)
PORTER 1.3 16V General guidelines
N GEN - 13
