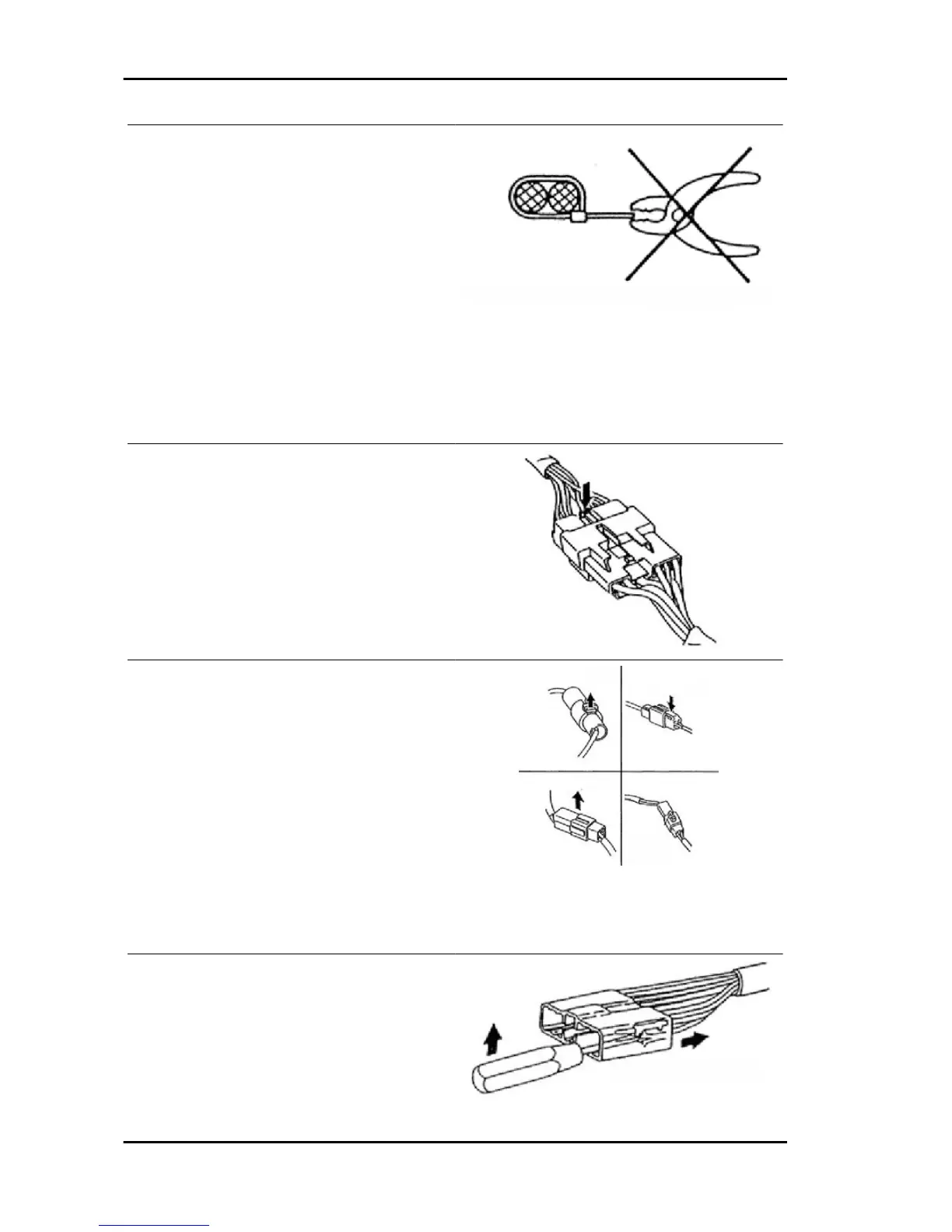

Using resin clamps
When using resin clamps, do not use pliers or sim-
ilar tools, as improper use could damage or cut
them.
CABLE HARNESS
- THE DIMENSION AND CAPACITY OF EACH CABLE ARE SPECIFIC TO GUARANTEE THE
PROPER OPERATION OF THE ELECTRICAL SYSTEM.
- THEREFORE, DO NOT POWER OTHER POSSIBLE ACCESSORIES USING THE EXISTING CA-
BLE HARNESS. FAILURE TO OBSERVE THIS PRECAUTION MAY CAUSE A SYSTEM MALFUNC-
TION AND ALSO FIRE HAZARD.
Disconnection of connectors with safety lock
- Press the locking lever, as shown in the figure,
then pull the connector. Do not pull the cable har-
ness, otherwise the terminals could come out of
their seats.
The locking connector can be the following types
of connector: a push-piece opening, traction open-
ing, spring closing, one-way closing mechanism
and so on.
Once the type of locking has been identified, open
the lock. Disconnect the connector holding it.
- NEVER PULL THE CABLE HARNESS WHILE DISCON-
NECTING.
- MAKE SURE TO TAKE OUT THE CONNECTOR IN AN UP-
RIGHT POSITION SO AS NOT TO DAMAGE THE TERMI-
NAL.
2. Connection.
Connect the male connector to the female connector. Make sure that the lock is completely disengaged.
3. Terminal removal.
Terminal with bayonet lock
Insert a small screwdriver (B) inside the connector
opening between the terminal and the locking lev-
er. Lever on the locking lever (A) and take out the
terminal.
General guidelines PORTER 1.3 16V
