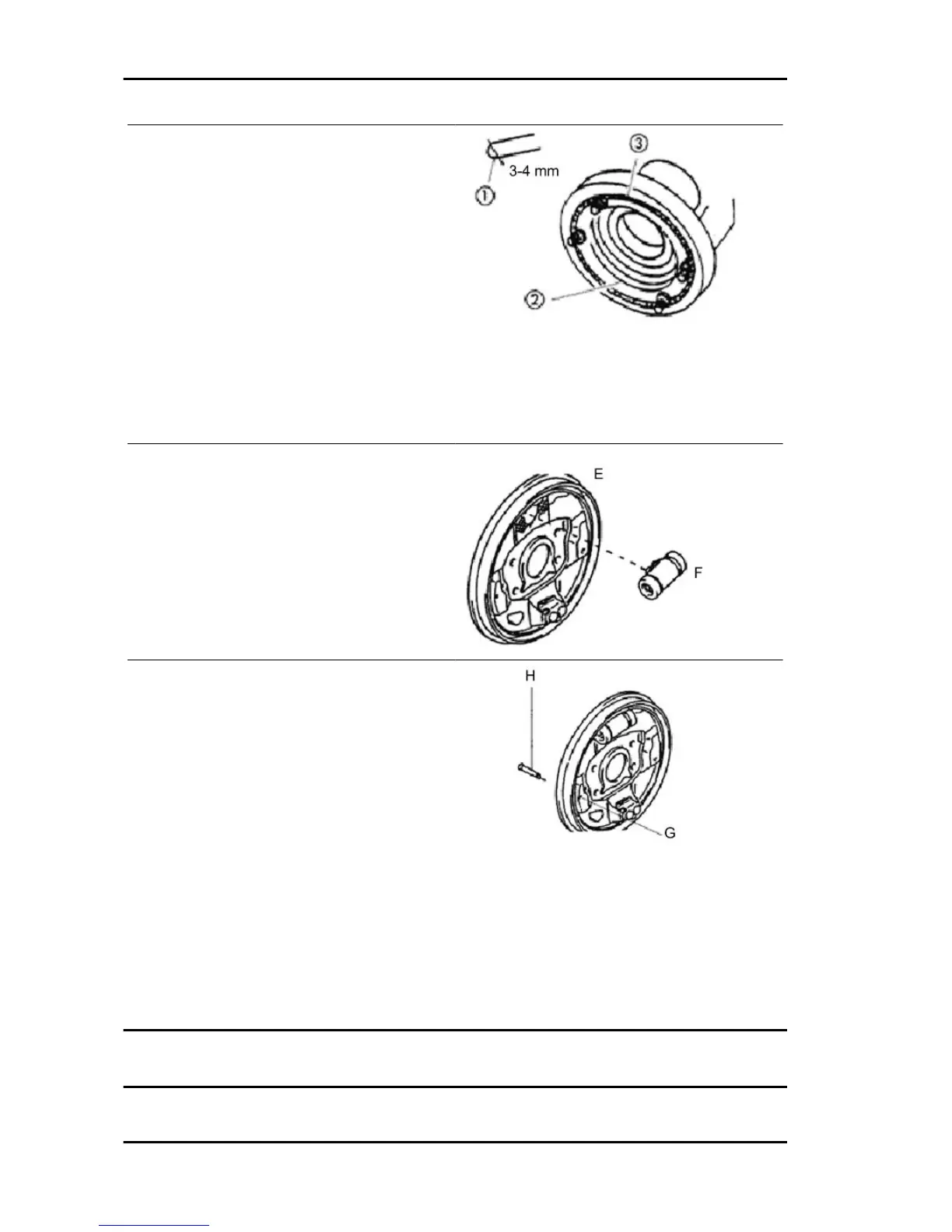

2. Apply the recommended product at the end of
the rear axle shaft seat as indicated in the figure
on the right. Then, fit the shoe holding plate on the
rear axle shaft.
Recommended products
Three Bond N.1212 silicone sealant
-
KEY:
1. Section view of the silicon sealant
2. Sealant
3. Apply the piston ring onto the internal edge
3. Apply liquid sealant (recommended product)
onto the fitting area E of the wheel cylinder F on
the shoe holding plate, as indicated.
Recommended products
Three Bond 520 sealing compound
-
4. Apply liquid sealant (recommended product)
onto the fitting area H of the shoe retaining pin G
on the shoe holding plate, as indicated.
Recommended products
Three Bond 520 sealing compound
-
5. Brake adjustment procedure.
•
Push the brake pedal four or five times (after bleeding the air).
•
Make sure that the automatic adjustment mechanism works properly.
•
Adjust the brake pedal height.
•
Adjust the working travel of the parking brake lever.
Parking brake lever
Braking system PORTER 1.3 16V
BS - 634
