Smontaggio - Montaggio martinetto idraulico
Hydraulic jack fitting
For fitting, follow the removal operations but in re-
verse order. Observe the correct tightening torque.
Locking torques (N*m)
hydraulic jack retainer for chassis 74 - 88 Nm
Fasten the oil fitting coming from the pump, to the
hydraulic piston, by fitting the two copper gaskets,
while respecting the tightening torque.
Locking torques (N*m)
oil fitting 29 - 39 Nm
Hydraulic jack removal
To carry out this operation, first detach the jack
from the tipper.

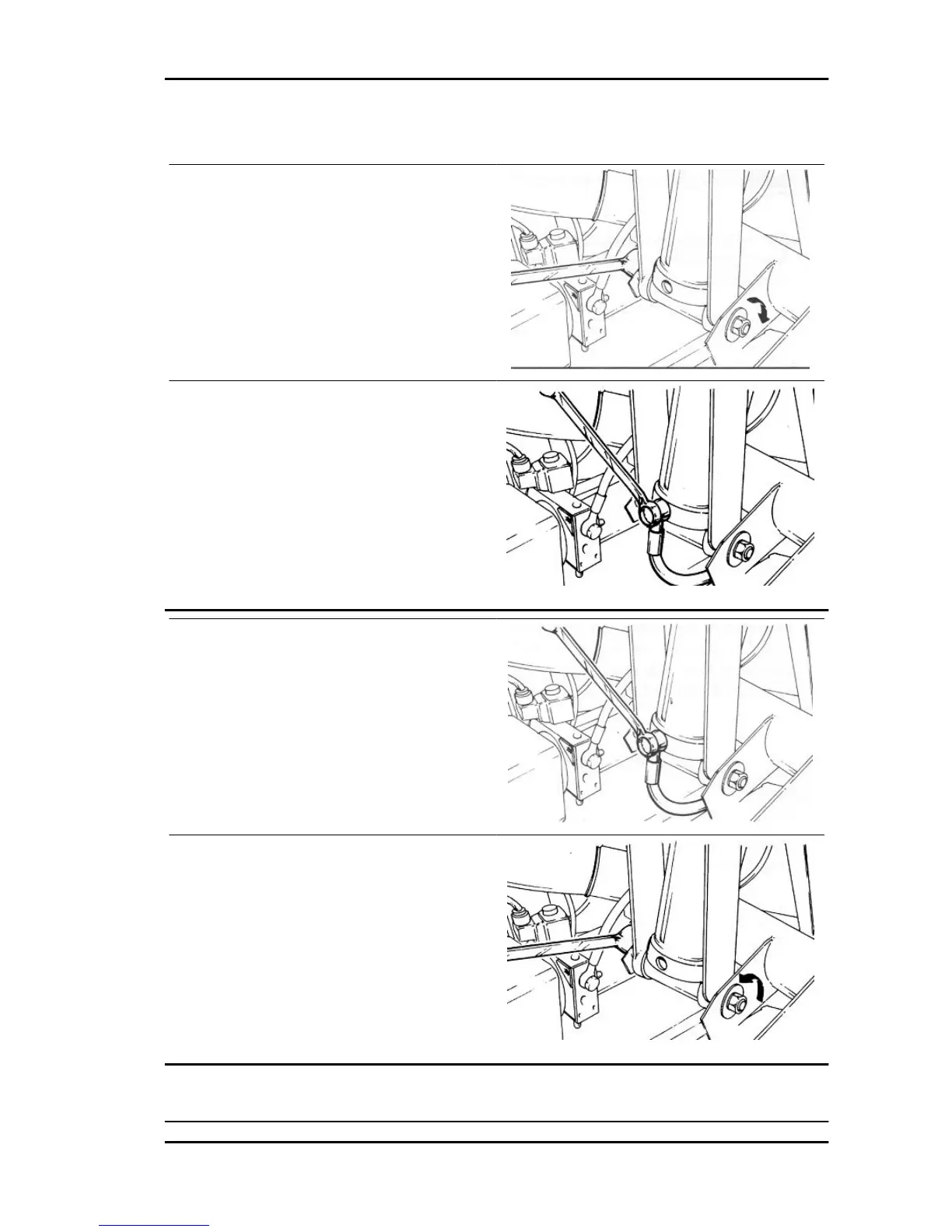

Remove the screw fixing the oil fitting to the piston
as shown in the figure, taking the necessary pre-
cautions against oil leakage that will occur.
Remove the bolt fixing the jack assembly to the
vehicle chassis, then remove the whole lifting de-
vice.
Pompa idraulica e motore elettrico
PORTER 1.3 16V Tipper version
VR - 731
