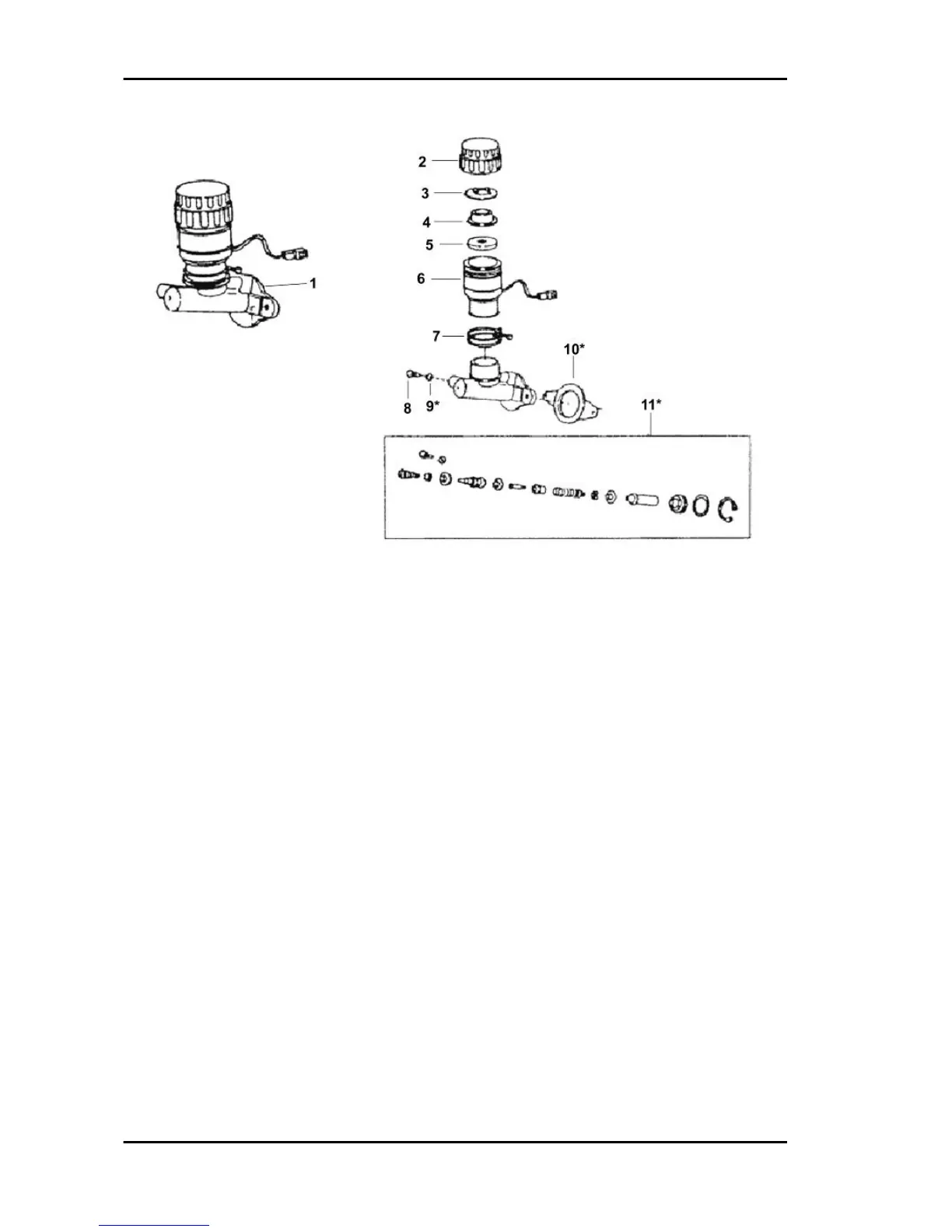

1. Brake main cylinder unit 2. Reservoir cap 3. Reservoir cap spacer 4. Reservoir diaphragm 5. Float
switch 6. Main cylinder reservoir subassembly 7. Clamp 8. Fixing bolt 9. Gasket 10. Gasket 11. Main
cylinder repair kit *: Non-reusable parts
2. MAINTENANCE PROCEDURE
- As a rule, the maintenance procedure is described in the following sequence:
•
removal
•
inspection
•
fitting and removal
•
inspection
•
assembly
- The explanation indicates the detailed maintenance procedure, specifications and notes.
- The main point of each item describes the section about maintenance and relevant procedure, with
the aid of illustrations.
General guidelines PORTER 1.3 16V
N GEN - 14
