Cylinder head - Exhaust manifold 35 ÷ 53 Ex-
haust manifold for oxygen sensor 29.4 ÷ 39.2 Nm
Exhaust manifold - Front exhaust pipe 42÷62

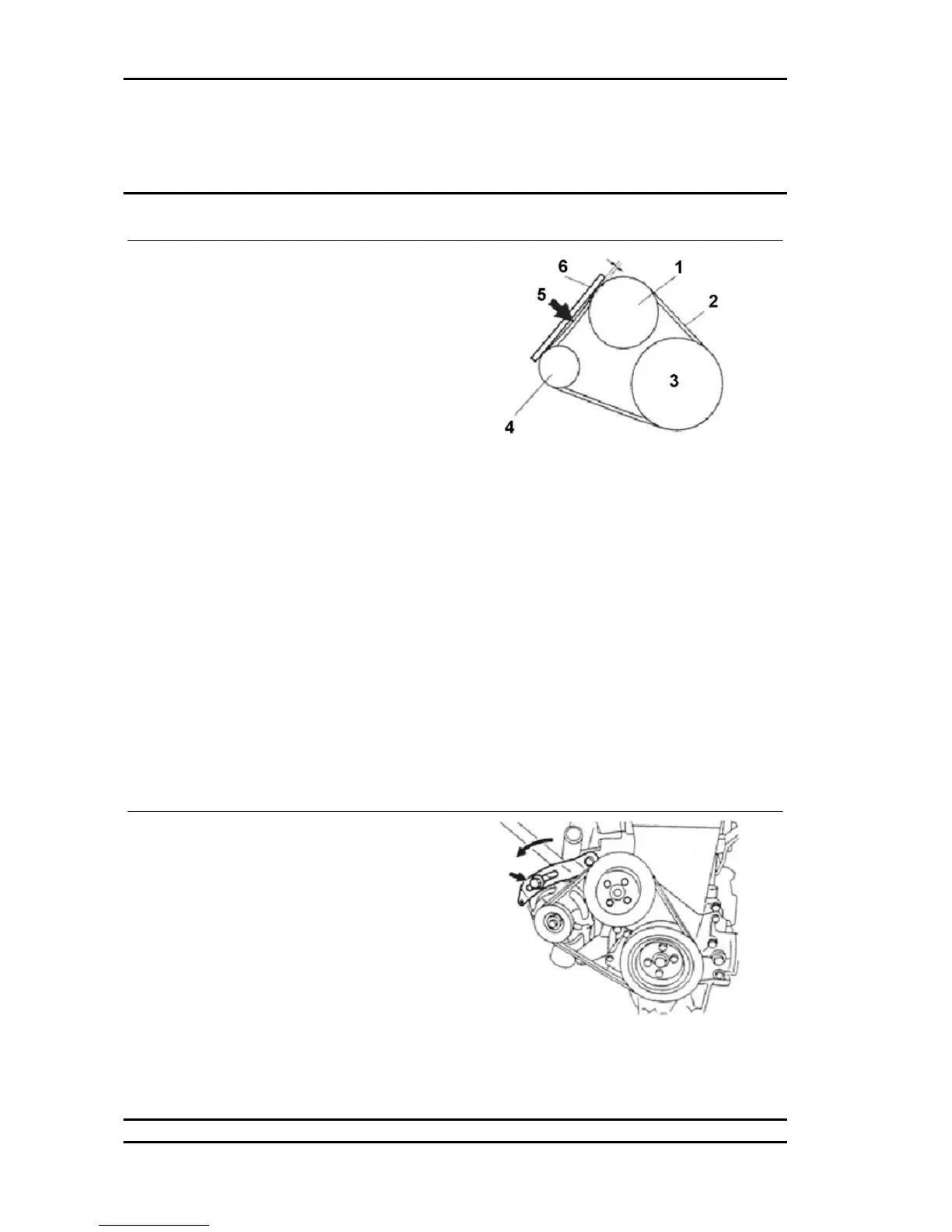

Alternator drive belt
Tension adjustment
1. Screw the adjustment bolt until the driving belt
bending reaches the indicated value. Check by
pressing the belt central part between the water
pump pulley and the alternator pulley, applying a
force equivalent to 98 N.
KEY:
1. Water pump pulley
2. V-belt
3. Shaft pulley
4. Alternator pulley
5. Force application point
6. Straight ruler
7. Bending degree
Belt bending specified value:
With the application of a force equivalent to 98 N at the indicated point.
Characteristic
New belt:
3.5 ÷ 5.5 mm
Belt bending specified value:
with the application of a force equivalent to 98 N
at the indicated point.
Characteristic
Used belt:
4.5 ÷ 6.5 mm
2. Tighten the alternator locking screws.
Locking torques (N*m)
Generator fixing screws - M8 18÷22 Generator fixing screws - M10 28÷32
Engine PORTER 1.3 16V
EN - 232
