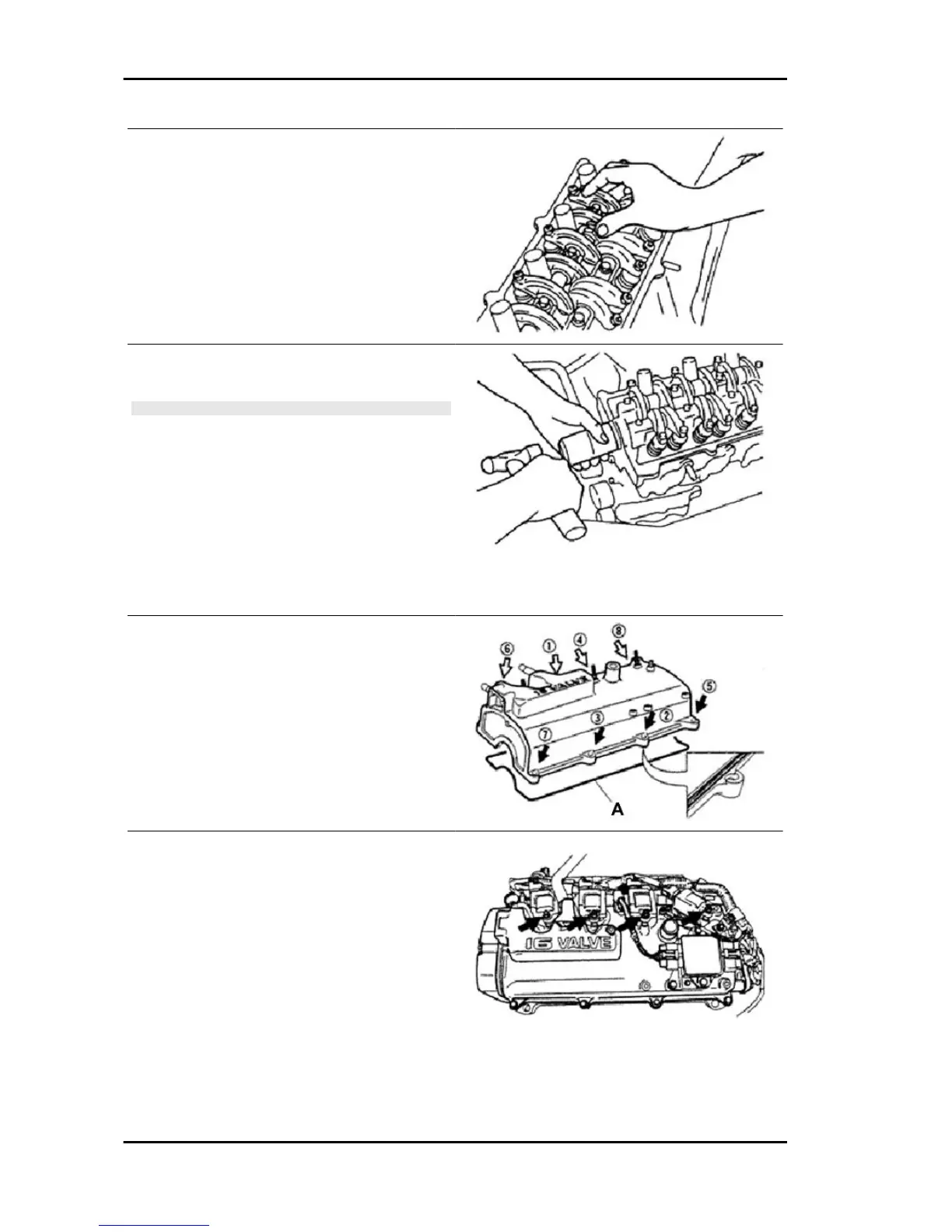

Head fitting
Final operations
1. Place two spacers between the rocking levers
for inlet valves on the rocking lever pin.
2. Apply engine oil onto the protruding part of the
camshaft T oil seal.
3. Place the oil seal in the right position, with the
special tool recommended.
CAUTION
- BE CAREFUL NOT TO REST THE OIL SEAL ON THE CAM-
SHAFT OIL SEAL ATTACHMENT HOLE.
Specific tooling
020381Y PUNCH TO FIT THE CAMSHAFT OIL
SEAL
4. Fit the pulley for the camshaft toothed belt .
5. Adjust valve clearance and ignition timing.
6. Fit the cylinder head cover with gasket A and
tighten the fixing bolts evenly in two or three
stages, according to the sequence indicated in the
figure.
Locking torques (N*m)
Cylinder head - Cylinder head cover 9 ÷ 13
7. Connect the connector to the engine coolant
temperature sensor.
8. Fit the ignition coil on the cylinder head cover
and tighten it.
Locking torques (N*m)
Cylinder head cover - Ignition coil 6÷11
9. Fit the exhaust manifold.
10. Fit the inlet manifold.
Pagina Manuale VTL
Engine PORTER 1.3 16V
EN - 288
