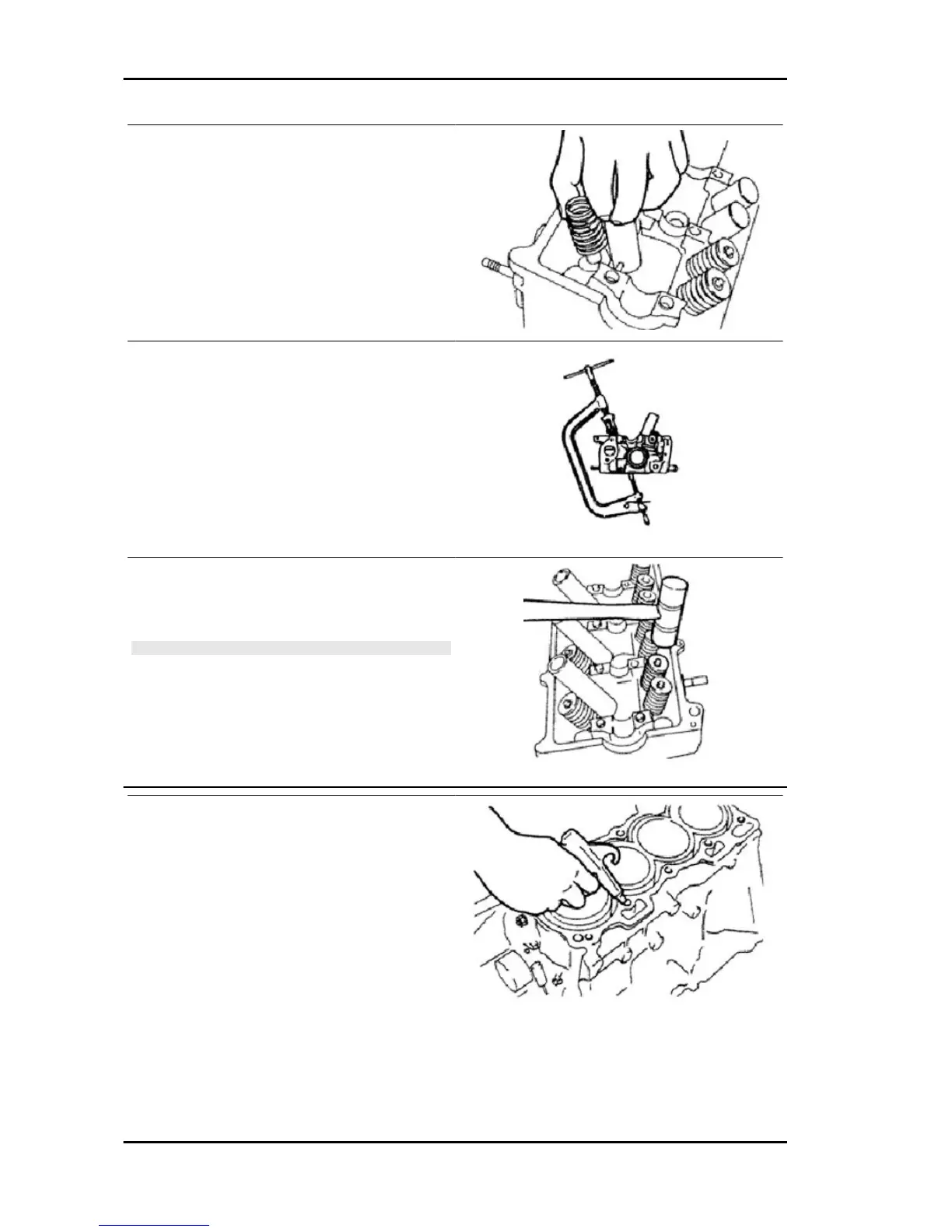

Fitting the valve springs, caps and cotters.
1. Fit the valve spring so that the painted side (side
with a longer pitch) is on the cotter part.
2. Fit the cap on the spring. Fit the cotters while
the spring is compressed with the following special
tool:
Specific tooling
020382Y Tool to remove the valve cotters
3. After fitting the cotters, slightly hit the stem with
a hammer, to make sure that the valve cotters are
fitted firmly.
WARNING
- DURING THIS OPERATION, BE CAREFUL THAT COT-
TERS DO NOT JUMP OUT.
- DURING THIS OPERATION, PROTECT EYES WITH PRO-
TECTIVE GOGGLES.
Head fitting
Next operations
1. Clean and dry the seats threaded on the block.
2. Clean the block upper surface.
- DURING THIS OPERATION, PROTECT EYES WITH PRO-
TECTIVE GOGGLES.
Engine PORTER 1.3 16V
EN - 284
