Installazione complessivo

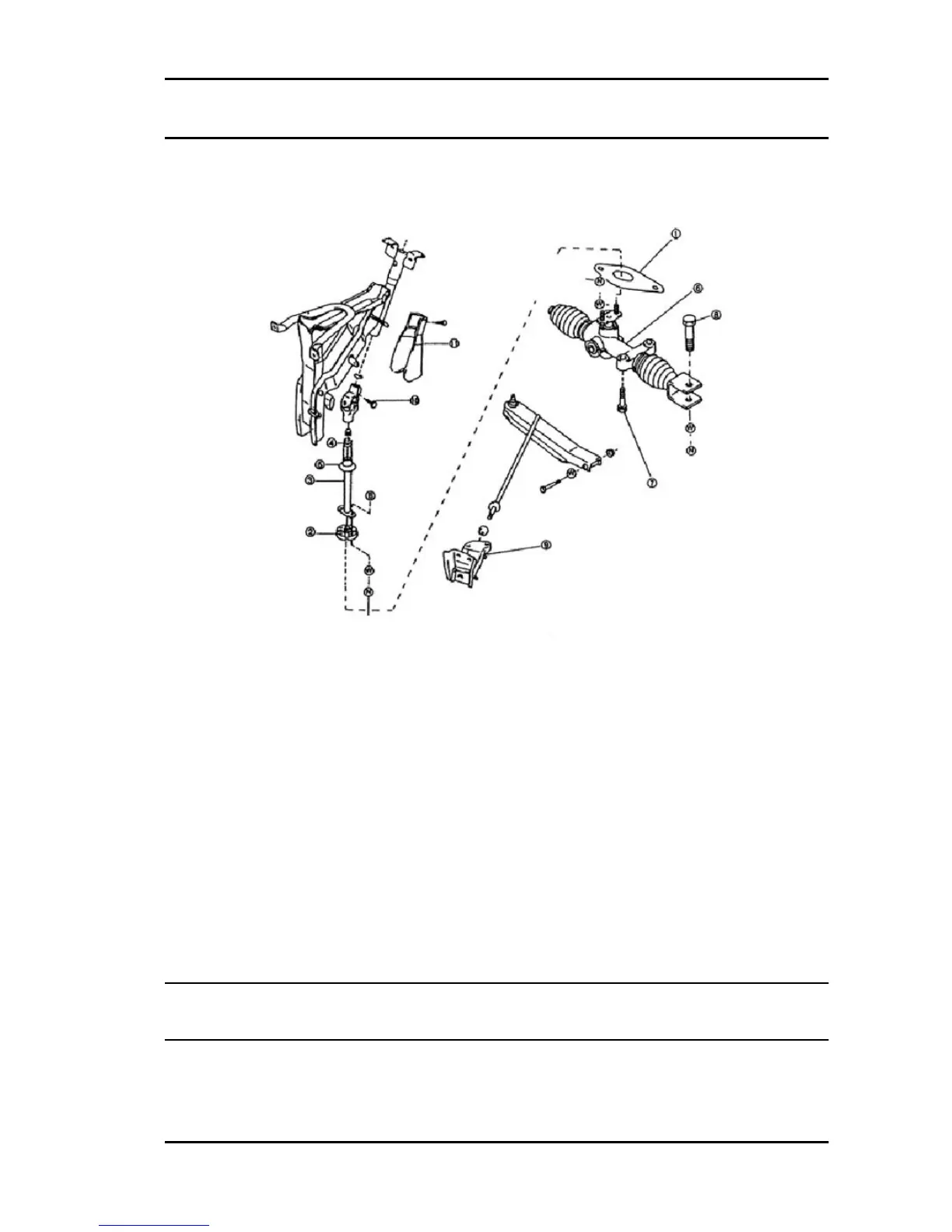

Fit the parts, following the numerical order of the figure shown below.
KEY:
1. Steering box flange
2. Elastic coupling
3. Intermediate shaft
4. Bushing
5. Dust guard
6. Steering assembly
7. Bolt
8. Bolt
9. Reinforcement bar support
10. Bolt
11. Guard
Steering column
PORTER 1.3 16V Steering column
SC - 677
