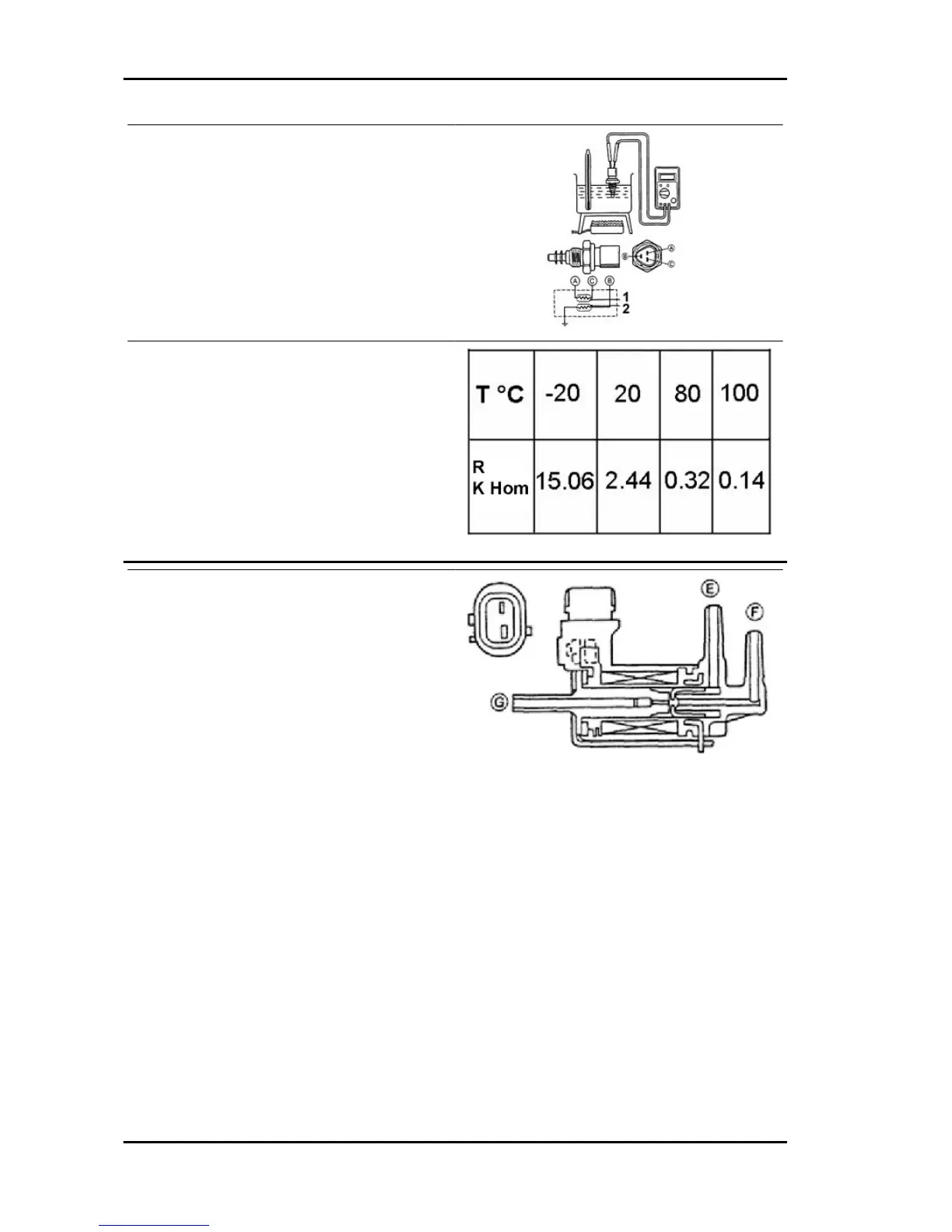

(ECT) Engine coolant temperature sensor
1. Measure resistance between terminals.
Circuit diagram - Key
1. Thermistor for electronic fuel injection
2. Thermistor for water temperature gauge
KEY:
T: Temperature
R: Resistance
VSV EGR - Vacuum switchover valve for EGR
1. Check the continuity between openings. Spec-
ifications: there must be continuity between open-
ings G and E. There must not be continuity
between openings E and F.
2.Apply voltage to the connector terminals of the
vacuum switchover valve and check continuity be-
tween the openings. Specifications: there must be
continuity between openings E and F. There must
not be continuity between openings G andE.
3.Measure the resistance value between the ter-
minals.
Characteristic
Specified value:
30 - 34 Ohm at 20°C
Iniection System PORTER 1.3 16V
IS - 542
