KEY:
1. Pad unit and thickness
2. Pad pin
3. Clip
4. Disc brake calliper unit
5. Screw
*: Non-reusable parts
Locking torques (N*m)
Disc brake calliper assembly for disc brake dust guard 49 ÷ 59

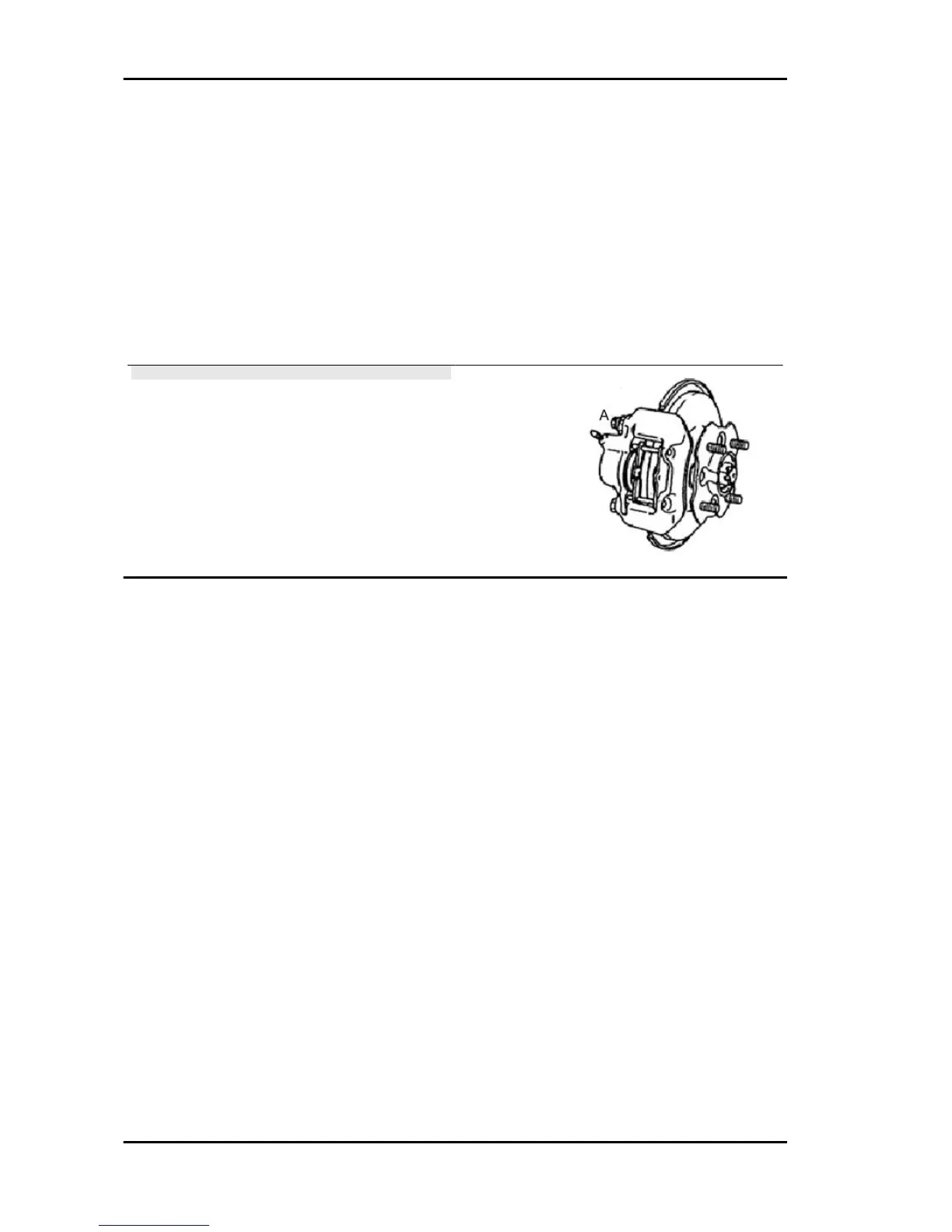

N.B.
UPON THE BRAKE CALLIPER FITTING, BE CAREFUL NOT
TO PINCH THE PROTECTION COVER OF PISTON A.
Front disc brake
Removal
Remove the parts, following the numerical order illustrated.
KEY:
1. Screw
2. Brake calliper unit
3. Cotter pin
4. Castle nut
5. Washer
6. Hub unit and disc
7. Disc brake dust guard
Braking system PORTER 1.3 16V
BS - 624
