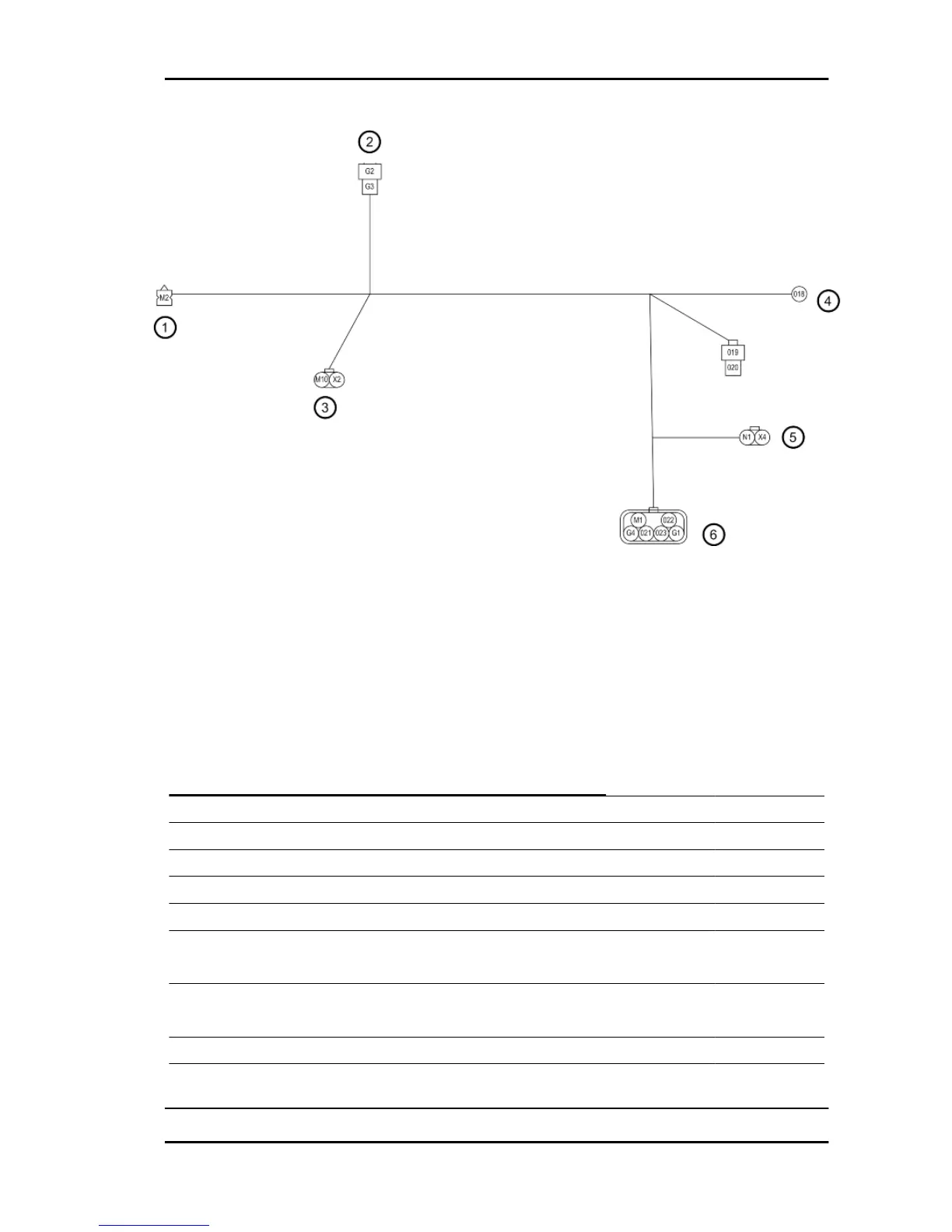

Engine cable harness
1. Starter motor
2. Reverse gear light switch
3. To the battery positive cable harness
4. Alternator
5. To the instrument panel cable harness (fuses)
6. To the instrument panel cable harness
POSITIONS OF CABLES IN THE CONNECTORS - CONNECTOR FRONT SIDE VIEW
From A
Position Terminal Terminal Position
F/L EFI fuse M10 X4 EFI fuse
F/L Main fuse X2 N1 Main fuse
J/B Fuse box (ignition switch/B) 022 018 Alternator (B)
Ignition switch (ST) M1 M2 Starter motor (ST)
Bulb switch
reverse gear (-)
G3 G1 Reverse gear bulb
(+)
J/B-Fuse box (Heating fuse) G4 G2 Reverse gear bulb
switch (+)
J/B-Fuse box (Engine fuse) 021 019 Alternator (IG)
Instrument panel (charge bulb) 023 020 Alternator (L)
PORTER 1.3 16V Electrical system
ES - 187
