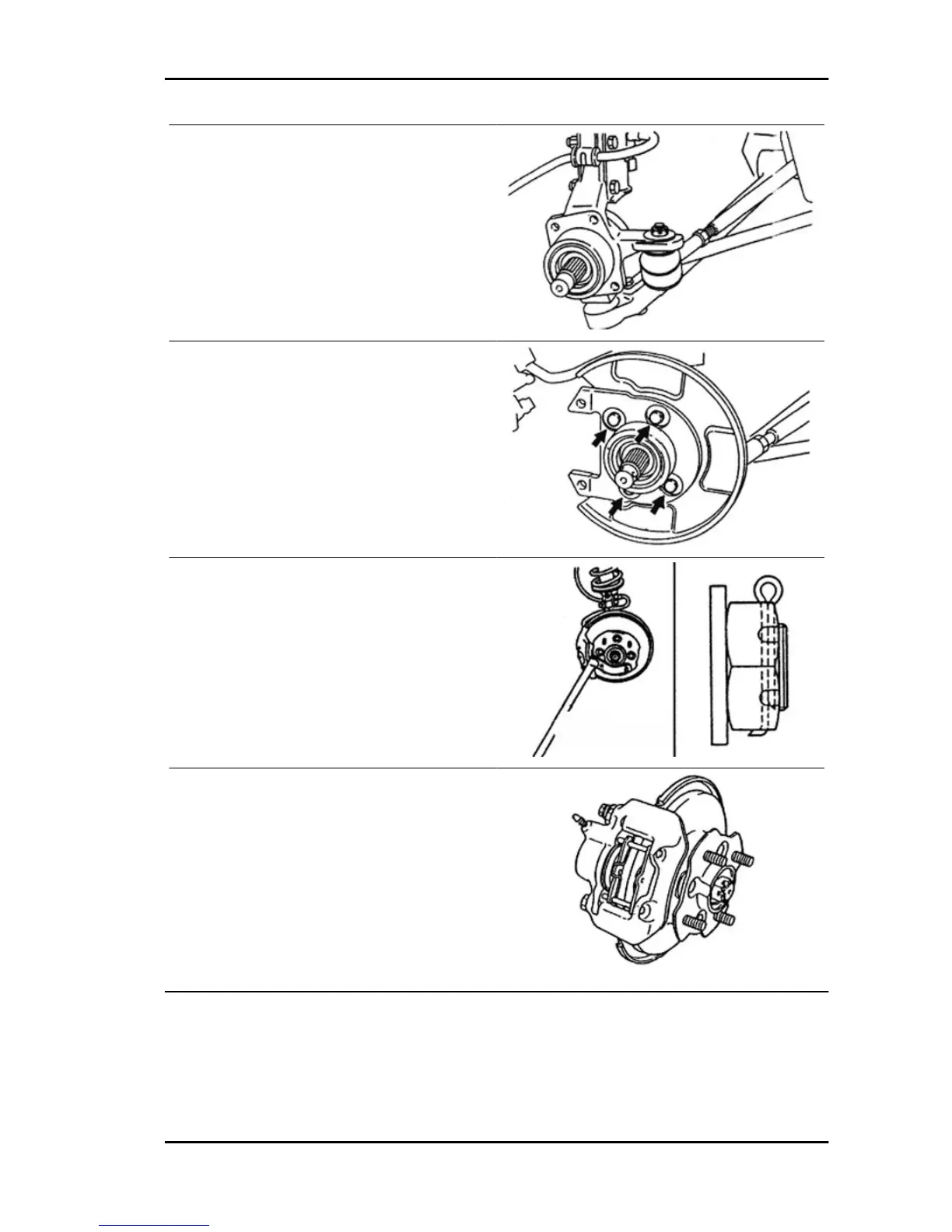

2. Fit the tie rod on the articulation.
- ALIGN THE CASTLE NUT RECESS WITH THE HOLE.
Locking torques (N*m)
Tie rod head - Articulated arm 39 ÷ 54
3. Fit a new cotter pin on the castle nut.
4. Fit the brake disc dust guard.
Locking torques (N*m)
Brake disc dust guard - Wheel hub joint 39.3 ÷
53.9
5. Fit the hub and the disc assembly, and tighten
the castle nut, using the following tool:
- ALIGN THE CASTLE NUT RECESS WITH THE HOLE.
Specific tooling
020221y Brake drum stop device
Locking torques (N*m)
Castle nut - Front axle hub 177.0 ÷ 216.0
6. Fit a new cotter pin on the castle nut.
7. Install the calliper assembly with two bolts.
8. Connect the brake hose to the calliper.
9. Bleed the air completely.
- BE CAREFUL NOT TO DAMAGE THE COVER.
Locking torques (N*m)
Disc brake calliper - Disc brake dust guard 49 ÷
59
PORTER 1.3 16V Suspensions
SS - 701
