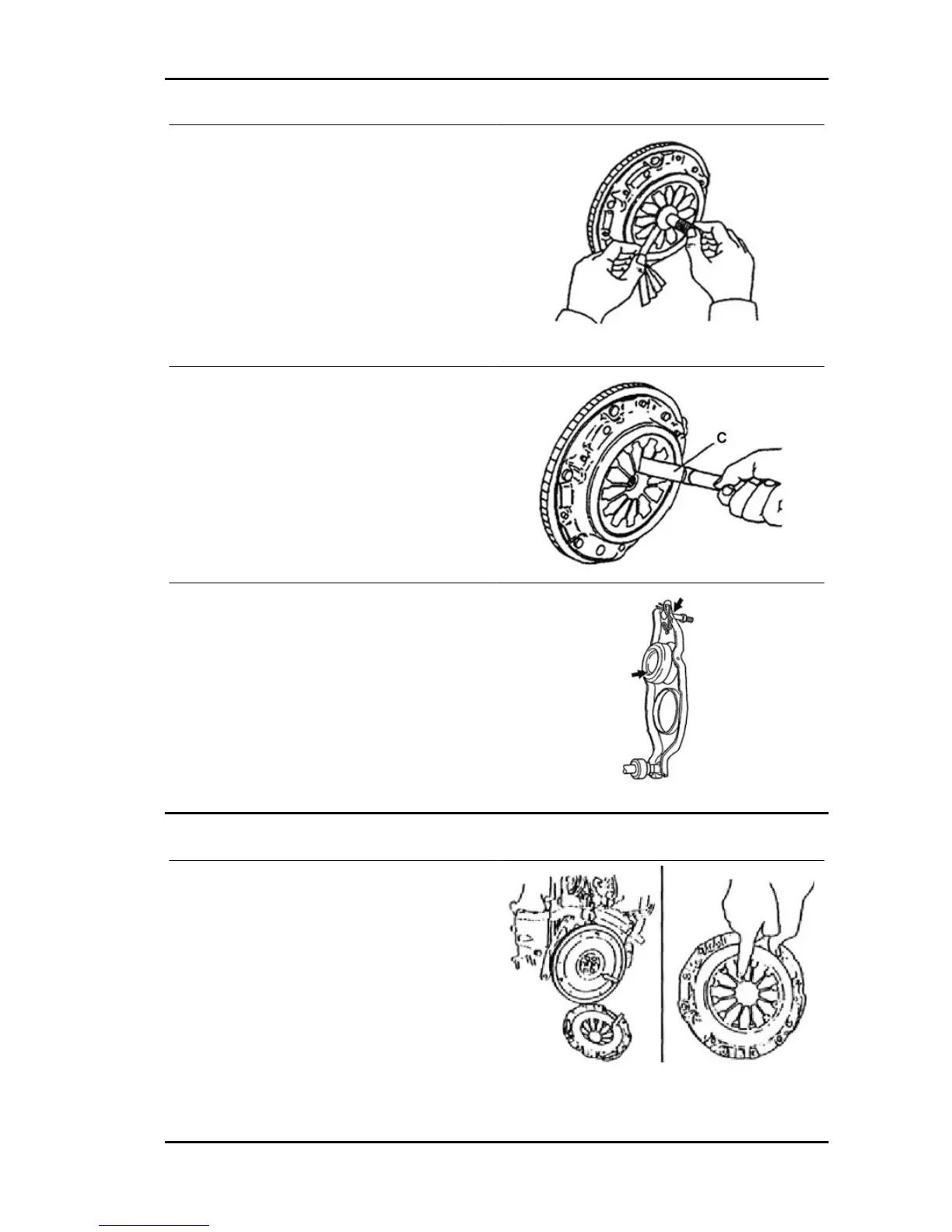

5. With a thickness gauge and using the special
tool, check the diaphragm spring, to detect possi-
ble height deviations.
Specific tooling
020197y Instrument to measure the height of
the clutch diaphragm spring
Characteristic
Height deviation
Limit: 0.7 mm
6. If height deviation exceeds the specified limit,
adjust the diaphragm spring with the special tool
C.
Specific tooling
020195y Tool kit to align the diaphragm spring
7. Fit the clutch lever.
•
Apply EP grease onto the thrust bear-
ing hub and to the lever contact sur-
face.
•
Apply EP grease onto the clutch lever
and to relevant contact surface.
8. Fit the vehicle gear unit.
Revisione
Clutch bell and diaphragm spring
Test the following parts. Replace any defective
part.
1. Check the clutch pressure plate and flywheel
contact surface with the clutch disc; checking that
there are no signs of wear or overheating.
2. Check that there are no signs of wear, corrosion
or damage on the lever.
PORTER 1.3 16V Engine
EN - 343
