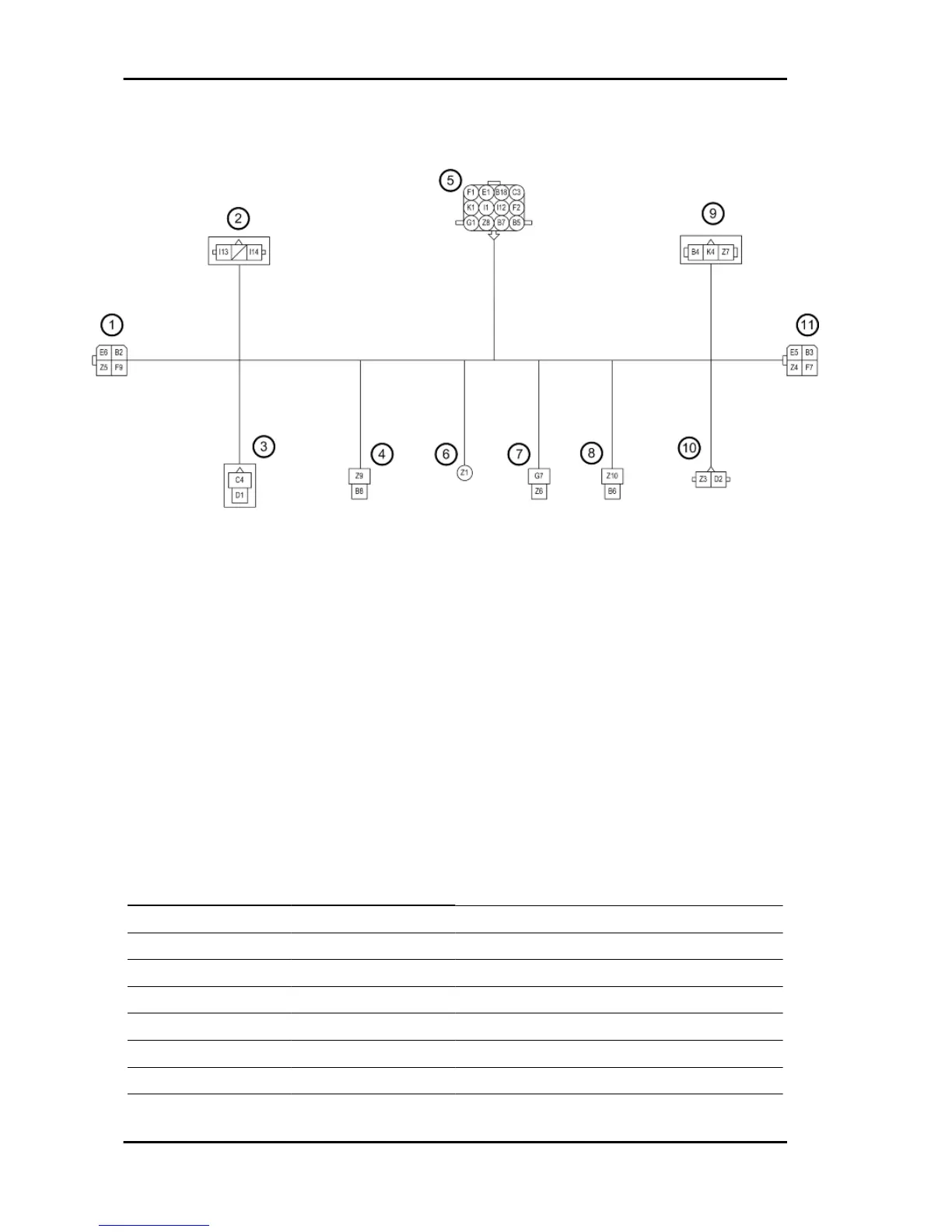

Rear chassis cable harness (Porter Van)
1.Rear left lights
2.To the tail door (rear window wiper)
3. To the roof (roof light)
4. Rear left fog light
5.To the instrument panel cable harness
6. Chassis earthing
7. Reverse gear light
8.Rear right fog light
9.To the tail door cable harness (license plate and heated rear window)
10.Tail door courtesy light switch
11.Rear right lights
From A
Position Terminal Terminal Position
Rear right fog light (+) B6 B7 Rear fog light switch (L)
Light switch B5 B4 License plate light (+)
Light switch B18 B3 Right position light
Connection to B6-B7 - B8 Rear left fog light (+)
Connection to B18-B3 - B2 Left position light
Light fuse (L) C3 C4 Roof light (+B)
Stop light switch E1 E5 Right stop light
Electrical system PORTER 1.3 16V
ES - 188
