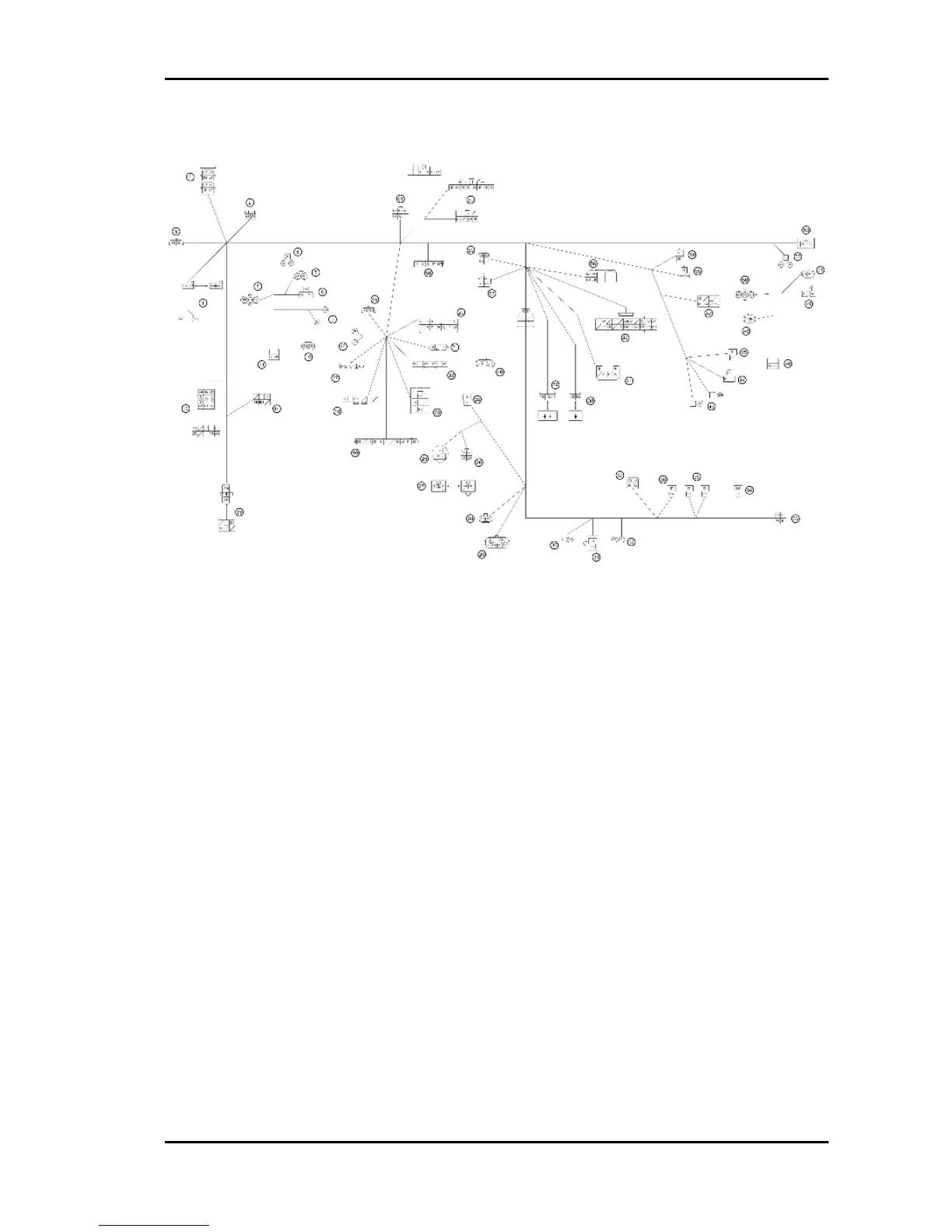

INSTRUMENT PANEL CABLES
LEFT HAND DRIVE INSTRUMENT PANEL:
1. Main relay locking and fuel pump relay
2. Brake fluid level switch
3. Courtesy light switch
4. Buzzer
5. Left headlight adjustment actuator
6. Front left chassis ground
7. Front left position light
8. Left headlight
9. Horn
10. Left fog light
11. Front left/side turn indicator
12. Headlight adjustment switch
13. Rear fog light switch
14. Fog light switch
15. Loudspeaker
16. Stop light switch
17. J/B A connection
18. Fog light fuse
PORTER 1.3 16V Electrical system
ES - 199
