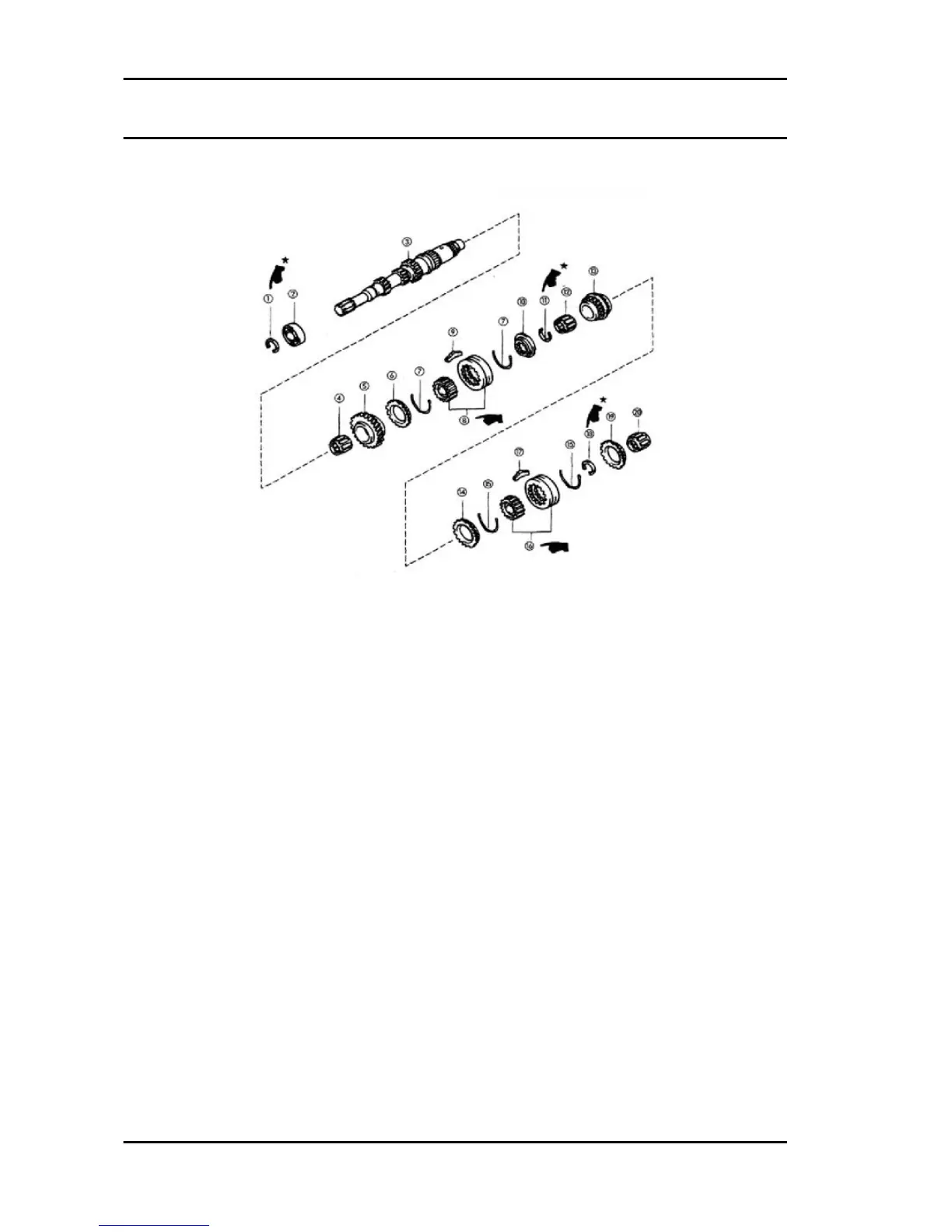

Inlet shaft
COMPONENTS
* Non-reusable parts
1. Circlip *
2. Radial ball bearing (front)
3. Input shaft
4. Needle bearing
5. 5th gear
6. Synchronisation ring No. 1
7. Synchroniser elastic key
8. Synchroniser hub assembly No. 3
9. Synchroniser movement key
10. Hub key stop
11. Circlip *
12. Needle bearing
13. 3rd gear
14. Synchronisation ring No. 1
15. Synchroniser elastic key
16. Synchroniser hub assembly No. 2
17. Synchroniser movement key
18. Circlip *
Gear-box PORTER 1.3 16V
GE - 564
