1. Cover
2. Clutch cable adjusting nut
3. Clutch cable terminal
4. Clutch pedal shaft
5. Spring
6. Bushing
7. Clutch pedal
8. Clutch pedal protection

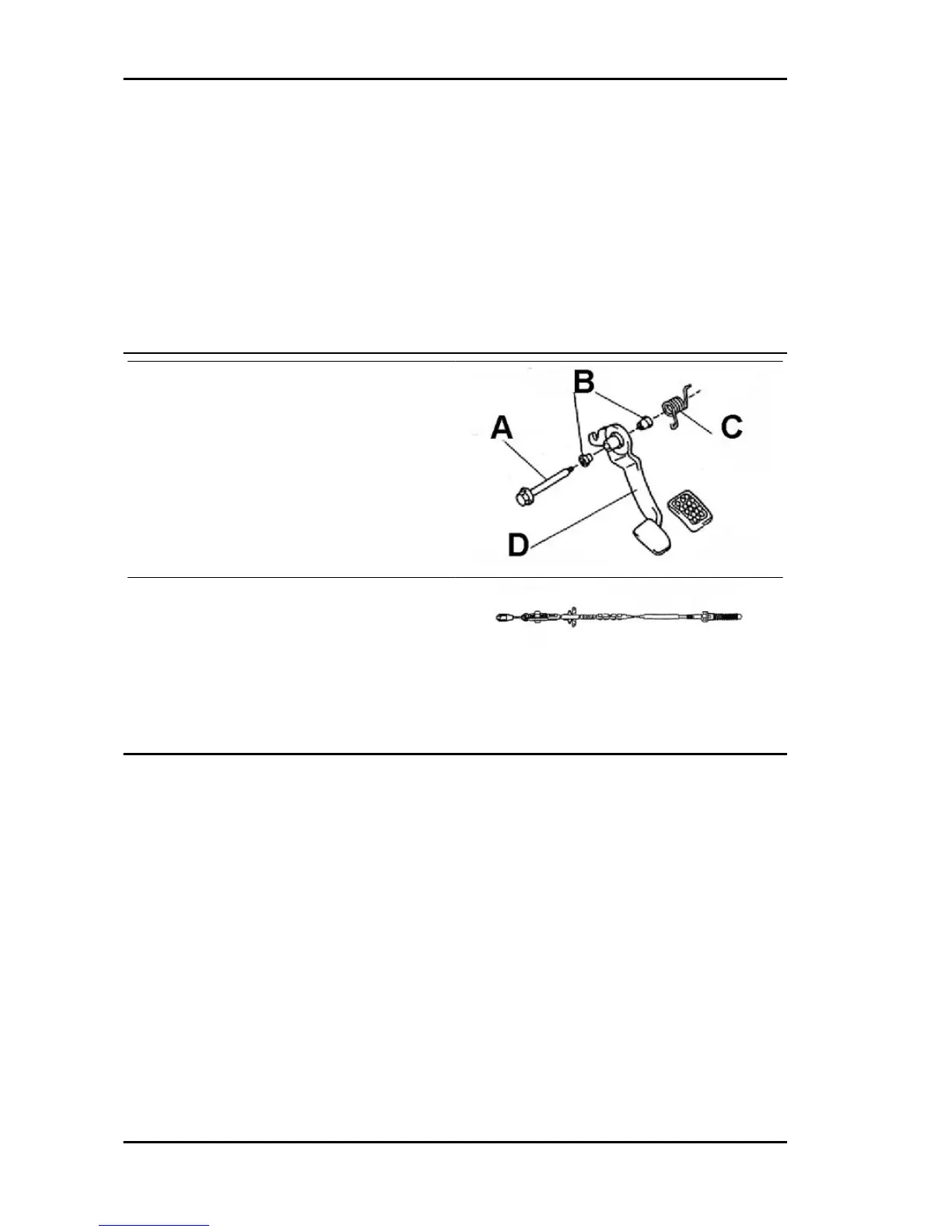

Inspection
Check the parts indicated below: replace those
defective parts.
Components:
A= Screw
B= Spacer
C= Spring
D= Pedal lever
Clutch cable
The clutch cable is the protection sheath type of
cable.
As a consequence, an increased liability level is
obtained, owing to an improved protection against
scoring due to possible foreign objects.
Installation
Fit the parts, following the numerical order shown in the figure.
Engine PORTER 1.3 16V
EN - 346
