93.00 mm
Outside diameter
35.00 mm
Inside diameter
25.00 mm

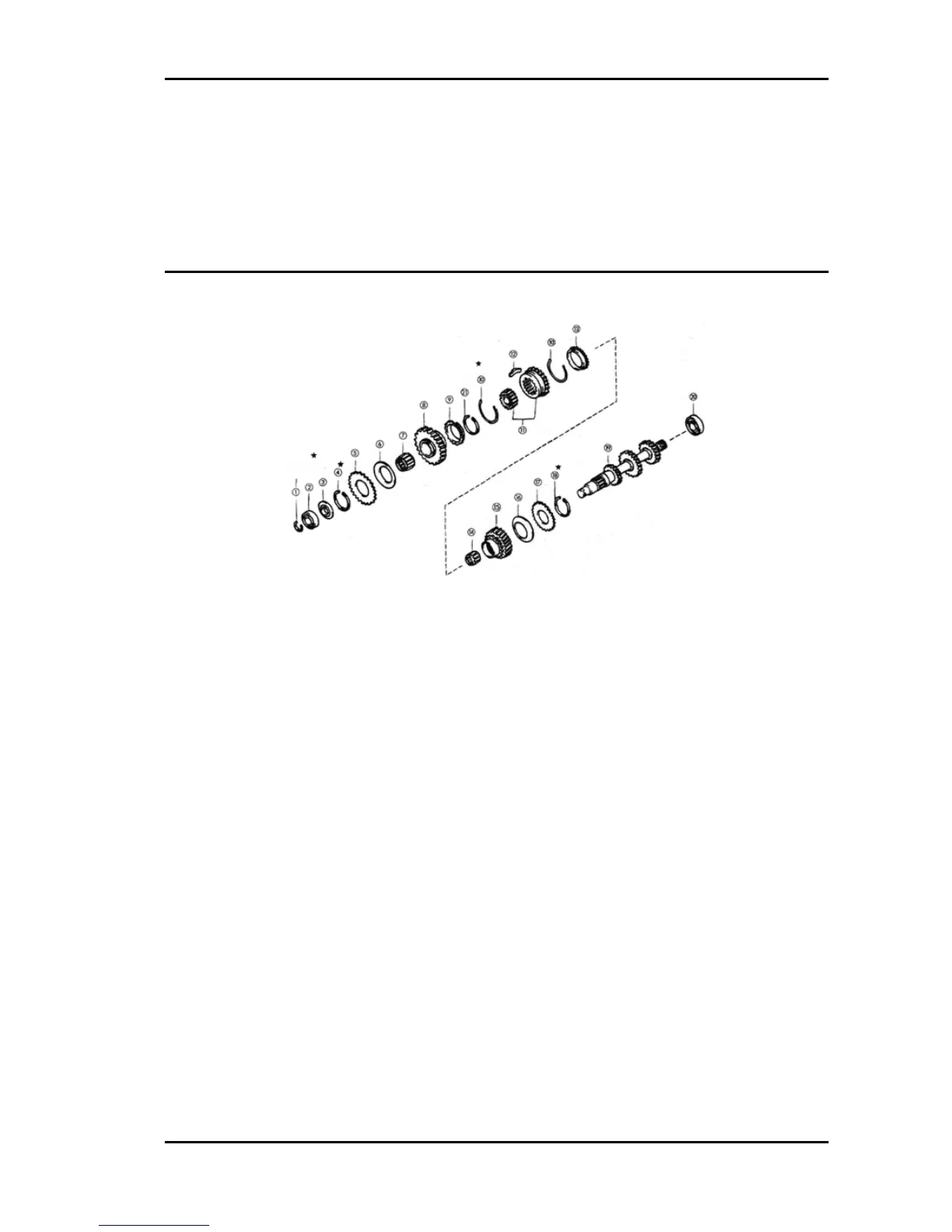

Transmission shaft
Components
* Non-reusable parts
1. Circlip *
2. Radial ball bearing
3. Thrust washer of the 1st gear
4. Circlip *
5. 1st sub-gear
6. Circlip
7. Needle bearing
8. 1st gear
9. Synchronisation ring No. 2
10. Synchroniser elastic key
11. Synchroniser hub assembly No. 1
12. Synchroniser movement key
13. Synchronisation ring No. 3
14. Needle bearing
15. 2nd gear
16. Conical spring washer *
17. 2nd sub-gear
18. Shaft spring washer
PORTER 1.3 16V Gear-box
GE - 577
