Control

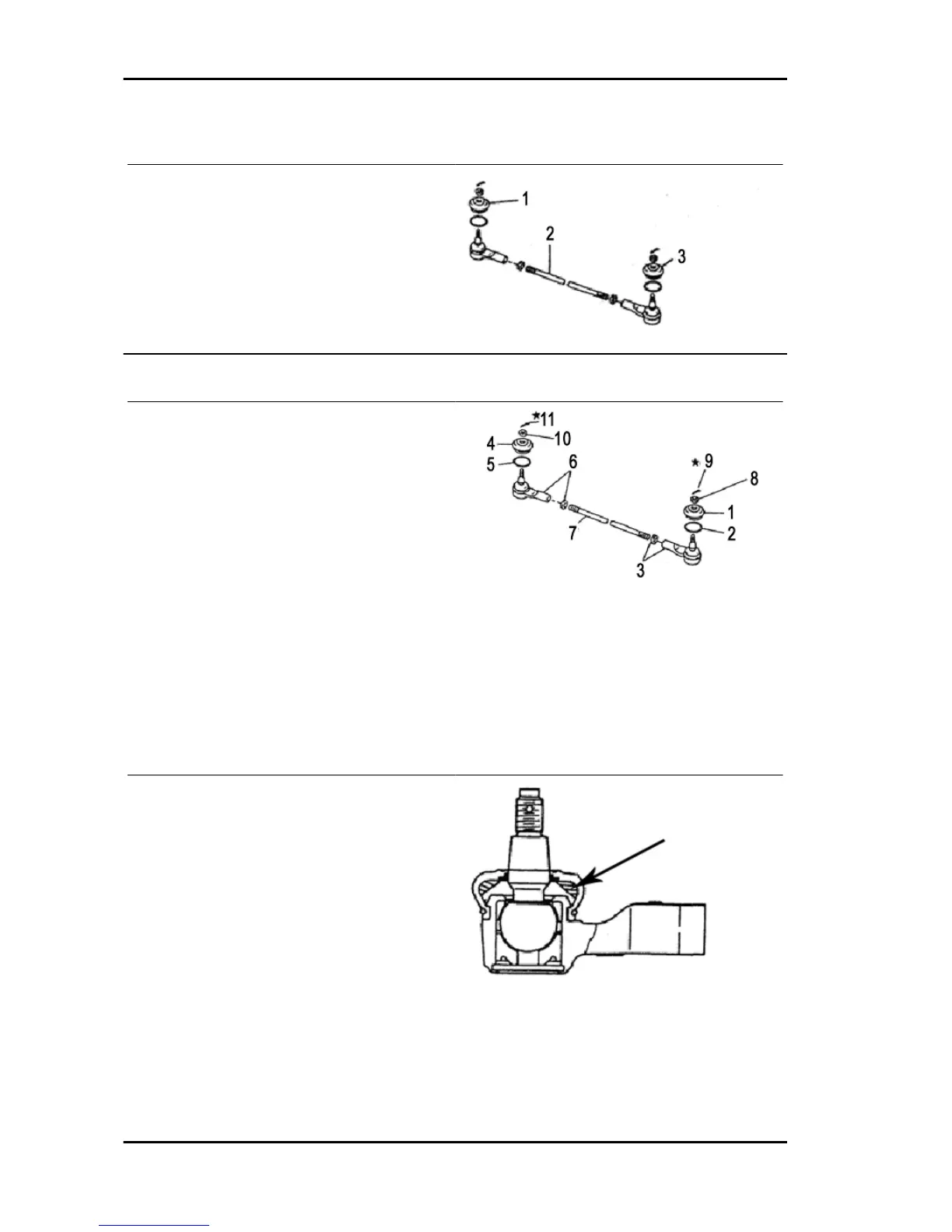

Check the following parts and replace the defec-
tive ones.
1. Breaking and deterioration
2. Damage and bending
3. Breaking and deterioration
Installation
Remove the parts, following the numerical order of
the figure shown below.
1. Dust guard
2. Ring
3. Arm head
4. Dust guard
5. Ring
6. Arm head
7. Tie rods
8. Nut
9. Cotter pin
10. Nut
11. Cotter pin
*: Non-reusable parts
1. Apply the prescribed quantity of lithium based
multipurpose grease at the points specified in the
figure.
MAKE SURE THAT THERE IS NO GREASE ON THE CONI-
CAL SECTION OR THE THREADED SECTION.
Characteristic
Prescribed quantity of grease
3 cm³
Arm head
MAKE SURE THAT THE ARM HEAD WITH ANTICLOCKWISE THREAD IS ON THE CENTRAL ARM
SIDE OF THE RIGHT TIE ROD ASSEMBLY AND ON THE ARTICULATION SIDE OF THE LEFT TIE
ROD ASSEMBLY.
Steering column PORTER 1.3 16V
SC - 682
