Shock-absorbers removal

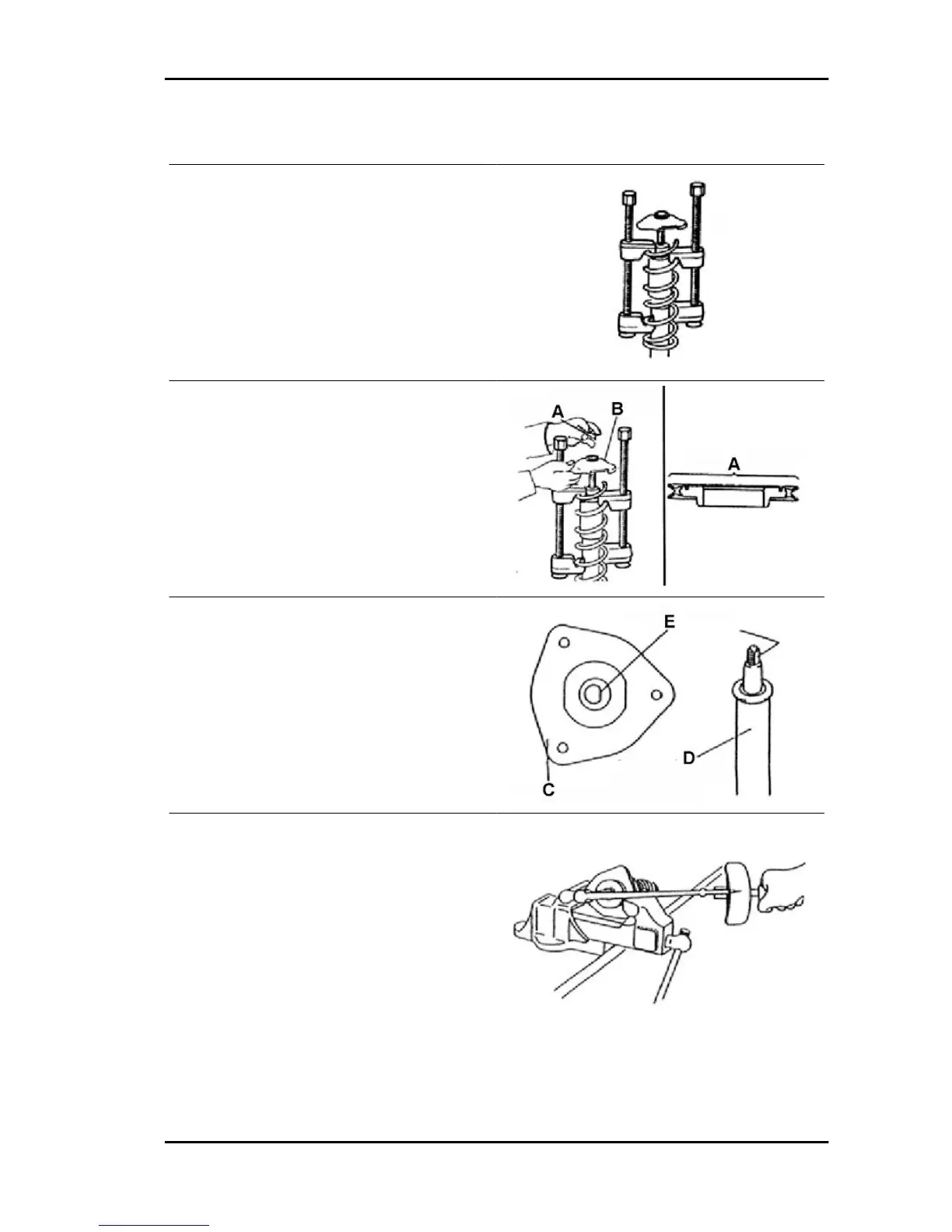

Assembly
1. Insert the dust guard and the elastic buffer in the
shock absorber stem.
2. Compress the spring, using the following tool:
Specific tooling
020235y Front spiral spring compressor
3. Fit the spring seat upper cap B and the bushing
A.
- APPLY 0.5 GR OR MORE MT GREASE ON THE UPPER
SURFACE OF BUSHING A.
4. Fit the front suspension support C
5. Temporarily tighten the nut. (Use a new nut).
- DURING THE ASSEMBLY, REMEMBER TO ALIGN THE
PART SEPARATED FROM THE FRONT SUSPENSION
SUPPORT C WITH THAT OF THE SHOCK ABSORBER
STEM D.
6. Lock the front suspension support in a vice.
Tighten the suspension support nut to the shock
absorber stem.
Locking torques (N*m)
Shock absorber - Front suspension support
49.0 ÷ 69
