Lower roller removal

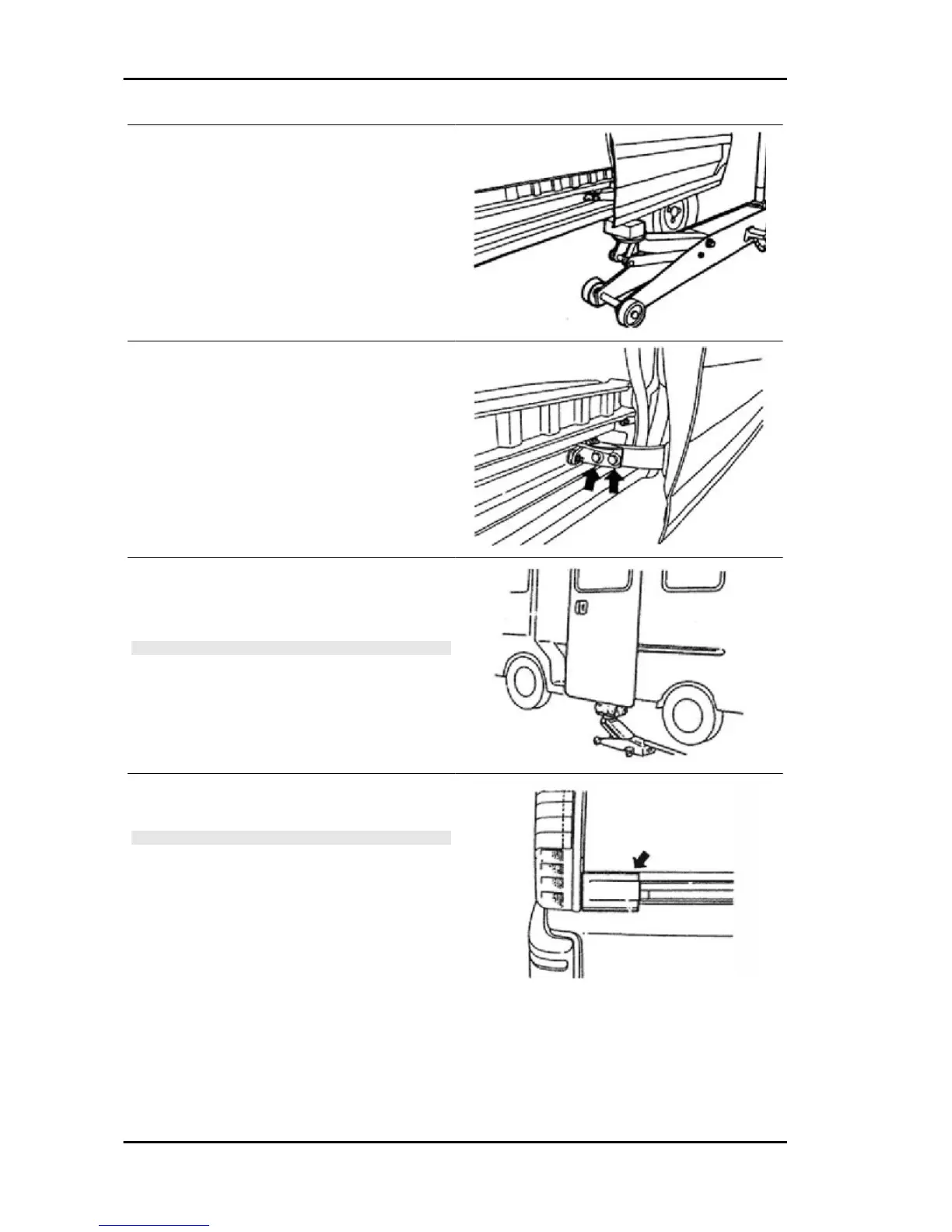

1. Hold the sliding door with a jack, interposing a
wooden wedge as shown in the figure.
2. Remove the lower roller arm by taking out the
two relevant bolts.
3. Remove the guide roller pin and the lower roller
from the lower roller arm, using an Allen wrench.
Central hinge removal
1. Hold the sliding door with a jack, interposing a
wooden wedge as shown in the figure.
N.B.
- CARRY OUT THIS OPERATION WITH ANOTHER PERSON
TO KEEP THE DOOR IN POSITION.
2. Remove the side upholstery.
3. Remove the central guide upholstery.
N.B.
- THE UPHOLSTERY IS HELD BACK BY TOOTHED HOOK.
THEN MOVE THE UPHOLSTERY IN THE DIRECTION INDI-
CATED BY THE ARROW AND, AFTERWARDS, REMOVE IT
FROM THE FRONT SECTION OUT OF THE VEHICLE.
Chassis PORTER 1.3 16V
CH - 764
