Smontaggio

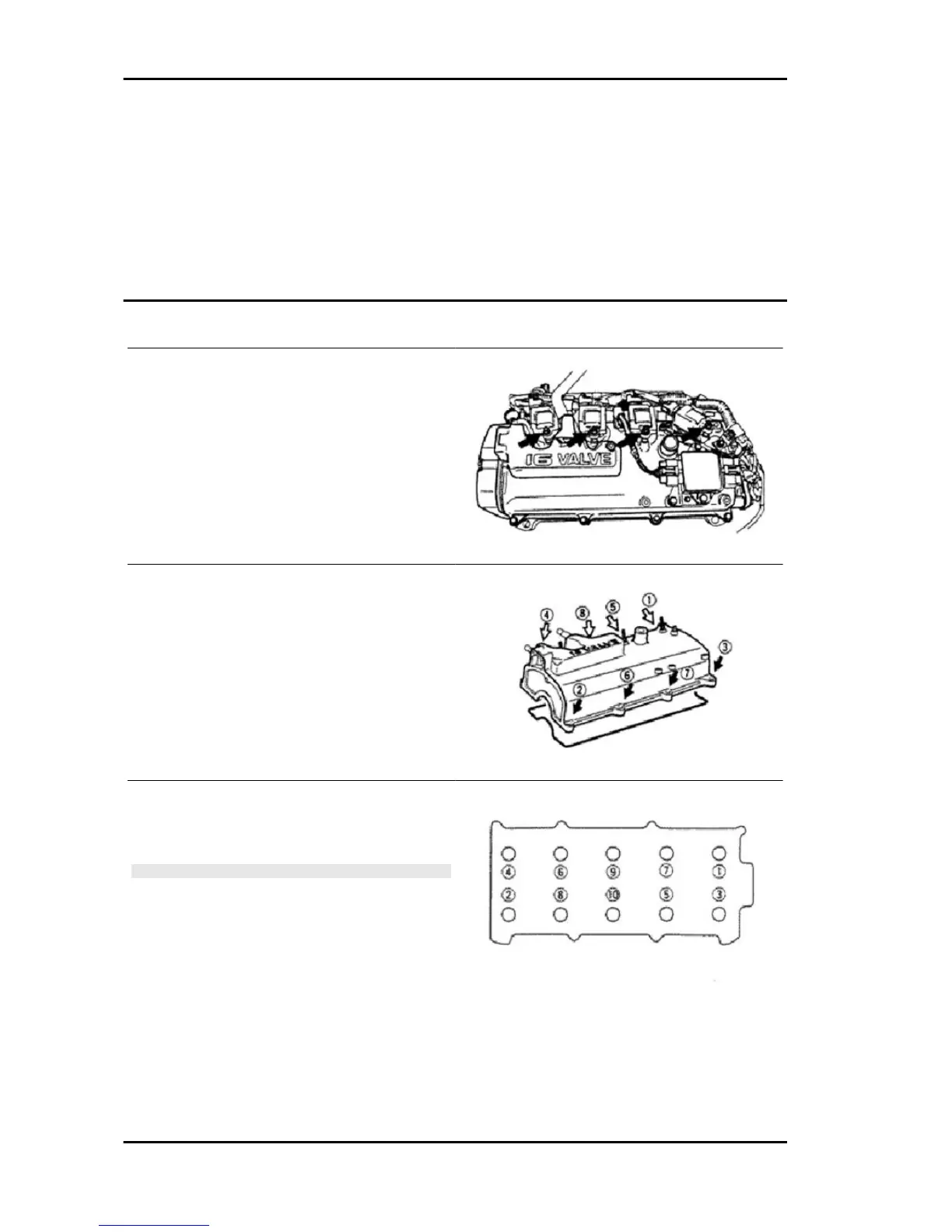

Block removal
Operations on components
Place the engine on proper engine bench.
Remove the toothed belt
Cylinder head cover removal.
1. Remove the ignition coil unit.
2. Remove the bolts fixing the cylinder head cover.
3. Remove the cylinder head cover.
4.Loosen bolts fixing the cylinder head evenly in
two or three stages, according to the sequence in-
dicated in the figure on the right.
N.B.
- FAILURE TO OBSERVE THE SEQUENCE SHOWN TO
TIGHTEN THE SCREWS, CAN CAUSE CRACKS AND DIS-
TORTIONS ON THE HEAD, LEADING ALSO TO THE EN-
GINE SEIZURE.
- MAKE SURE THAT ALL THE SCREWS ARE TIGHTENED
EVENLY TO THE PRESCRIBED TORQUE.
Engine PORTER 1.3 16V
EN - 290
