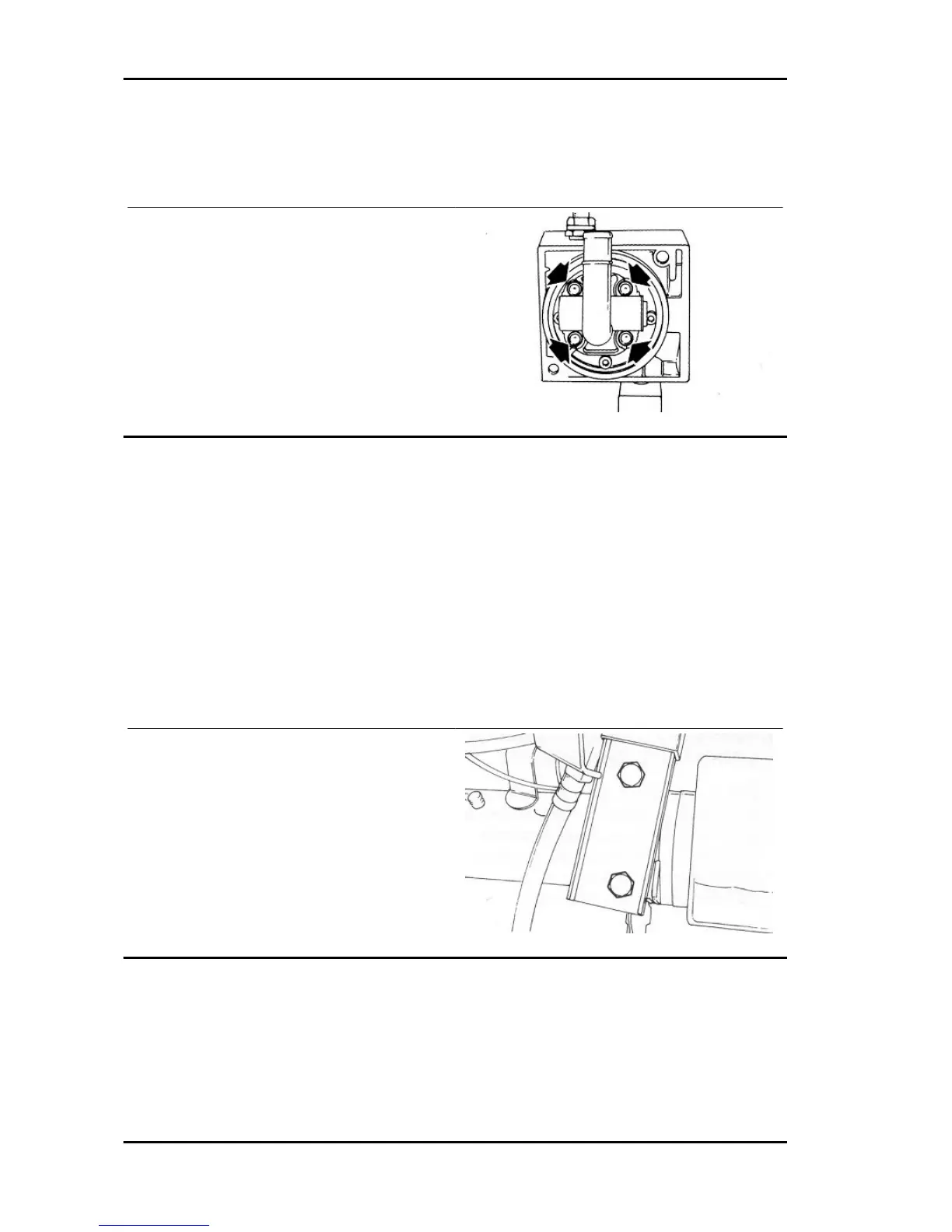

Fit the hydraulic pump and tighten the four Allen screws to the prescribed torque.
Locking torques (N*m)
hydraulic pump for valve body 12 Nm
Proceed by inserting the oil intake pipe in the
pump. Fit a new O-ring, then install the reservoir
by first locking it with the two plates, and then with
the clamp.
WHILE INSTALLING THE RESERVOIR, IT IS ADVISABLE
TO LUBRICATE THE O-RING AND THE TWO FAYING SUR-
FACES WITH USED OIL TAKEN FROM THE PUMP.
Montaggio
Hydraulic pump and electric motor fitting
Place the pump with electric motor on the vehicle chassis bracket, fix the two screws, tightening them
to the correct torque.
Locking torques (N*m)
pump assembly for chassis bracket 26 - 39 Nm
Connect the connection sleeve between the pump and the hydraulic piston with the specific copper
gaskets and lock it.
Locking torques (N*m)
oil fitting 29 - 39 Nm
Restore all the electric connections following re-
moval operations but in reverse order.
Tipper version PORTER 1.3 16V
VR - 736
