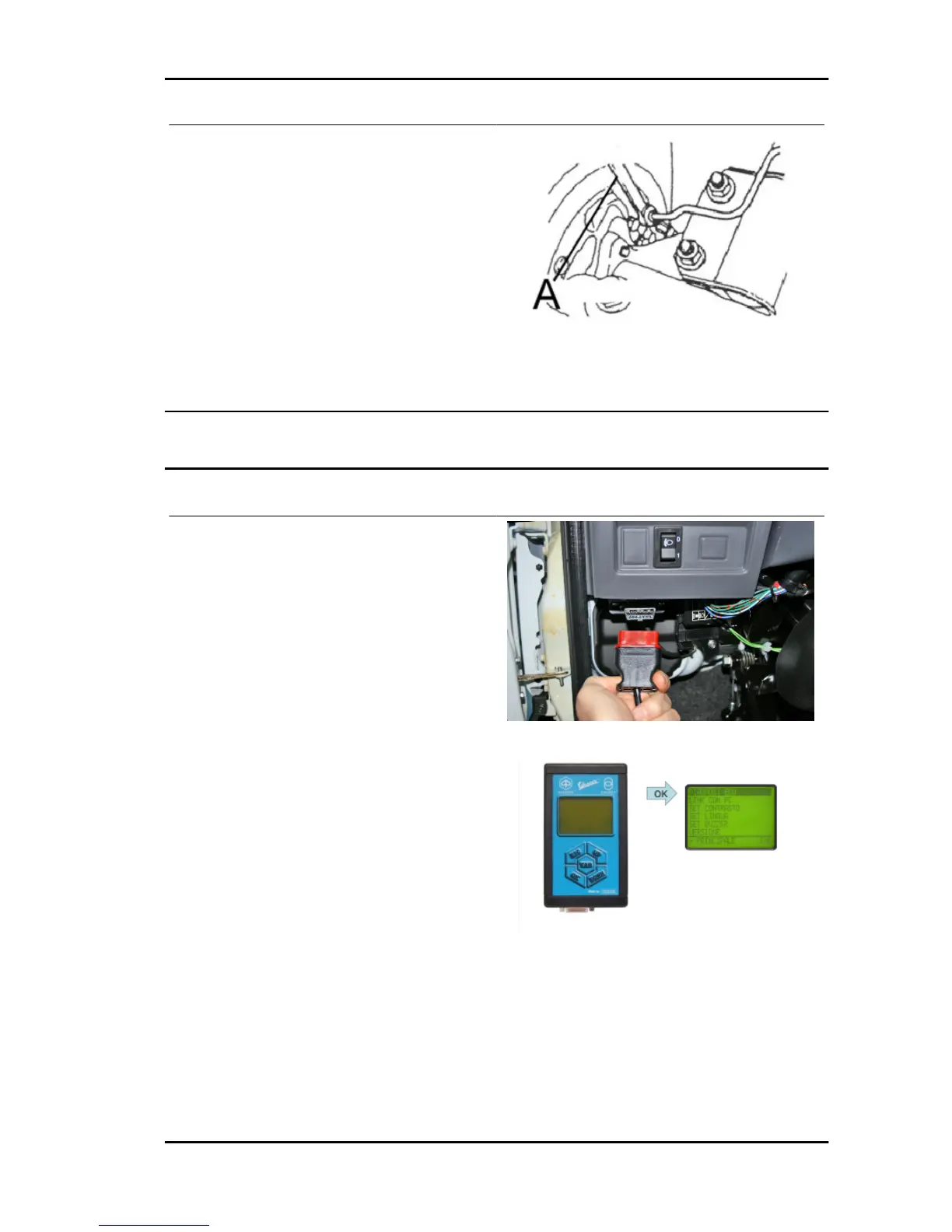

(Example); Brake pipe fitting,
•
Temporarily fit the brake pipe on the
wheel cylinder, manually
•
Tighten the brake pipe on the wheel
cylinder, using the special tool «A».
Specific tooling
09751-36011-000 tool description
- The inspection comprises only the checking operations. Therefore, if malfunctions are detected, it is
necessary to replace the defective parts with new ones.
Circuit check
Electric fault repair
DIAGNOSIS CONNECTOR (DLC Data Link
Connector).
The Electronic Control Unit of the vehicle complies
with the ISO protocol 14230 (Euro-OBD). Regard-
ing the position, the configuration of the connector
and the terminal pre-installation, the DLC complies
with the ISO 15031-3 (SAEJ1962) and ISO 14230
standards.
The OBD II serial data line (K line) is used for the
OBD II general scanning device or for the specific
diagnostic tester, to communicate with the elec-
tronic control unit.
PORTER 1.3 16V General guidelines
N GEN - 15
