Regolazioni

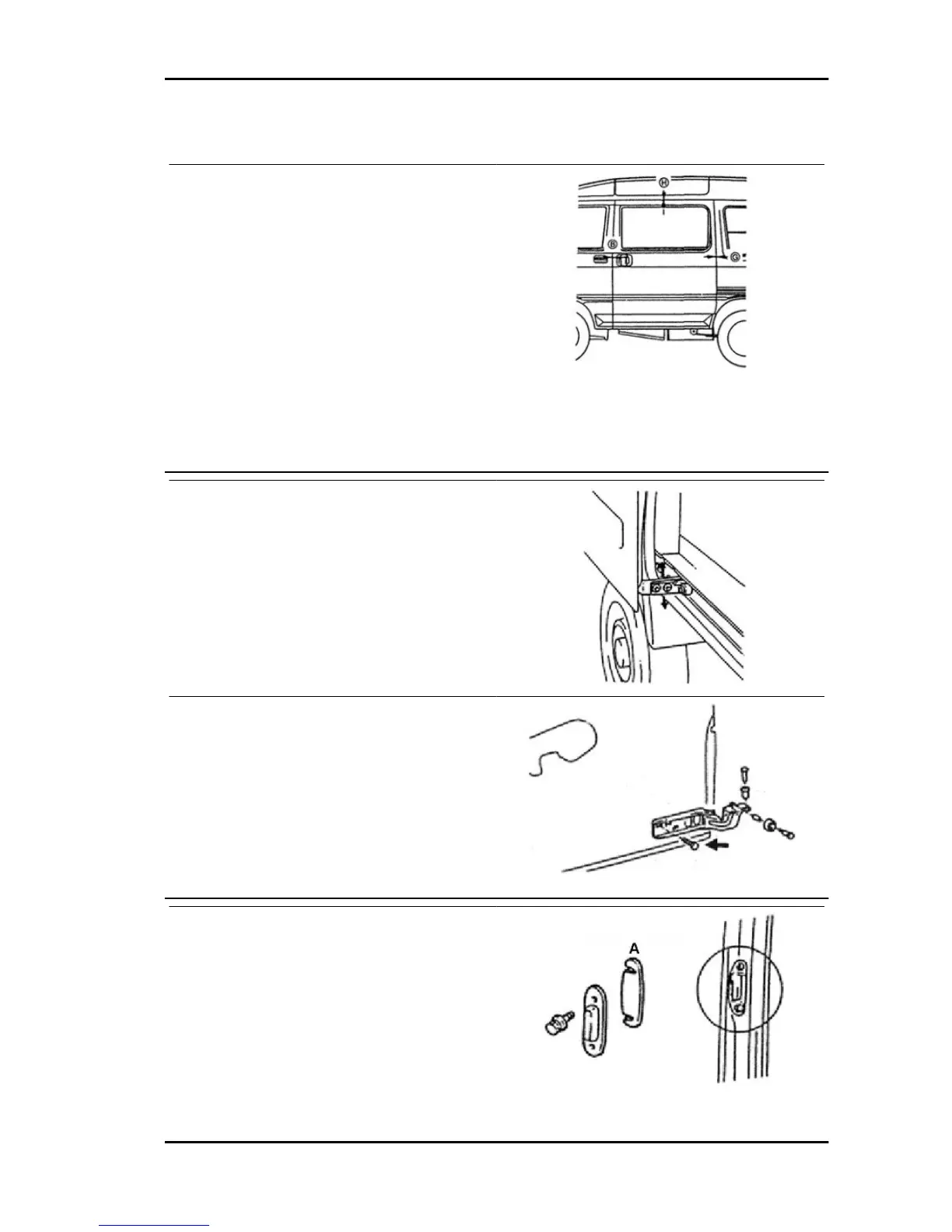

Sliding door
Prescribed alignment sizes
Distance B, G, H <Specified value: 3.5 - 7.5 mm
Tolerance for each side B, G Specified value: not
exceeding 1.5 mm
Tolerance for each side H Specified value: not ex-
ceeding 2.0 mm
Height difference Specified value: not exceeding ±
1.5 mm
Tolerance between the right and left side B, G, H
Specified value: not exceeding 2.00 mm
Height adjustment
1. Adjust after undoing the two fixing bolts.
Now, move the catch at a distance equal to the
lower roller movement.
Characteristic
Adjustment tolerance
~ ± 2 mm
2. Adjust after undoing the two central hinge fixing
bolts.
Characteristic
Adjustment tolerance
~ ± 2 mm
Adjustment in longitudinal direction
Adjust after undoing the two central hinge fixing
bolts.
If after adjusting the central hinge, the door front
side distance (point G) is excessively narrow, ad-
just by inserting a shim washer in the section fixing
the lower catch.
Characteristic
PORTER 1.3 16V Chassis
CH - 767
