3. Clip
4. Clip
5. Clip
6. Parking brake cable unit
7. Parking brake cable unit
8. Clip
9. Nut
10. Parking brake lever unit
11. Nut
12. Clip
13. Parking brake with brake control cable unit

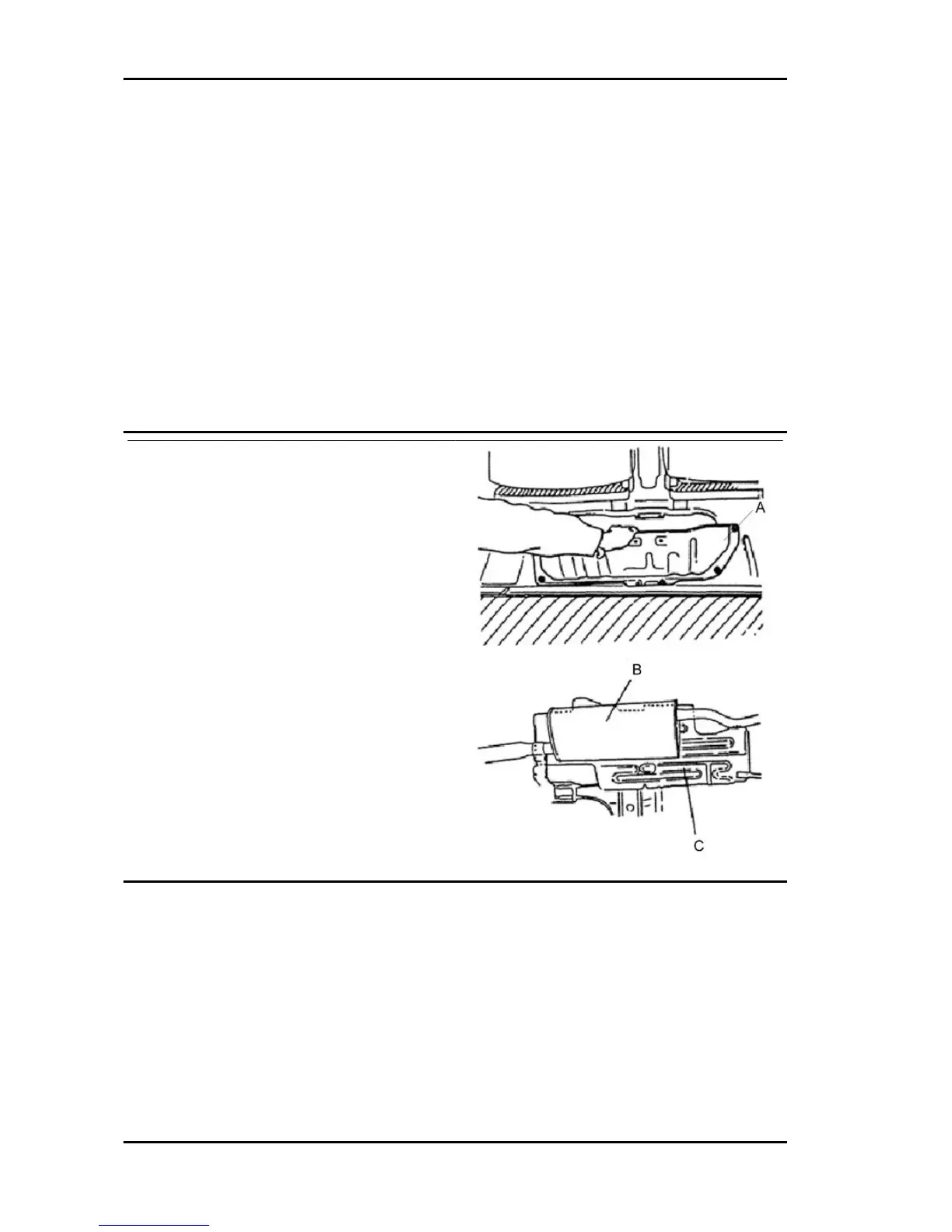

Operation before removal (van model)
•
Remove cover A from the engine in-
spection compartment.
•
Lift the front left seat.
•
Remove the rear brake drum. Discon-
nect the cable of the rear brake and the
parking brake.
•
Remove the spare wheel support and
the thermal insulator C to protect the
muffler B.
Removal (Van)
Remove the parts, following the numerical order illustrated.
Braking system PORTER 1.3 16V
BS - 638
