16 Working with the FB Editor
16.1 Basics
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.1.1.1 What is a function block?
A function block (FB) can be compared with an integrated circuit that contains a certain control logic
and provides one or several values when being executed.
• The function blocks are classified alphabetically in a "function library".
• Each function block has a unique identifier and a processing number which defines the position
at which the function block is calculated during runtime.

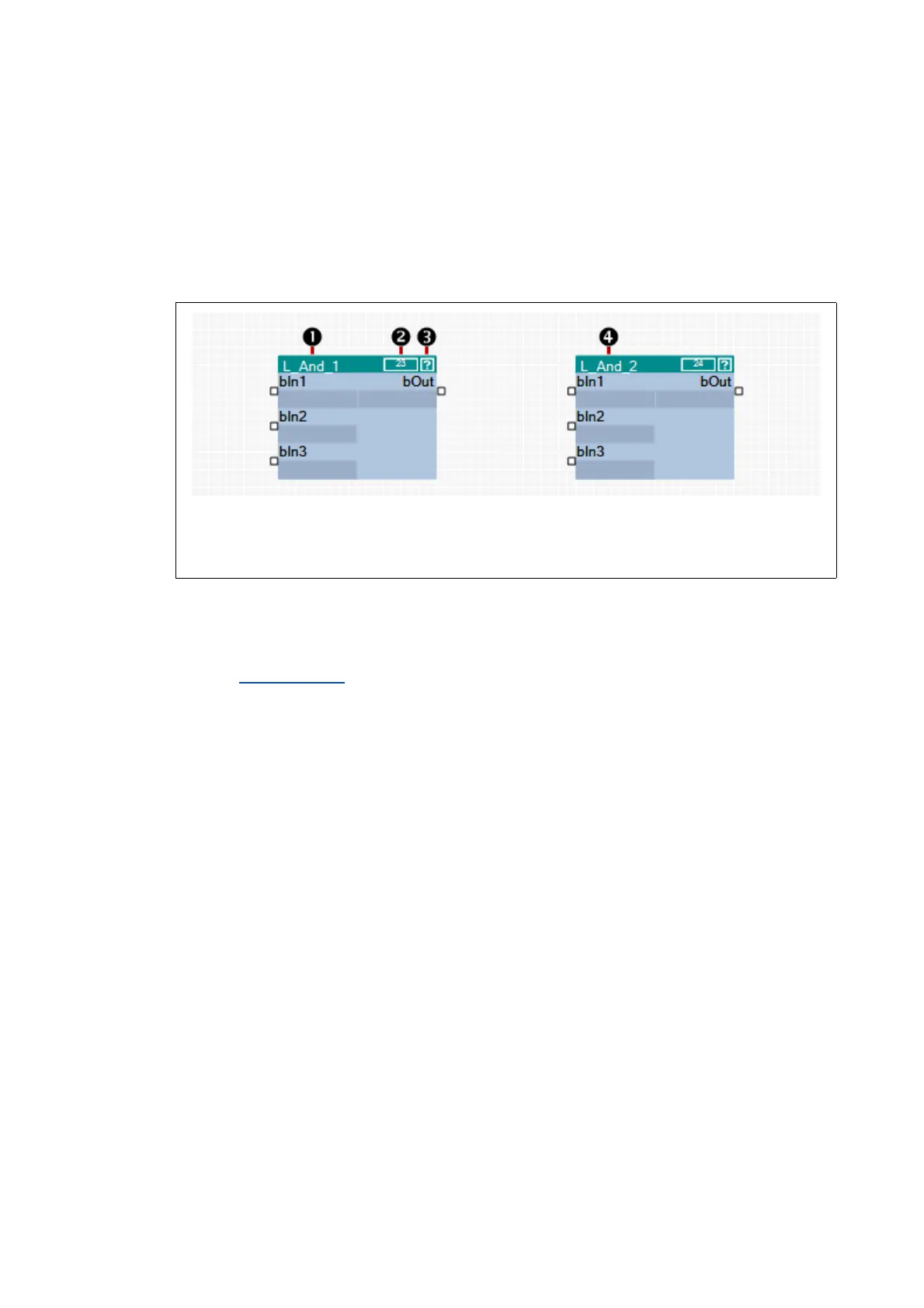

[16-2] Information on a function block in the FB Editor
 Tip!
A detailed description of all available function blocks can be found in the main chapter
"Function library
". ( 1243)
 Name of the function block
 Processing number
 Button for opening the online help for the function block
 Another available function block of the same type (numbering in ascending order)
