3 Commissioning
3.7 Commissioning of the "Actuating drive speed" technology application
62
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.7.4 Parameterise application

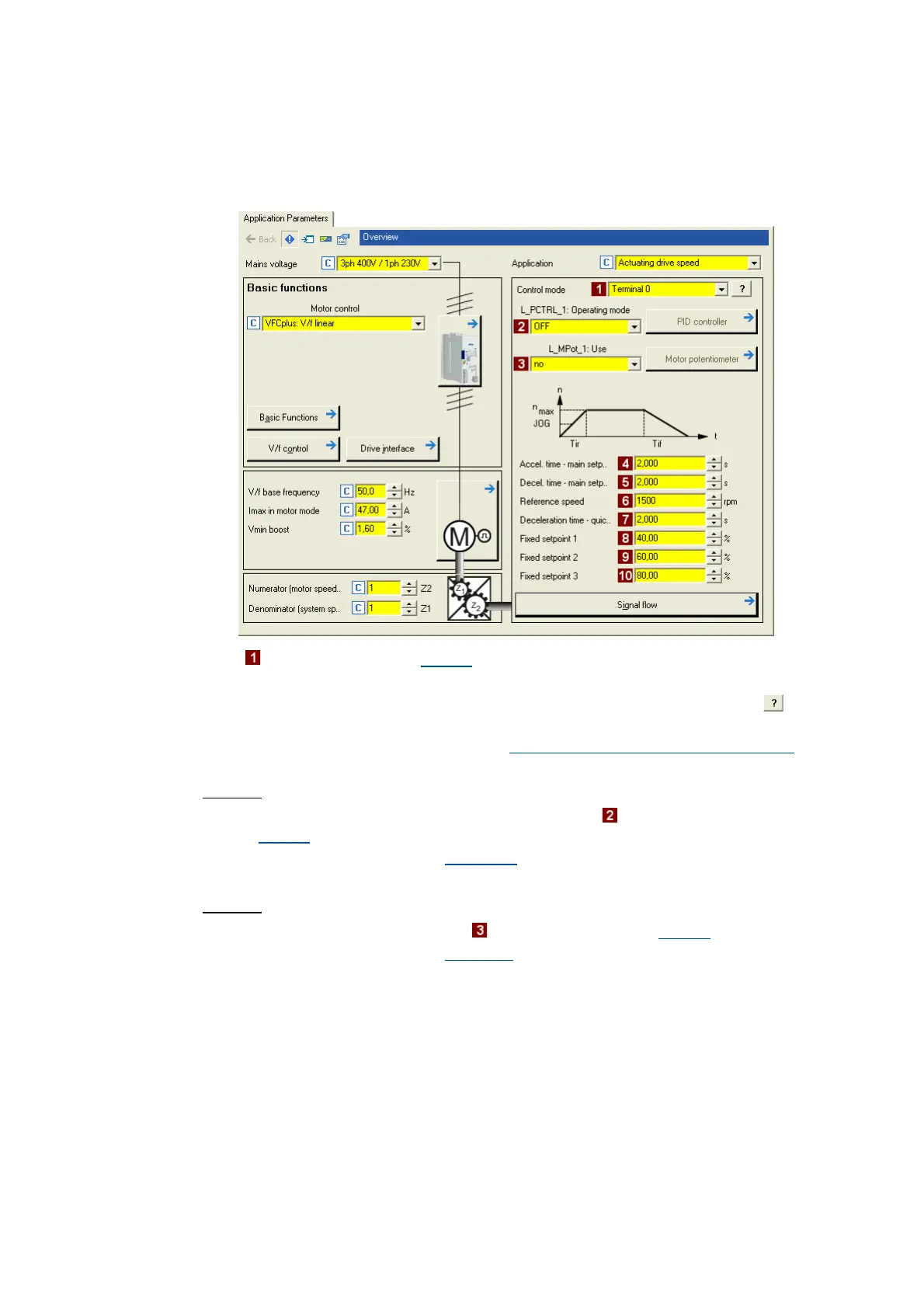

The application parameters can be found on the right side of the Application parameter tab:
1. In the Control mode list field (C00007
), select the control mode suitable for the wiring of the
terminals.
• The corresponding wiring diagram is displayed in a pop-up window if you click the button
right to the list field.
• For a detailed description, see the chapter "Terminal assignment of the control modes
".
( 385)
2. Optional
: Use process controller.
• For this purpose, select the desired operating mode in the L_PCTRL_1: Operating mode list
field (C00242
).
• For a detailed description see the L_PCTRL_1
function block. ( 1461)
• Go to the parameterisation dialog of the process controller via the Process controller button.
3. Optional
: Use motor potentiometer.
• For this purpose, select "1: On" in the L_MPot_1: Use list field (C00806
).
• For a detailed description see the L_MPot_1
function block. ( 1416)
• Go to the parameterisation dialog of the motor potentiometer via the Motor potentiometer
button.
