Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1550
17 Function library
17.2 System blocks | LS_ParFreeUnit_2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

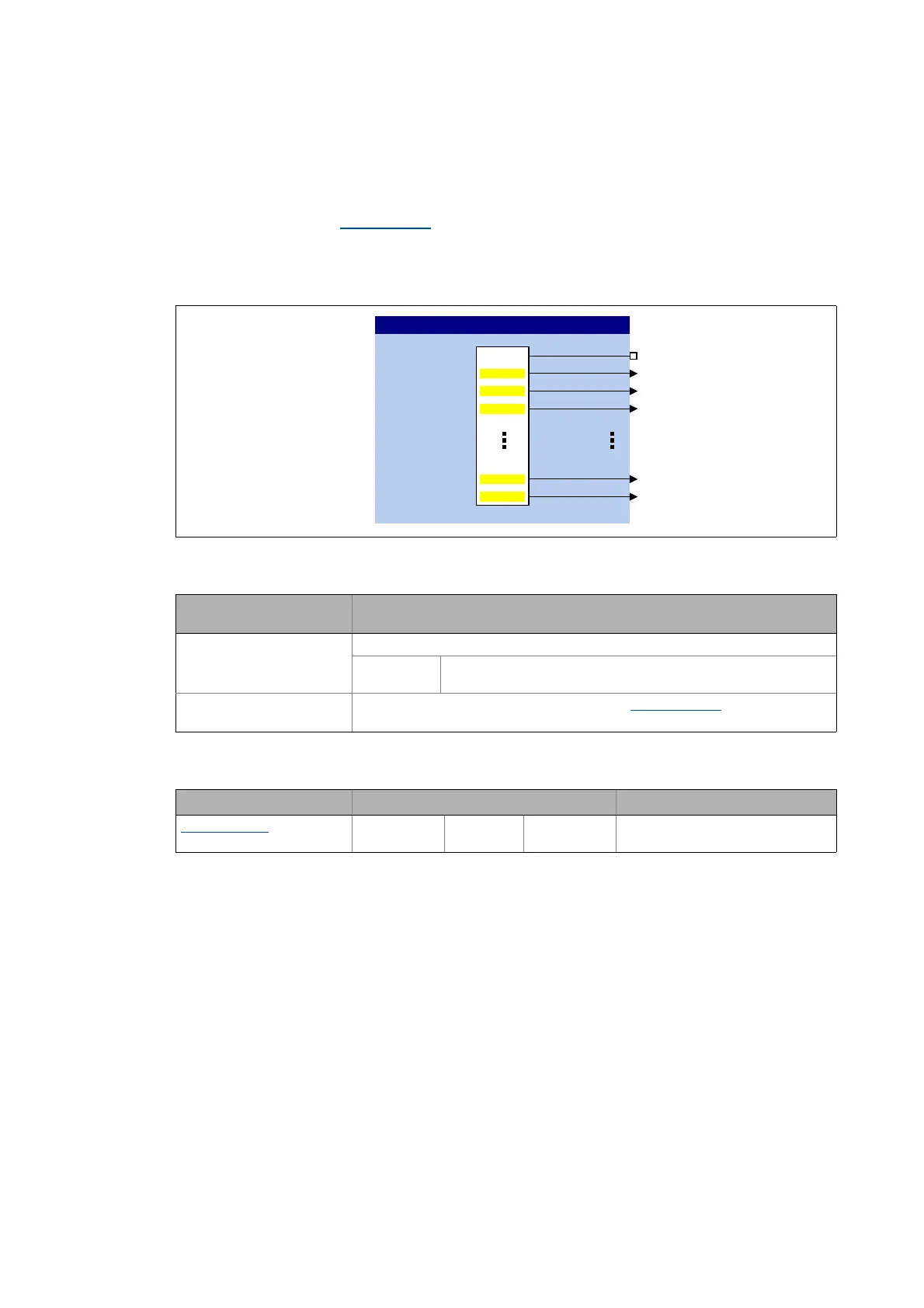

17.2.27 LS_ParFreeUnit_2
This system block outputs 16 parameterisable position signals.
• In contrast to the SB LS_ParFree_p
, the positions are set in the application unit [unit] instead of
in [increments].
•The bDataValid status signal indicates that the internal position conversion is completed and
the output data are consistent.
Outputs
Parameters
Designator
Data type
Value/meaning
bDataValid
BOOL
Status signal "Position conversion completed, data consistent"
TRUE The conversion of the positions from [unit] to [increments] is
completed.
dnC475_17 ... dnC475_32
DINT
Output of the position signals parameterised in C00475/17...32 in [increments]
•Observe bDataValid status signal!
Parameters Possible settings Info
C00475/17...32
-214748.3647 Unit 214748.3647 Setting of the position signals to be
output
GQ&B
GQ&B
GQ&B
GQ&B
GQ&B
&
&
&
&
&
/6B3DU)UHH8QLWB
E'DWD9DOLG
