Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 95
3 Commissioning
3.10 PC manual control
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.10.4 Manual jog
In the "Manual jog" mode, the drive can be traversed manually in a clockwise or anticlockwise
direction.

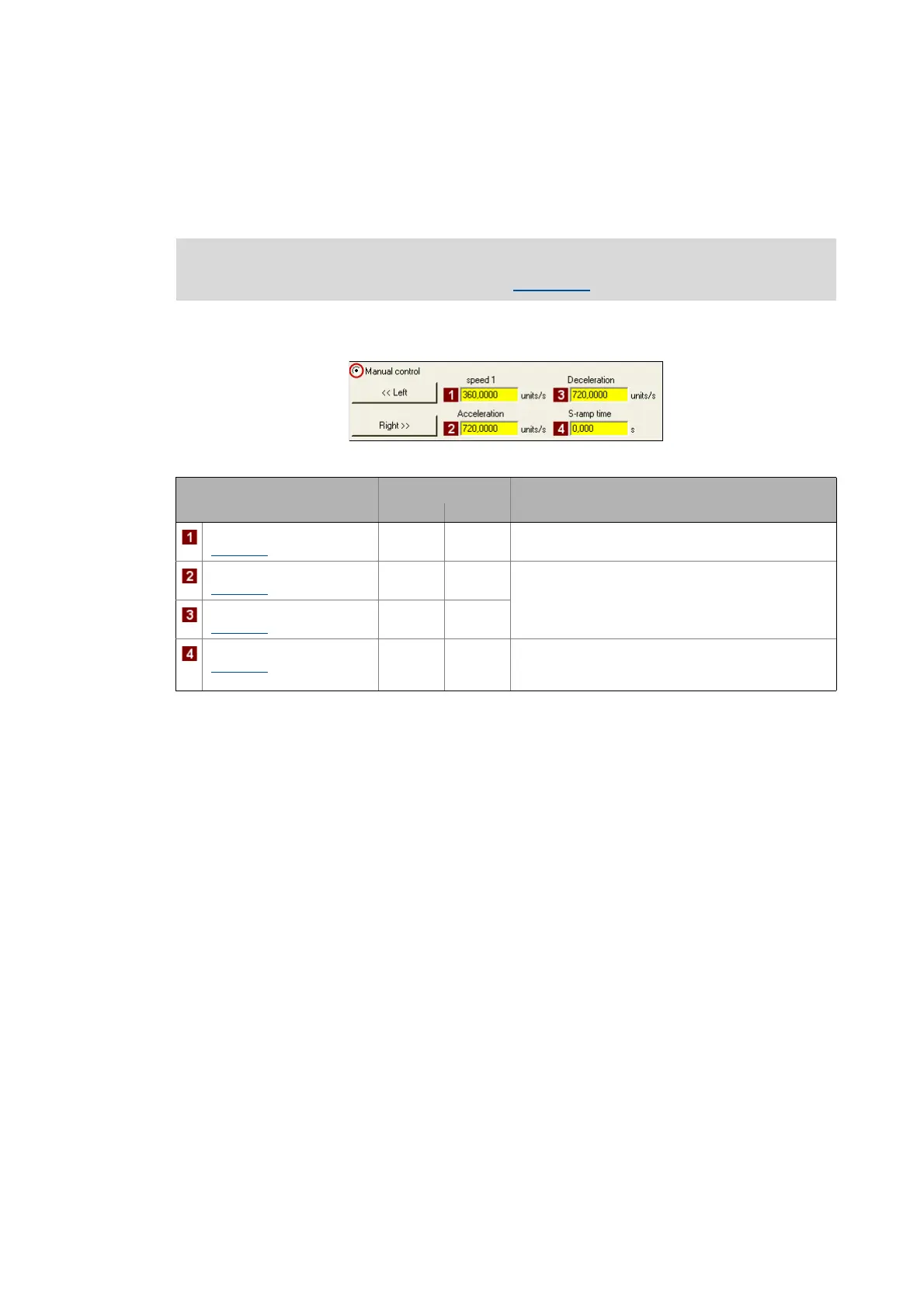

A change to the "manual jog" operating mode is made by selecting the correspondent option on the
Positioning tab:
• The profile parameters stored in the parameter set for the basic "manual jog" function are used:
 How to traverse the drive manually in inching mode:
1. If the inverter is still inhibited, enable the inverter via the Enable controller button.
• Please observe that the inverter will not be enabled if other sources of controller inhibit
(e.g. RFR terminal) are active.
If the inverter is in the "OperationEnabled" device status:
2. Press the << Left or Right >> button (and keep it pressed) to traverse the drive with the
corresponding direction of rotation.
 You can find detailed information on the "Manual jog" mode in the chapter entitled
"Basic drive functions" in the subchapter "Manual jog
". ( 573)
Parameters Lenze setting Info
Value Unit
Speed 1
(C01231/1
)
360.0000 units/s Manual jog speed
Acceleration
(C01232/1
)
720.0000 units/s
2
For accelerating and decelerating, different values can
be set so that smooth starting and quick stopping of the
drive can be implemented.
Deceleration
(C01232/2
)
720.0000 units/s
2
S-ramp time
(C01233/1
)
0.000 s In order to reduce jerking, the two ramps can be set in
such a way that they are s-shaped. This is done by
entering a relative S-ramp time.
