Lenze 8400 User Manual

3 Commissioning
3.9 Commissioning of the "Switch-off positioning" technology application
86
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.9.4 Parameterise application

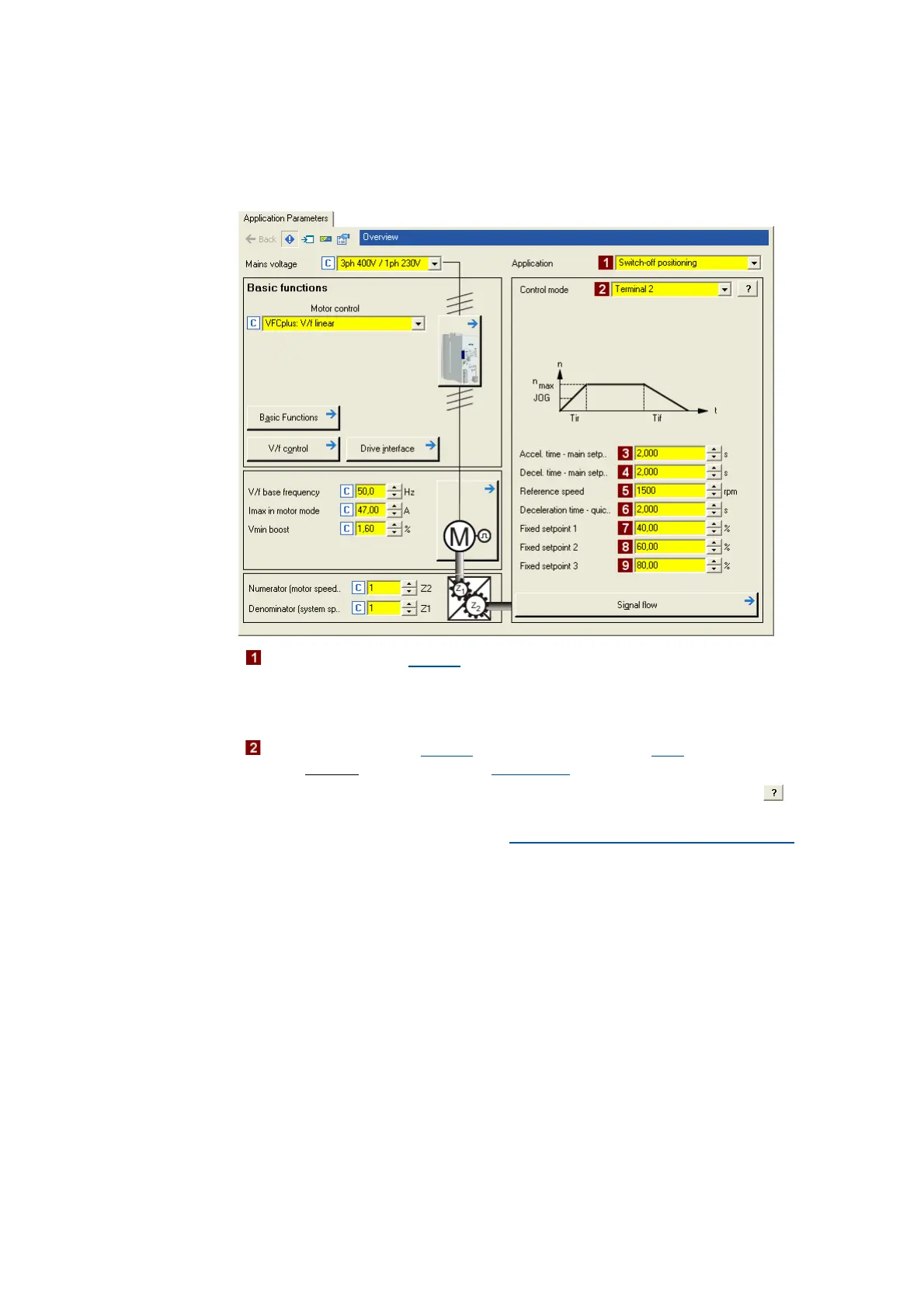

The application parameters can be found on the right side of the Application parameter tab:
1. In the Application list field (C00005
), select the "Switch-off positioning" application (if you
have not already done so while creating the project).
After the "Switch-off positioning" application is selected, the contents of the tab change, e.g.
the Process controller and Motor potentiometer buttons are not shown any more.
2. In the Control mode list field (C00007
) and in case of illustration [3-3], for the shown switch-
off positioning without
pre-switch off the "Terminals 2" control mode must be selected.
• The corresponding wiring diagram is displayed in a pop-up window if you click the button
right to the list field.
• For a detailed description, see the chapter "Terminal assignment of the control modes
".
( 385)
