Lenze 8400 User Manual

9 Diagnostics & error management
9.3 Drive diagnostics with the »Engineer«
626
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
9.3 Drive diagnostics with the »Engineer«
When an online connection to the inverter has been established, the connected inverter can be
diagnosed and relevant actual inverter states can be displayed in a clearly arranged visualisation
using the »Engineer«.

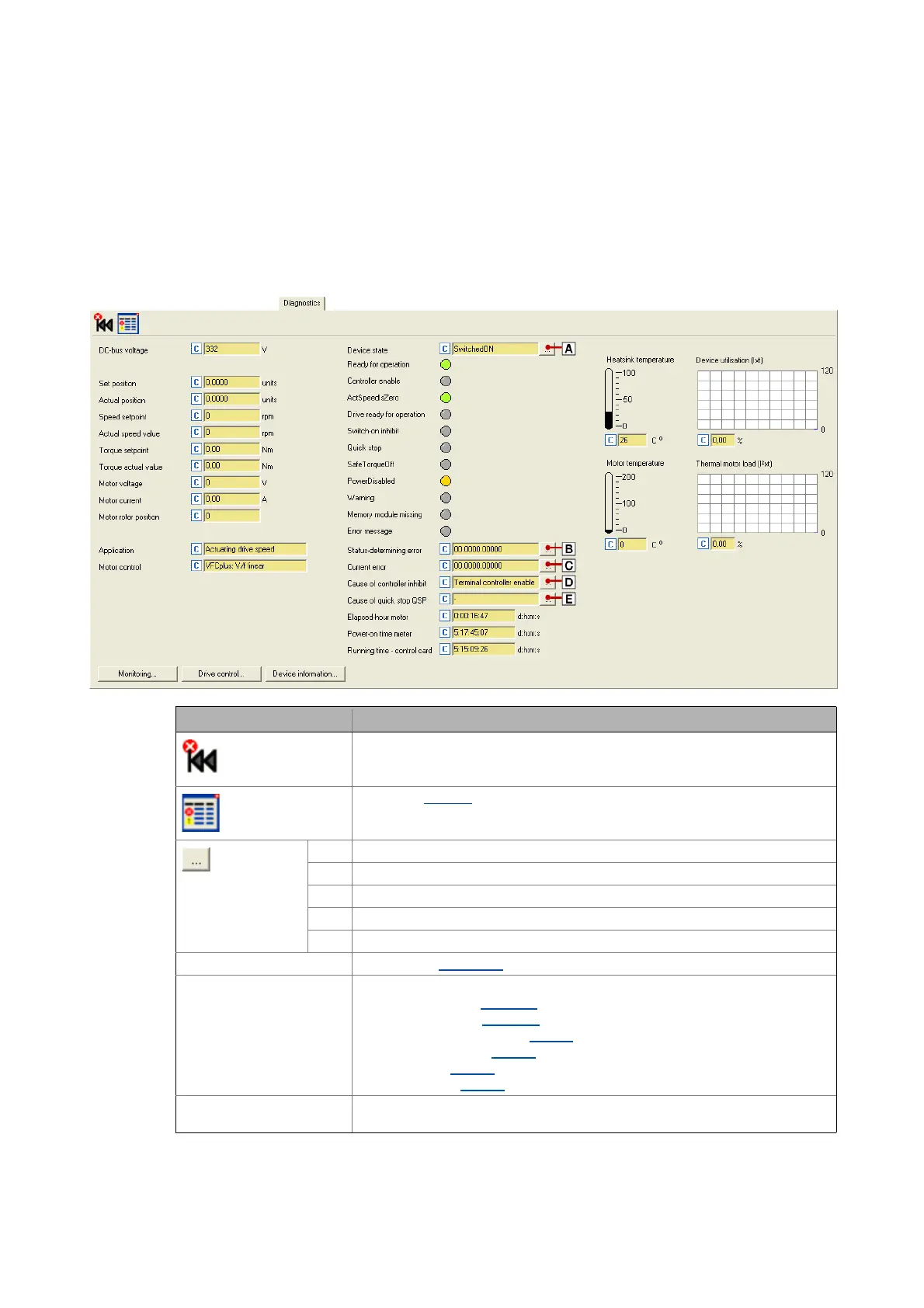

Example: Representation of the diagnostic information in the »Engineer« V2.19
Button Function
Acknowledge error message (if the error cause has been eliminated).
Display the Logbook
of the inverter. ( 632)
 Display the internal state machine including the current device status.
 Display details of the status determining error.
 Display details of the current error.
 Display all active sources of a controller inhibit.
 Display all active sources of a quick stop.
Monitoring... Configure the Monitoring
. ( 640)
Drive control... Display the bit assignment of the following control-related words:
• MCI control word (C00136/1
)
• CAN control word (C00136/2
)
• Cause of controller inhibit (C00158
)
• Cause of quick stop (C00159
)
•Status word (C00150
)
•Status word 2 (C00155
)
Device information... Display identification data, e.g. firmware information or serial number of individual
inverter components.
