Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1368
17 Function library
17.1 Function blocks | L_DigitalDelay_2
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

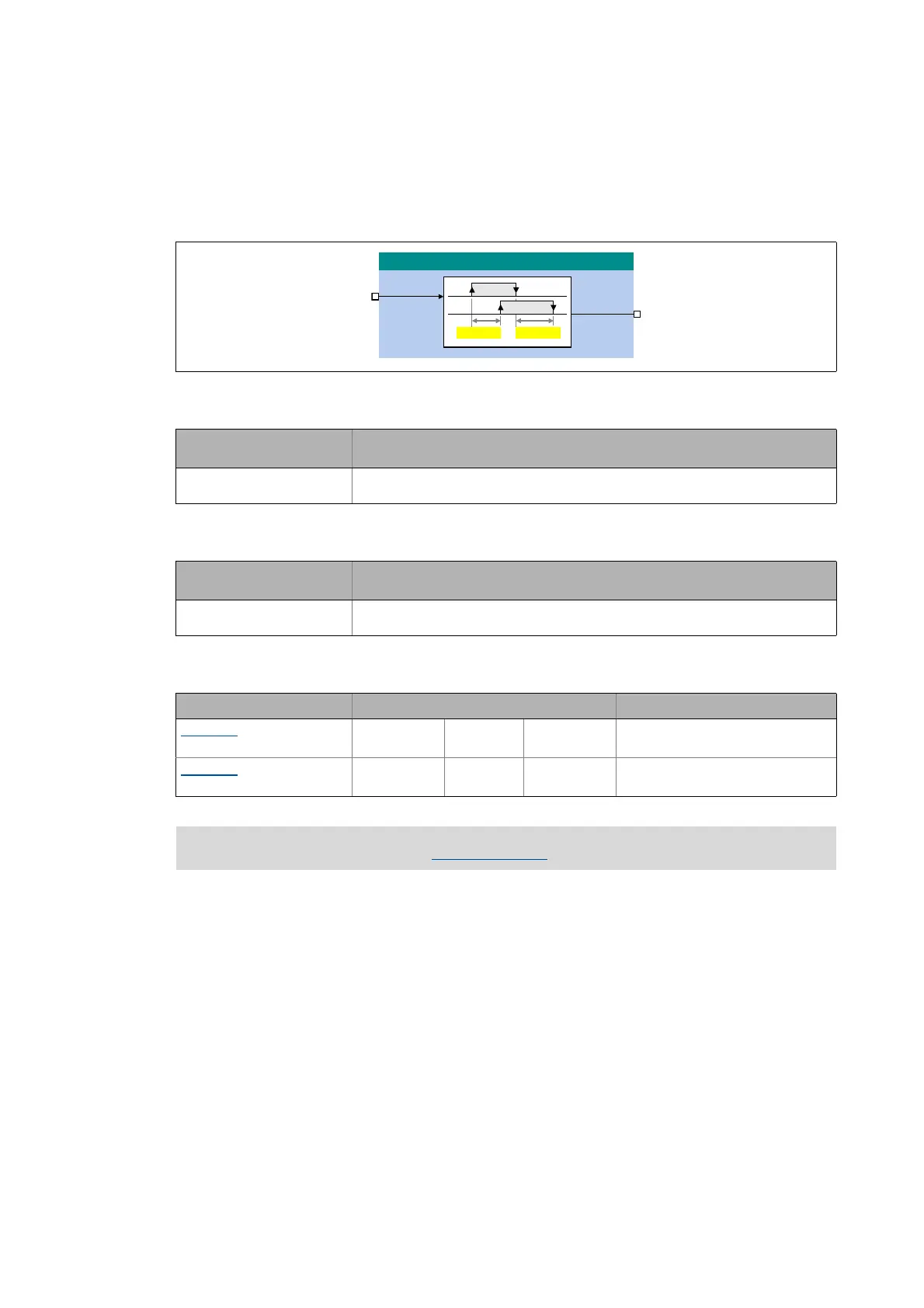

17.1.75 L_DigitalDelay_2
This FB applies a time delay to binary signals.
• ON and OFF-deceleration can be parameterised separately.
Inputs
Outputs
Parameters
Designator
Data type
Information/possible settings
bIn
BOOL
Input signal
Designator
Data type
Value/meaning
bOut
BOOL
Output signal (time-delayed input signal)
Parameters Possible settings Info
C00721/1
0.000 s 3600.000 ON-deceleration
• Lenze setting: 0.000 s
C00721/2
0.000 s 3600.000 OFF-deceleration
• Lenze setting: 0.000 s
 For a detailed description see L_DigitalDelay_1.
/B'LJLWDO'HOD\B
E,Q
E2XW
& &
,Q
2XW
