7 Technology applications
7.2 TA "Actuating drive speed"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.2.1 Basic signal flow

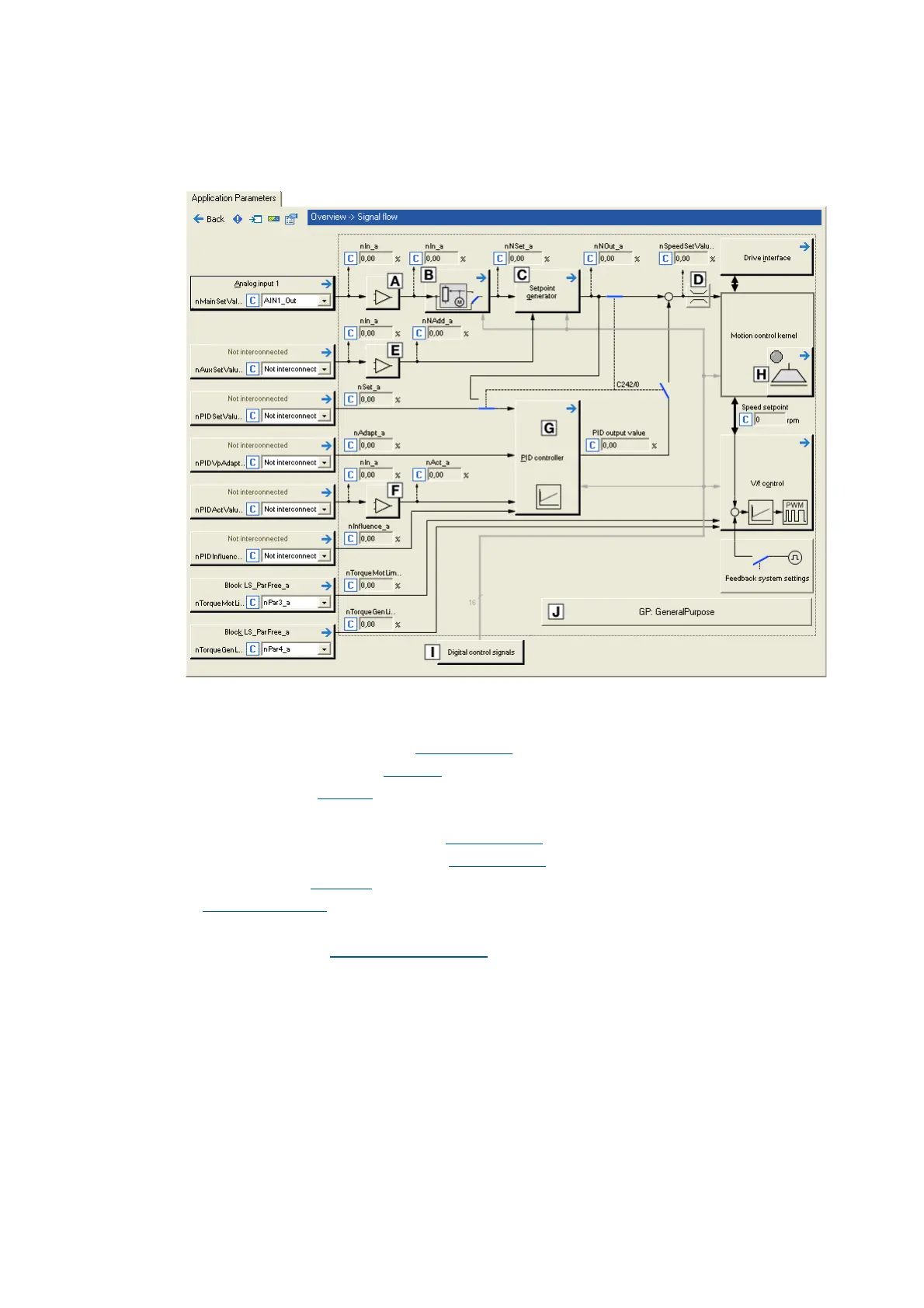

[7-1] Signal flow of the technology application "Actuating drive speed"
 Main speed setpoint offset and gain (L_OffsetGainP_1)
 Motor potentiometer function (L_MPot_1)
 Setpoint generator (L_NSet_1
)
 Speed setpoint input limitation
 Additional speed setpoint offset and gain (L_OffsetGainP_2
)
 Actual speed/sensor value offset and gain (L_OffsetGainP_3
)
 Process controller (L_PCTRL_1
)
 Holding brake control
 Terminal assignment & display of digital control signals
 Integrated disposable "GeneralPurpose" functions
: Analog switch, arithmetic, multiplication/division, binary
delay element, binary logic, analog comparison, D-flipflop
