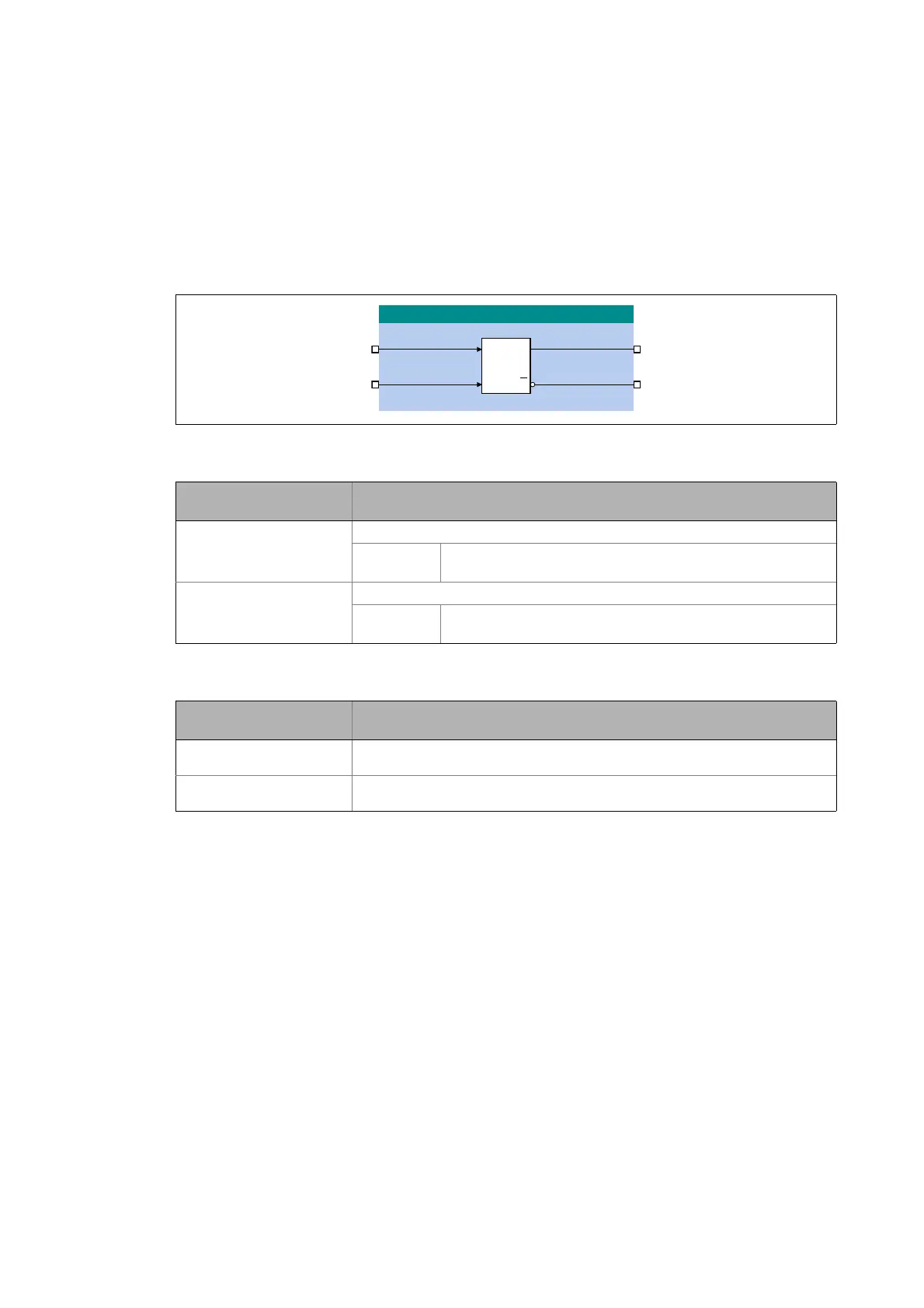

17.1.149 L_RSFlipFlop_2
The functionality of this FB corresponds to that of an RS flipflop:
•An input signal at bSet serves to set the bOut output permanently.
•An input signal at bReset serves to reset the output.
• Additional, inverted output bNegOut
Inputs
Outputs
Designator
Data type
Information/possible settings
bSet
BOOL
Setting input
TRUE • The bOut output is set to TRUE.
•The bNegOut output is set to FALSE.
bReset
BOOL
Reset input
TRUE • The bOut output is set to FALSE.
•The bNegOut output is set to TRUE.
Designator
Data type
Value/meaning
bOut
BOOL
Output signal
bNegOut
BOOL
Output signal, inverted
/B56)OLS)ORSB
E5HVHW
E6HW
5
6
E2XW
E1HJ2XW
4
4
