6 I/O terminals
6.1 Digital input terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

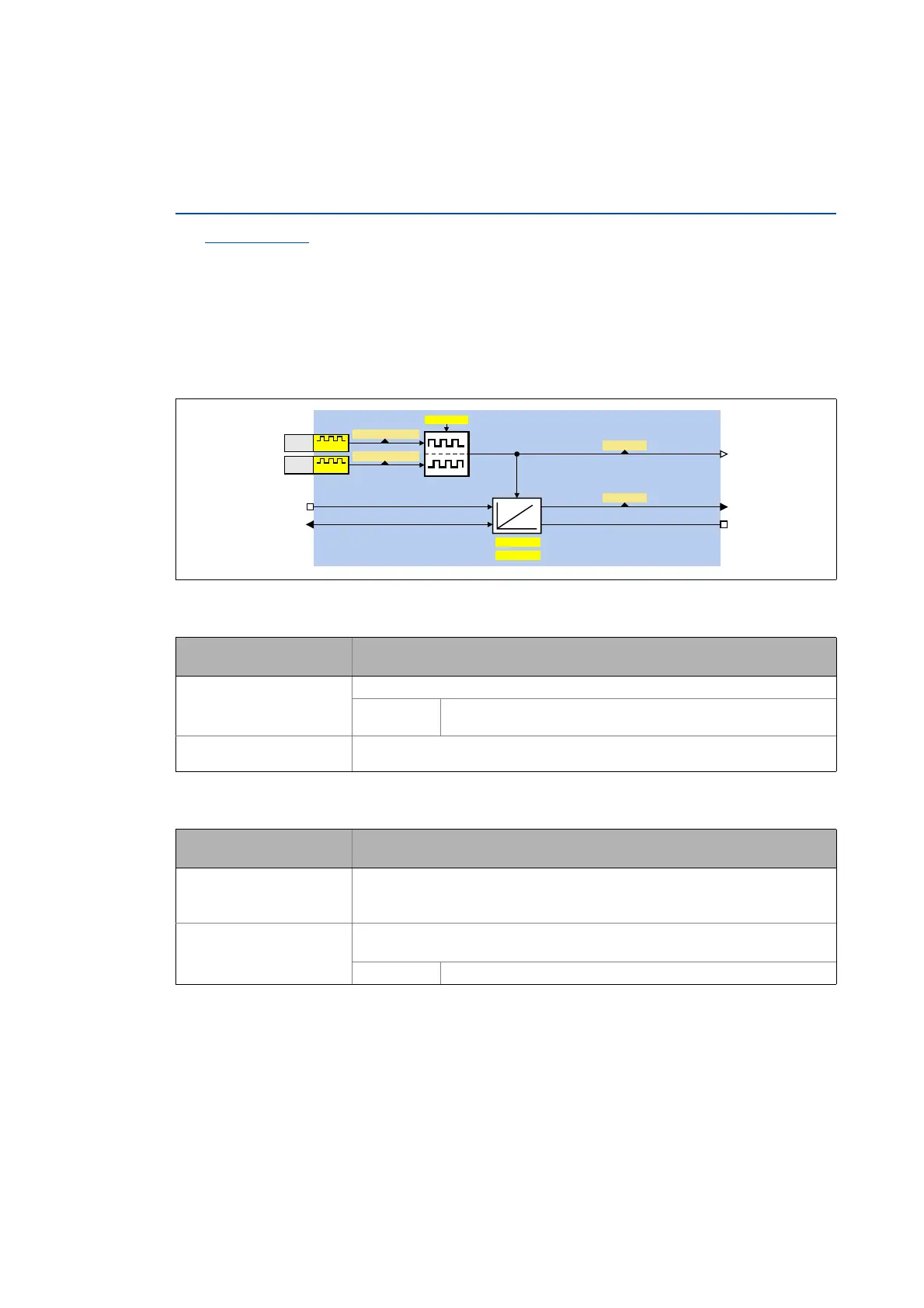

6.1.2.1 Output of the encoder position of the DI1/DI2 frequency input
This function extension is available from version 06.00.00!
The LS_DigitalInput
system block has been extended by the integrator function for providing the
encoder position.
• The integrator can take max. ±32000 encoder revolutions.
• The starting position can be loaded via inputs.
• The internal function can be set via parameters.
• In addition to the encoder position, the "Overflow occurred/distance processed" status signal is
provided.
Inputs
Outputs
Designator
DIS code | data type
Information/possible settings
bPosIn12_Load
BOOL
Load angle integrator with starting value and reset status signal
TRUE Angle integrator is loaded with the value at dnPosIn12_Set_p and
bPosIn12_State is reset to FALSE.
dnPosIn12_Set_p
DINT
Starting value for angle integrator
Designator
DIS code | data type
Value/meaning
dnPosIn12_p
DINT
Angle output signal
• 65536 [incr.] ≡ 1 encoder revolution
• Overflow is possible (display via bPosIn12_State)
bPosIn12_State
BOOL
Status signal "Overflow occurred/distance processed"
• Status signal can be reset via bPosIn12_Load.
TRUE Overflow has occurred or distance is processed.
Q)UHT,QBY
GQ3RV,QBS
&
& &RPSDUHYDOXH
)XQFWLRQ
E3RV,QB6WDWH
E3RV,QB/RDG
GQ3RV,QB6HWBS
&
',
',
N+]
N+]
&%LW
&%LW
&
&
