Lenze 8400 User Manual

17 Function library
17.2 System blocks | LS_DisFree_b
1535
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

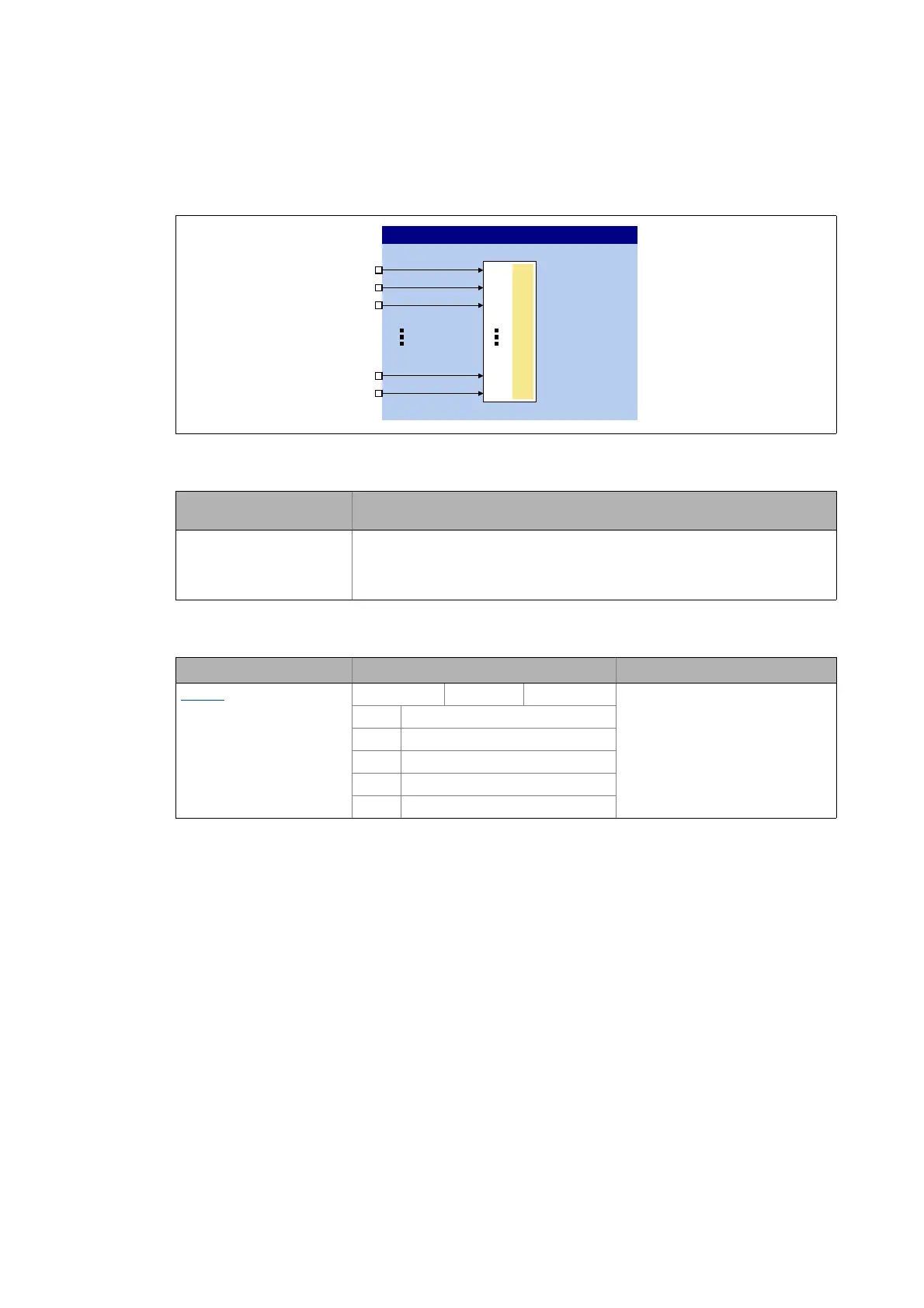

17.2.10 LS_DisFree_b
This system block displays 16 arbitrary digital signals of the application on a bit coded display code.
Inputs
Parameters
Designator
Data type
Information/possible settings
bDis1 ... bDis16
BOOL
From version 11.00.00 onwards:
bC480_B0 ... bC480_B16
Inputs for arbitrary digital signals of the application
Note: From version 11.00.00 the inputs are named according to the display
parameter for an easier allocation.
Parameters Possible settings Info
C00480
0x0000 0xFFFF Display of the digital signals as
hexadecimal values which are
applied at the bDis1 ... bDis16 inputs
Bit 0 Signal level at the bDis1 input
Bit 1 Signal level at the bDis2 input
Bit 2 Signal level at the bDis3 input
... ...
Bit 15 Signal level at the bDis16 input
E'LV
E'LV
E'LV
E'LV
E'LV
&
/6B'LV)UHHBE
%LW
%LW
%LW
%LW
%LW
