8.4.3 Limit position monitoring
8.4.3.1 Software limit positions
The parameterisable limit positions serve to limit the traversing range by the software.
• The positive software limit position is set in C01229/1
and the negative software limit position
is set in C01229/2
.
Evaluation and monitoring of the software limit positions are only carried out if
• C01229/1
- C01229/2 > 32767
• no modulo measuring system is set (C01201/1
= 0.0000 units)
• the drive knows the home position, and the software limit positions for the respective operating
mode have been activated (see following table)!

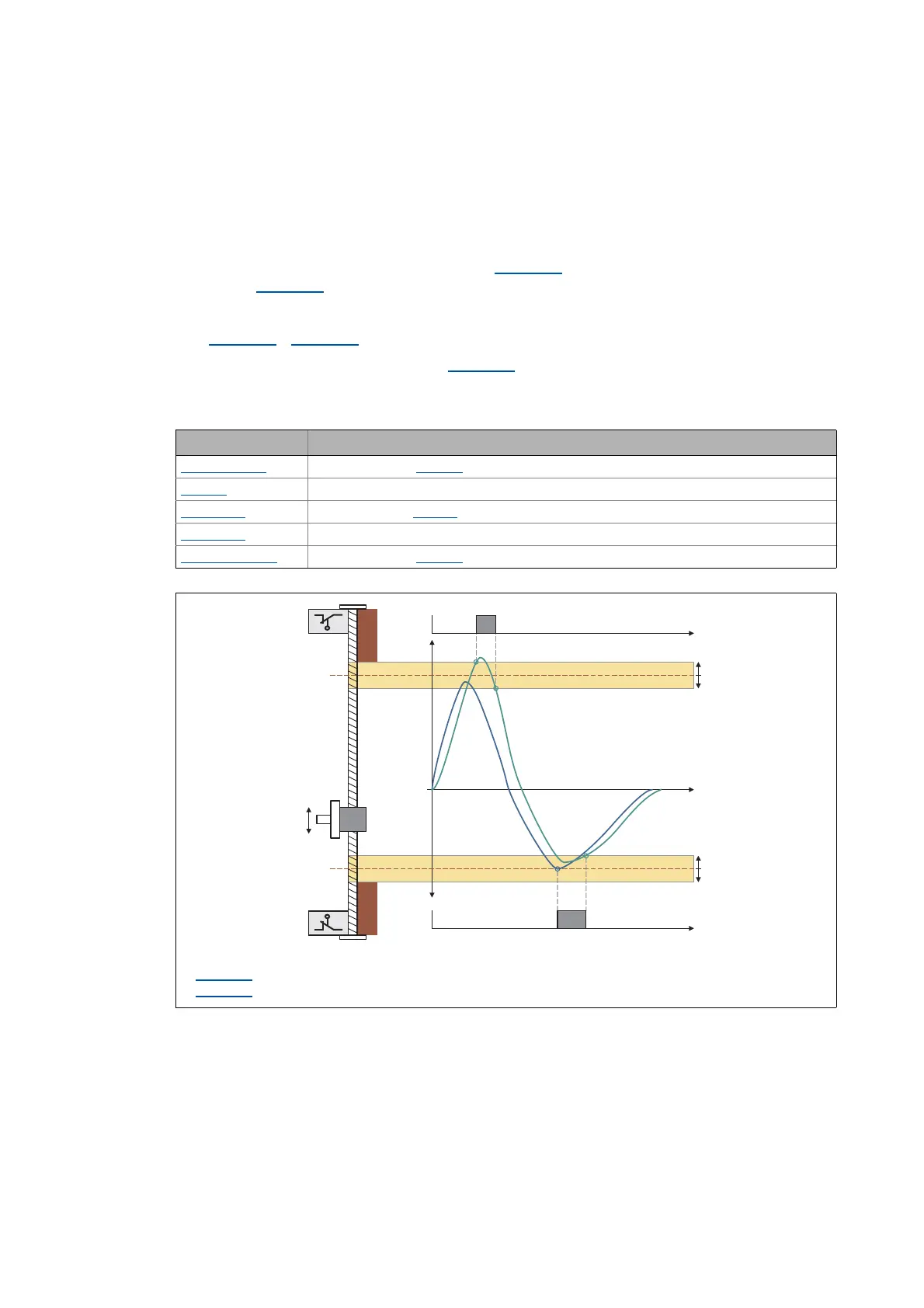

[8-16] Definition of the software limit position trigger limits
Operating mode Software limit positions active (if home position is known)
Speed follower Yes (adjustable in C01219 - bit 3)
Homing
Yes
Manual jog
No (adjustable in C01230 - bit 3)
Positioning
Yes
Position follower
Yes (adjustable in C01218 - bit 3)
 Error range (actual position)  Set position  Actual position
 C01229/1
: Positive software limit position
 C01229/2
: Negative software limit position
0

C01229/1

C01229/2
wMotionState1 - Bit 14: Pos. SW-Limit Detected
wMotionState1 - Bit 15: Neg. SW-Limit Detected
SetPos 1 2 ActPos
t
t
t
0
0
Position
(absolute)
+32767 Incr.
-32767 Incr.
+32767 Incr.
-32767 Incr.
