11 System bus "CAN on board"
11.8 Process data transfer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
11.8.1.1 RPDO1 | Port block "LP_CanIn1"

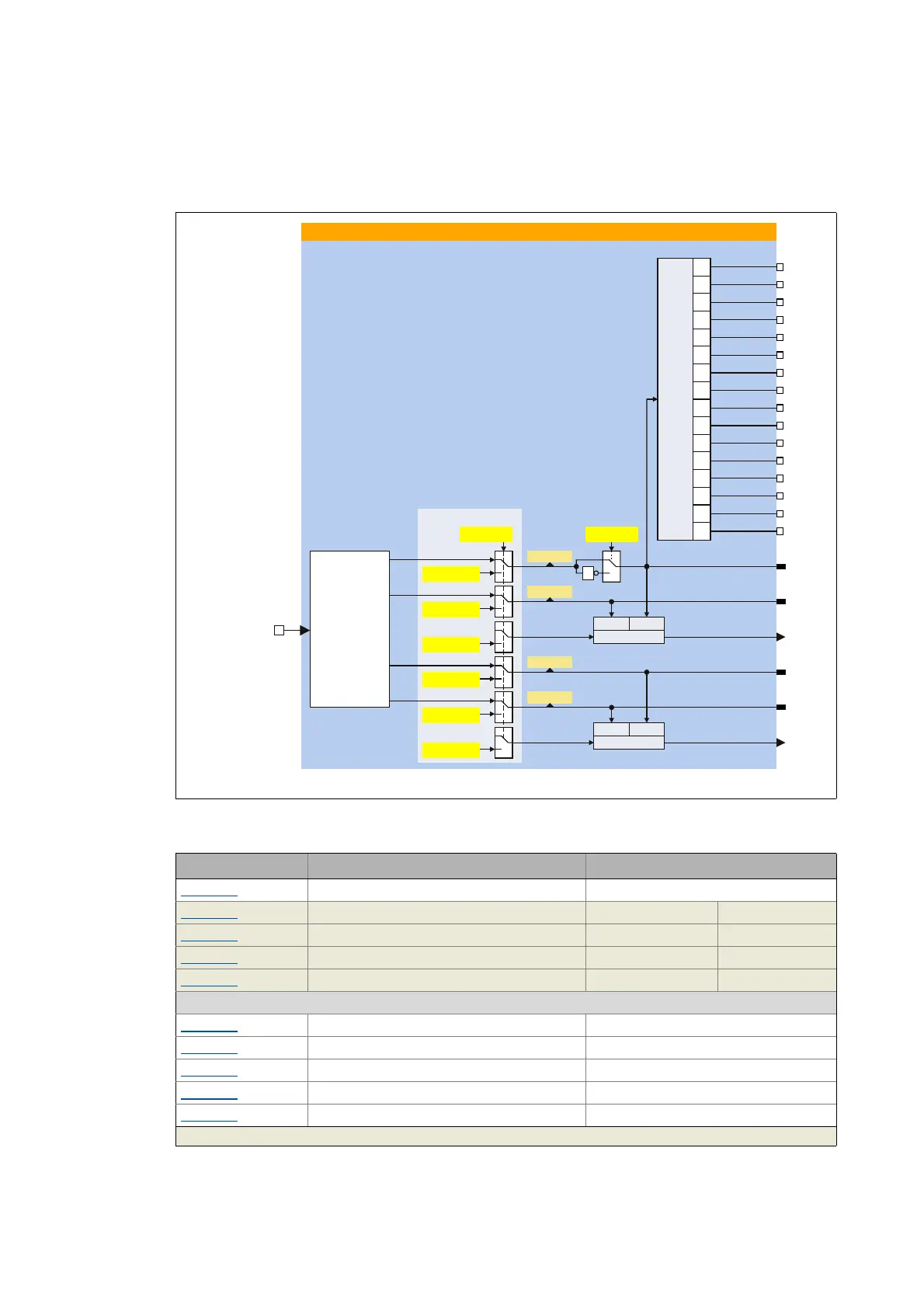

The LP_CanIn1 port block maps process data object RPDO1 in the FB Editor.
Short overview of the parameters for LP_CanIn1:
dnIn12_p output is available from version 11.00.00!
Parameters Info Lenze setting
C00401/1
LP_CanIn1: Inversion bCtrl1_B0..15 0x0000
C00866/1 LP_CanIn1: wCtrl -
C00866/2 LP_CanIn1: wIn2 -
C00866/3 LP_CanIn1: wIn3 -
C00866/4 LP_CanIn1: wIn4 -
PDO mapping
C00408/1
LP_CanIn1: Mapping selection CanIn
C00409/1
LP_CanIn1: wCtrl MapVal 0
C00409/2
LP_CanIn1: wIn2 MapVal 0
C00409/3
LP_CanIn1: wIn3 MapVal 0
C00409/4
LP_CanIn1: wIn4 MapVal 0
Greyed out = display parameter
